ASSEMBLE THE MODEL

Install the Landing Gear

❏

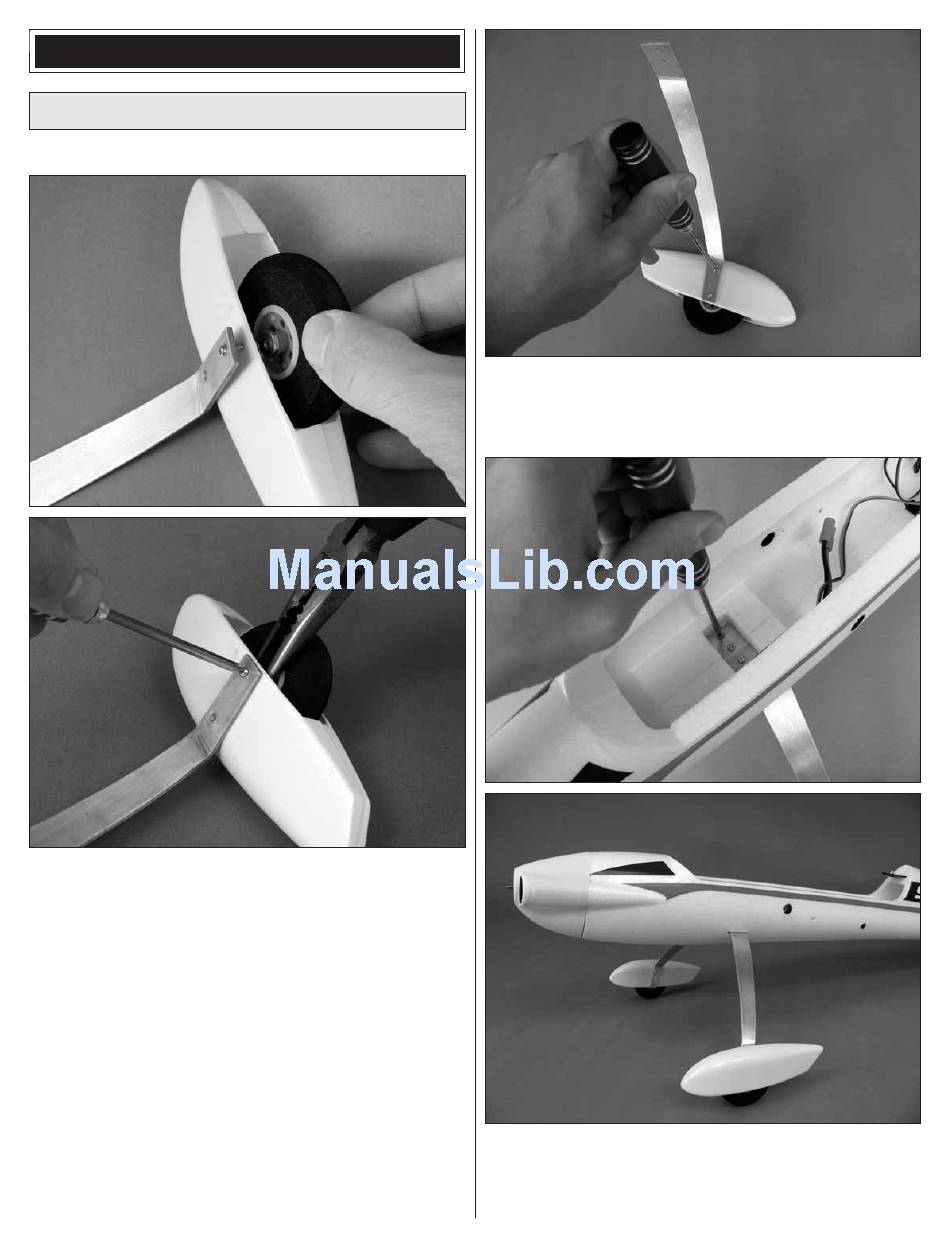

1. Thread a 2×12mm machine screw through the bottom
hole of the landing gear leg and into the bottom hole of the
wheel pant. Insert the wheel into the wheel pant with the
hexagonal part of the axle to the inside of the pant. Thread
the 2×12mm screw into the axle and securely tighten it, but
take care not to over-tighten the screws. There are left
and right wheel pants and left and right landing gear legs.
Assemble the gear according to the photos.
❏
2. Install a 2.5×6mm self-tapping screw into the remaining
holes in the pants and securely tighten them.
❏
3. Fit the landing gear legs into the fuselage. Securely
tighten the four 3×8mm machine screws through the landing
gear legs and into the plywood landing gear mounting plate.
