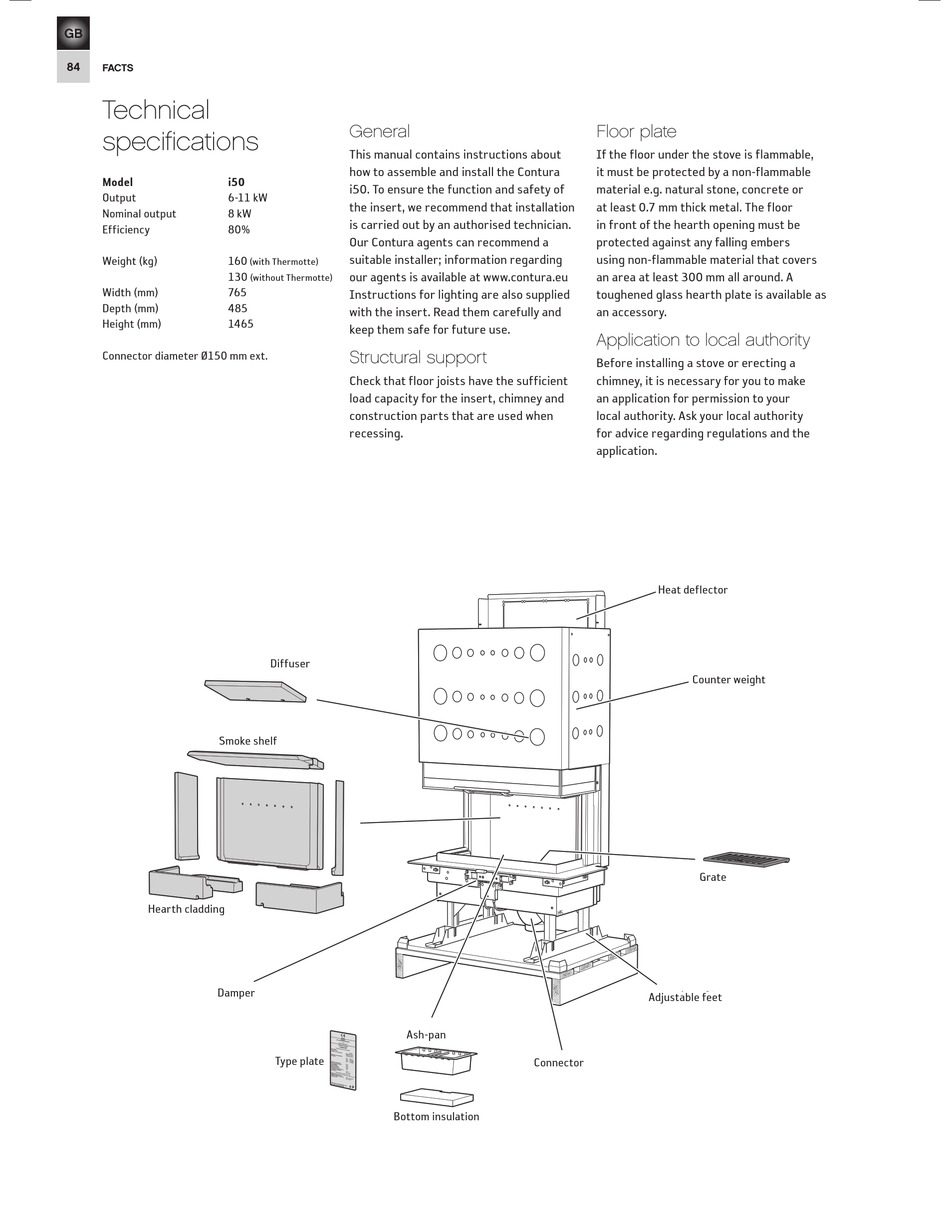

Technical Specifications - Contura C i50 Installation Instruction

GB
84
FACTS
Technical
specifications
Model
Output
Nominal output
Efficiency
Weight (kg)
Width (mm)
Depth (mm)
Height (mm)
Connector diameter Ø150 mm ext.
Smoke shelf
Hearth cladding
Eldstadsbeklädnad
Damper
General
This manual contains instructions about
how to assemble and install the Contura
i50
i50. To ensure the function and safety of
6-11 kW
the insert, we recommend that installation
8 kW
is carried out by an authorised technician.
80%
Our Contura agents can recommend a
suitable installer; information regarding
160
(with Thermotte)
our agents is available at www.contura.eu
130
(without Thermotte)
765
Instructions for lighting are also supplied
485
with the insert. Read them carefully and
1465
keep them safe for future use.
Structural support
Check that floor joists have the sufficient
load capacity for the insert, chimney and
construction parts that are used when
recessing.
Diffuser
Diffusor
Rökhylla
Spjäll
Typskylt
Type plate
Asklåda
Ash-pan
Connector
Anslutningsstos
Bottenisolering
Bottom insulation
Floor plate
If the floor under the stove is flammable,
it must be protected by a non-flammable
material e.g. natural stone, concrete or
at least 0.7 mm thick metal. The floor
in front of the hearth opening must be
protected against any falling embers
using non-flammable material that covers
an area at least 300 mm all around. A
toughened glass hearth plate is available as
an accessory.
Application to local authority
Before installing a stove or erecting a
chimney, it is necessary for you to make
an application for permission to your
local authority. Ask your local authority
for advice regarding regulations and the
application.
Heat deflector Strålningsplåt
Counter weight Motvikt
Roster
Grate
Justerbara fötter
Adjustable feet
