User Manual for Cellswitch 100

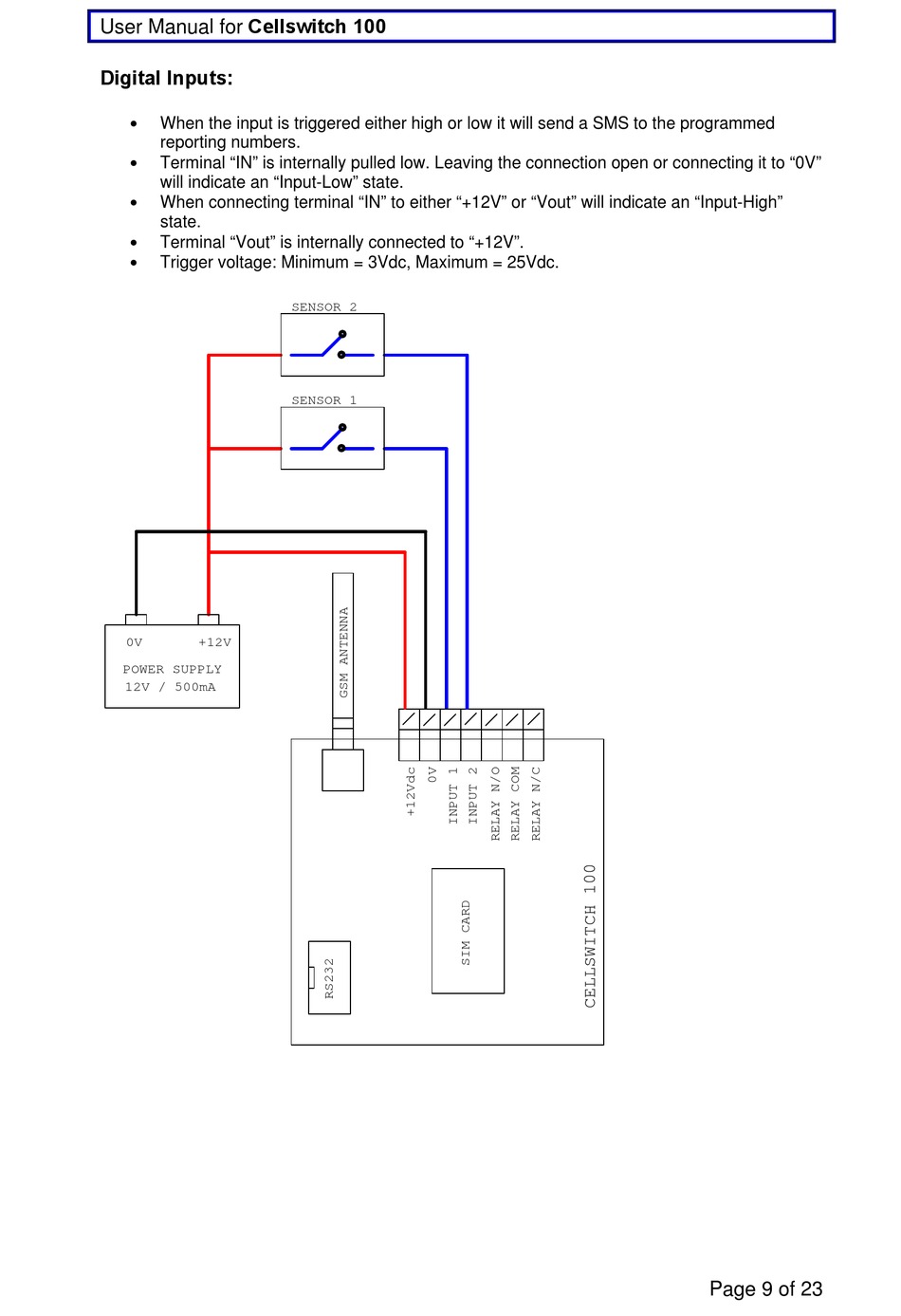

Digital Inputs:

When the input is triggered either high or low it will send a SMS to the programmed
reporting numbers.

Terminal "IN" is internally pulled low. Leaving the connection open or connecting it to "0V"
will indicate an "Input-Low" state.

When connecting terminal "IN" to either "+12V" or "Vout" will indicate an "Input-High"
state.

Terminal "Vout" is internally connected to "+12V".

Trigger voltage: Minimum = 3Vdc, Maximum = 25Vdc.
