BodyCraft MINI-XPress 7351 Instruction Manual

Strength training system
Hide thumbs

Advertisement

Quick Links

Download this manual
X

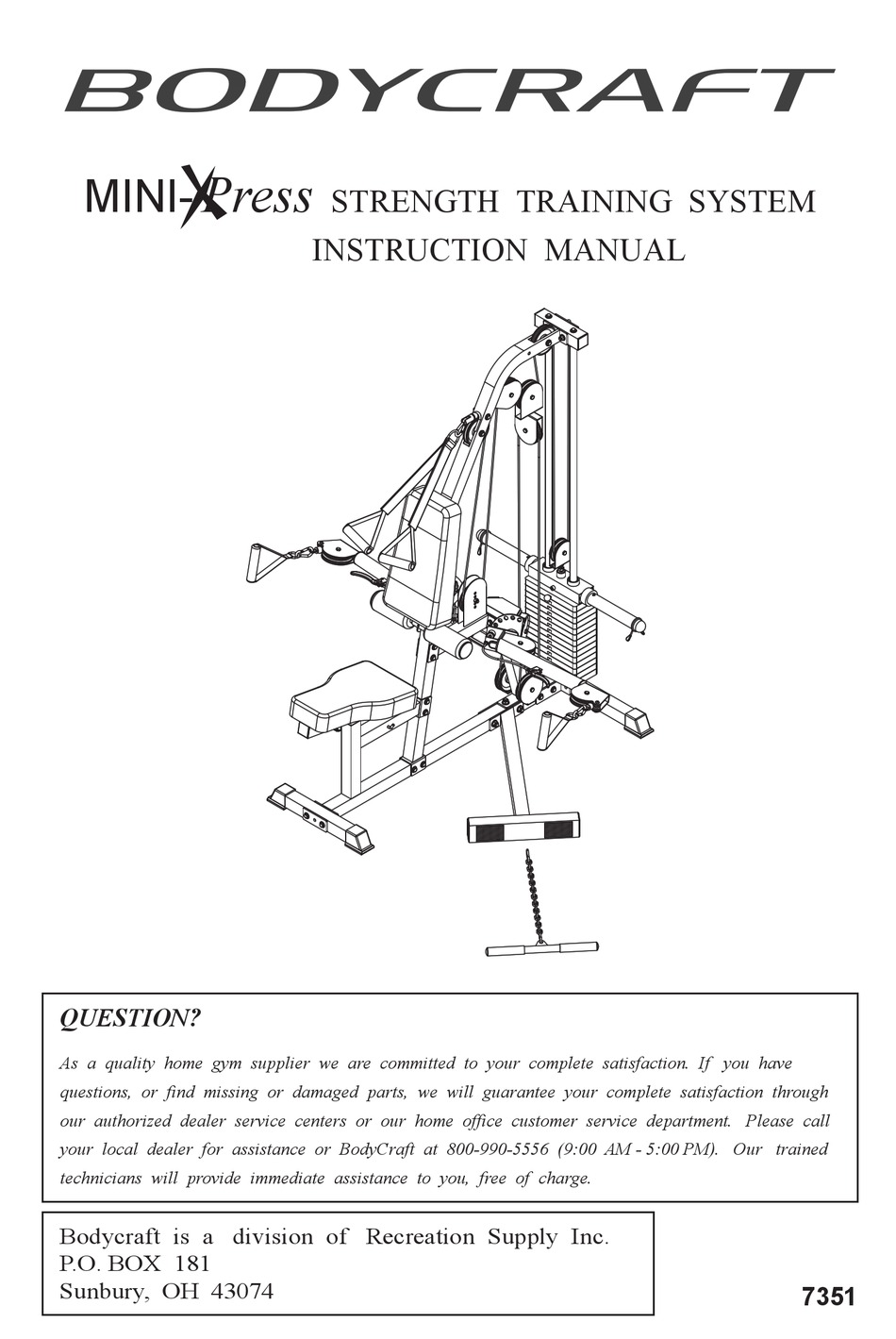

Press
MINI-
STRENGTH TRAINING SYSTEM
INSTRUCTION MANUAL
QUESTION?
As a quality home gym supplier we are committed to your complete satisfaction. If you have
questions, or find missing or damaged parts, we will guarantee your complete satisfaction through
our authorized dealer service centers or our home office customer service department. Please call
your local dealer for assistance or BodyCraft at 800-990-5556 (9:00 AM - 5:00 PM). Our trained
technicians will provide immediate assistance to you, free of charge.
Bodycraft is a division of Recreation Supply Inc.
P.O. BOX 181
Sunbury, OH 43074
7351

Advertisement

loading
Need help?

Need help?

Do you have a question about the MINI-XPress 7351 and is the answer not in the manual?

Questions and answers

Tim Horyza
June 25, 2025

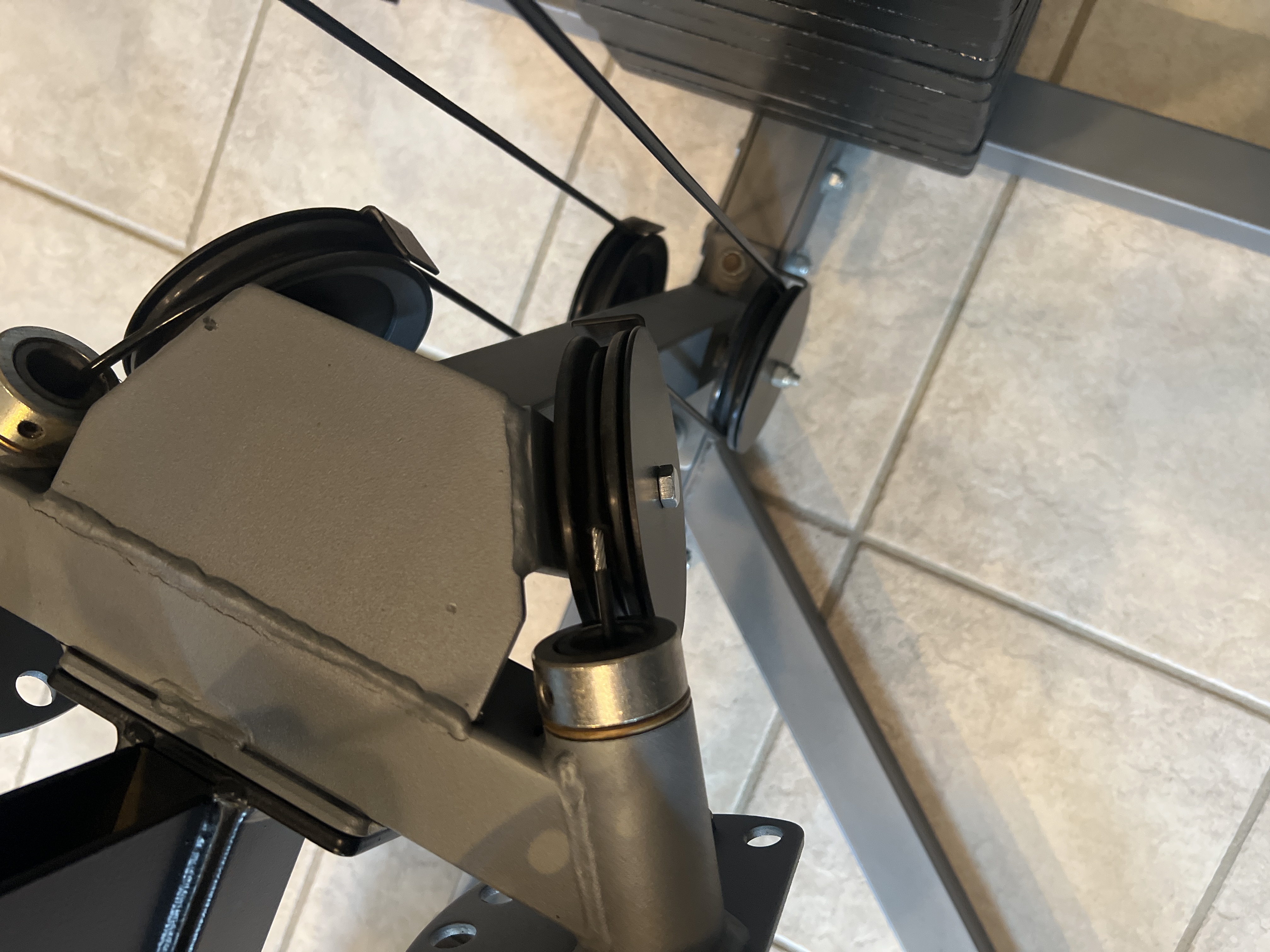

I have the bodycraft mini express. It is about 10 years old. What cable size, part number, do I need to replace the cable that goes from one extension arm to the other. The arms are used for doing flys and benching movements. Thank you

User image 685c383a84487
0

Related Manuals for BodyCraft MINI-XPress 7351

Summary of Contents for BodyCraft MINI-XPress 7351

  • Page 1 Please call your local dealer for assistance or BodyCraft at 800-990-5556 (9:00 AM - 5:00 PM). Our trained technicians will provide immediate assistance to you, free of charge.

  • Page 2: Before You Begin

    BEFORE YOU BEGIN Press Congratulations and thank you for selecting the MINI- strength training Press system. The MINI- offers an impressive array of strength training exercises to develop every major muscle group of the body. Whether your goal is cardiovascular fitness, a shapely, toned body or dramatic muscle size and Press strength, the MINI- will help you achieve the specific results you want.
  • Page 3 OVERVIEW 68 64...

  • Page 4: Parts List

    PARTS LIST NO. DESCRIPTION QTY. BASE FRAME REAR STABILIZER UPRIGHT LOW ROW FOOT PLATE GUIDE ROD FOAM ROLLER HOLDER TOP GUIDE ROD RETAINER FRONT STABILIZER SEAT ADJUSTER SEAT BACK ADJUSTER CABLE ARM CONNECTOR CABLE ARM ASSEMBLY CABLE ARM SWIVEL CABLE TOP SINGLE PULLEY BLOCK CROSS PULLEY BLOCK TWO WAY TOP PLATE...
  • Page 5 PARTS LIST NO. DESCRIPTION QTY. NONSLIP 2" RUBBER DOUGHNUT 3" RUBBER DOUGHNUT PEC DEC STOPPER 114mm PULLEY 90mm PULLEY 50mm SQ. END CAP 50mm X 75mm END CAP 50mm SQ. PLUG 1" ID FOAM ROLLER PLUG PLASTIC GUIDE ROD HOLDER 1"...
  • Page 6 STEP 1 MAIN FRAME ASSEMBLE To ease the assembly process, do not tighten bolts until instructed. 1.Attach the Rear Stabilizer (2) to the Base Frame (1) using two 3/8" X 3-1/8" Hex Bolts (61), four 3/8" washers (74) and two 3/8" Nuts (77). 2.Attach the Front Stabilizer (8) to the Base Frame (1) using two 3/8"...
  • Page 7 STEP 2 1.Attach the Cable Arm Connector (11) to the Upright (3) using two 3/8" X 3" Hex Bolts (62), four 3/8" Washers (74), and two 3/8" Nuts (77). 2.Attach the Cable Arm Assembly (12) to the Cable Arm Connector using two 3/8" X 1"...
  • Page 8 STEP 3 1.Attach the Seat Back Adjuster (10) to the Upright (3) using one 3/8" X 3" Hex Bolt (62), two 3/8" Washers (74) and one 3/8" Nut (77). Do not tighten completely, Leave the bolt loose, just enough to let the Seat Back Adjuster (10) pivot freely. 2.Attach the Pop Pin (58) for the Seat Back Adjuster (10) to the Upright (3).
  • Page 9 STEP 4 AB CABLE (30) Assemble cables and pulleys simultaneously. Route steel ball end of AB Cable (30) through the slot and over the pulley in Upright (3), down to the pulley on top of the Cable Arm Connector (11) (A2), then up and over to the pulley on the Upright (A3) down and under the top pulley in the Cross Pulley Block (A4), then up and over the pulley on the Upright (A5), then down and under the pulley (smaller, 90 mm diameter) on the Two Way Top Plate (A6), then up to the receptor on top Connect Plate (as shown A7).
  • Page 10 STEP 5 CABLE ARM CABLE (29) Attach Pulleys (44) and Pulley Guides (24) to the Cable Arm Assembly (12) as shown in K3. Attach Pulleys (44) and Pulley Guides (24) to the bottom of the Cable Arm Assembly (12) as shown in K4. Route the pre-assembled Cable Arm Cable (29) over the Pulleys (44) at the top of the Cable Arm Assembly (K3), then down and around both bottom pulleys (K3), then up and around the bottom pulley in the Cross Pulley Block (K5).
  • Page 11 Guide Rods (5). Enjoy many years of a Fit Lifestyle. Thank you for purchasing the MINI X Press Gym. If You have any questions, please call your local BodyCraft dealer or call our customer service department at 800-990-5556...
