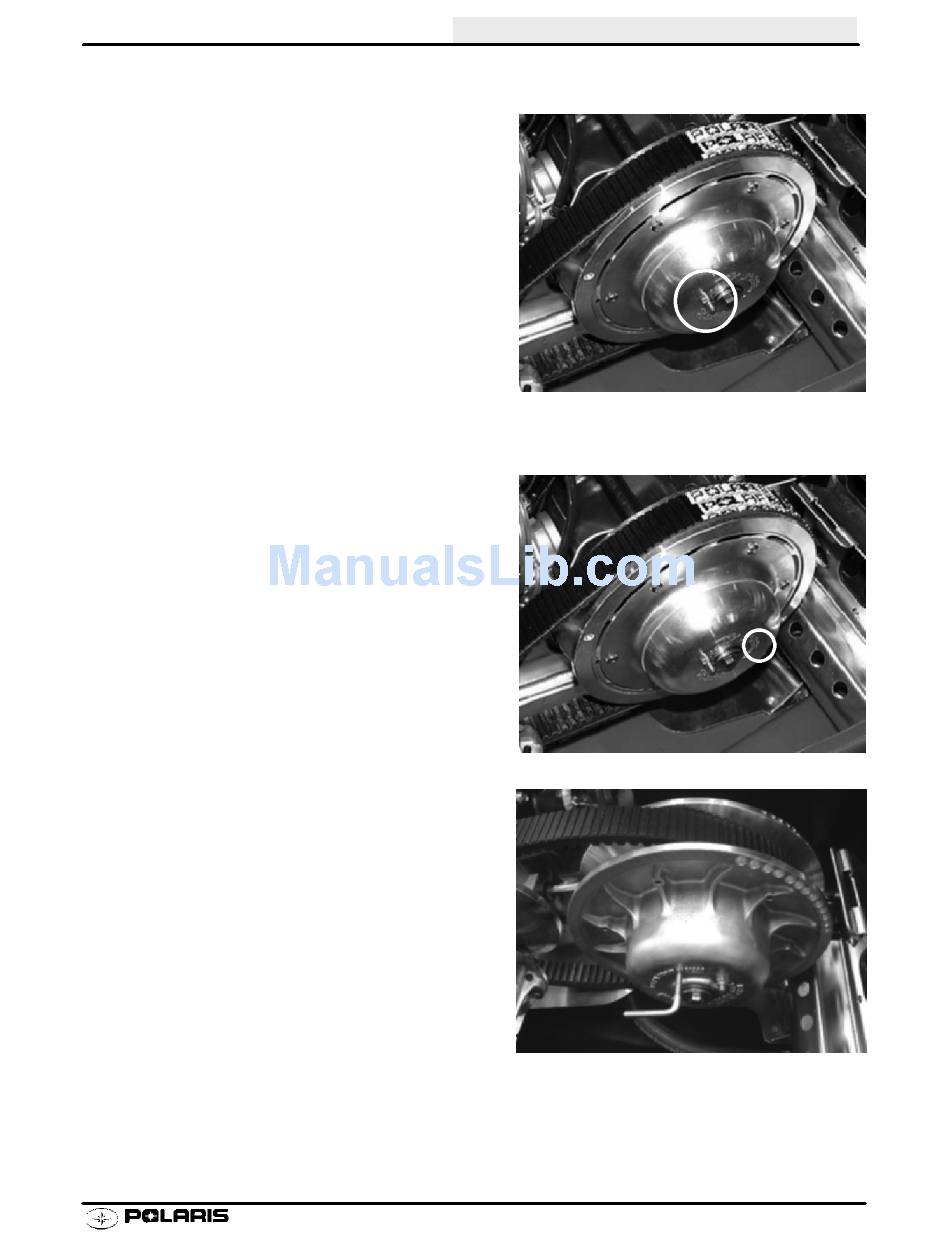

Adjusting Belt Deflection on the High Performance Roller

1. To adjust the sheaves, loosen the 7/16" jam
nut on the belt witdth adjuster.
2. Using a 1/8" Allen wrench, adjust the threaded
set screw as needed. NOTE: Turn the set
screw in (clockwise) to increase the distance
between the sheaves and out (counter
clockwise) to decrease the distance.
3. Tighten the jam nut after the belt adjustment
has been made.

Belt Removal on High Performance Roller

1. Thread the belt installation tool "L--wrench)
into the open hole next to the belt width
adjuster bolt.
2. Thread the tool into the hole until the sheaves
separate enough to remove the drive belt.
