WARNING
This manual contains information on limitations regarding product use and function and information on the
limitations as to liability of the manufacturer. The entire manual should be carefully read.
This panel will not operate if installed outside of North America. See section 1.1 for details.
Installation
Manual

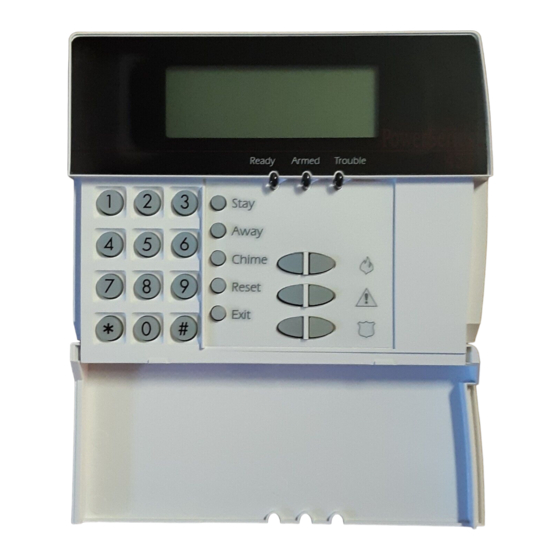

PC1555MX
Software Version 2.3
DLS-3 v1.3 and higher
See Back Cover for New Features
