Power connector cable

Description
Power connector cable (includes bracket)
Before removing the power connector cable, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see
5. Remove the battery (see
6. Remove the hard drive (see
7. Remove the speakers (see
8. Remove the system board (see
9. Remove the display (see

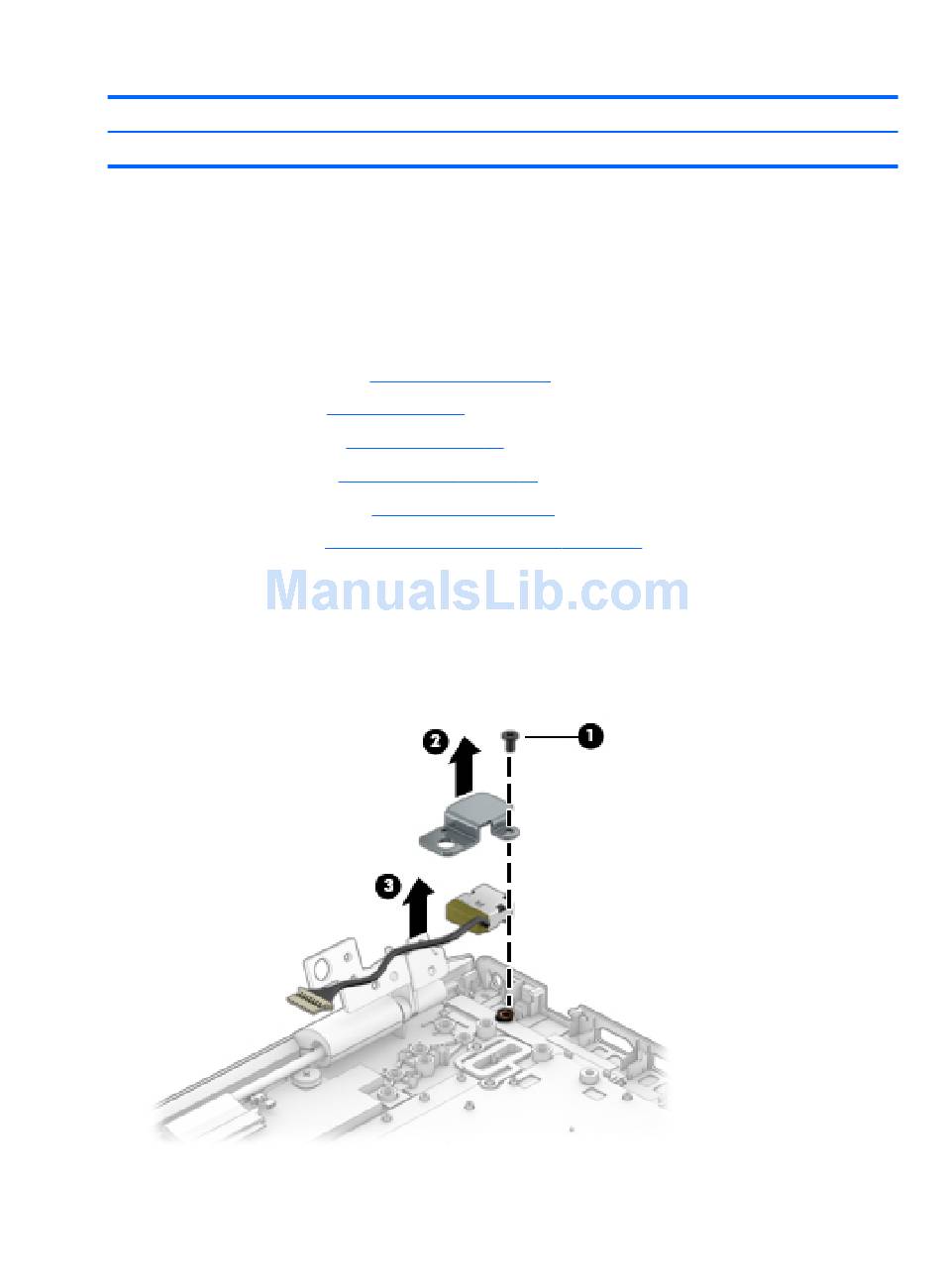

Remove the power connector cable:
1. Remove the Phillips PM2.5×4.0 screw (1) that secures the power connector bracket to the computer.
2. Lift the bracket from atop the power connector (2).
3. Remove the power connector (3) from the computer.
Reverse this procedure to install the power connector cable.
84 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
Bottom cover on page
Battery on page 54).
Hard drive on page 55).
Speakers (front) on page
System board on page
Display assembly – touch screen on page
35).
57).
66).
71).
Spare part number
812681-001
