Replacing The Print Head Ass'y - TSC MX240 Series Service Manual

MX240/ MX340/ MX640
Bar Code Printer Service Manua

3.5 Replacing the Print head ASS'Y

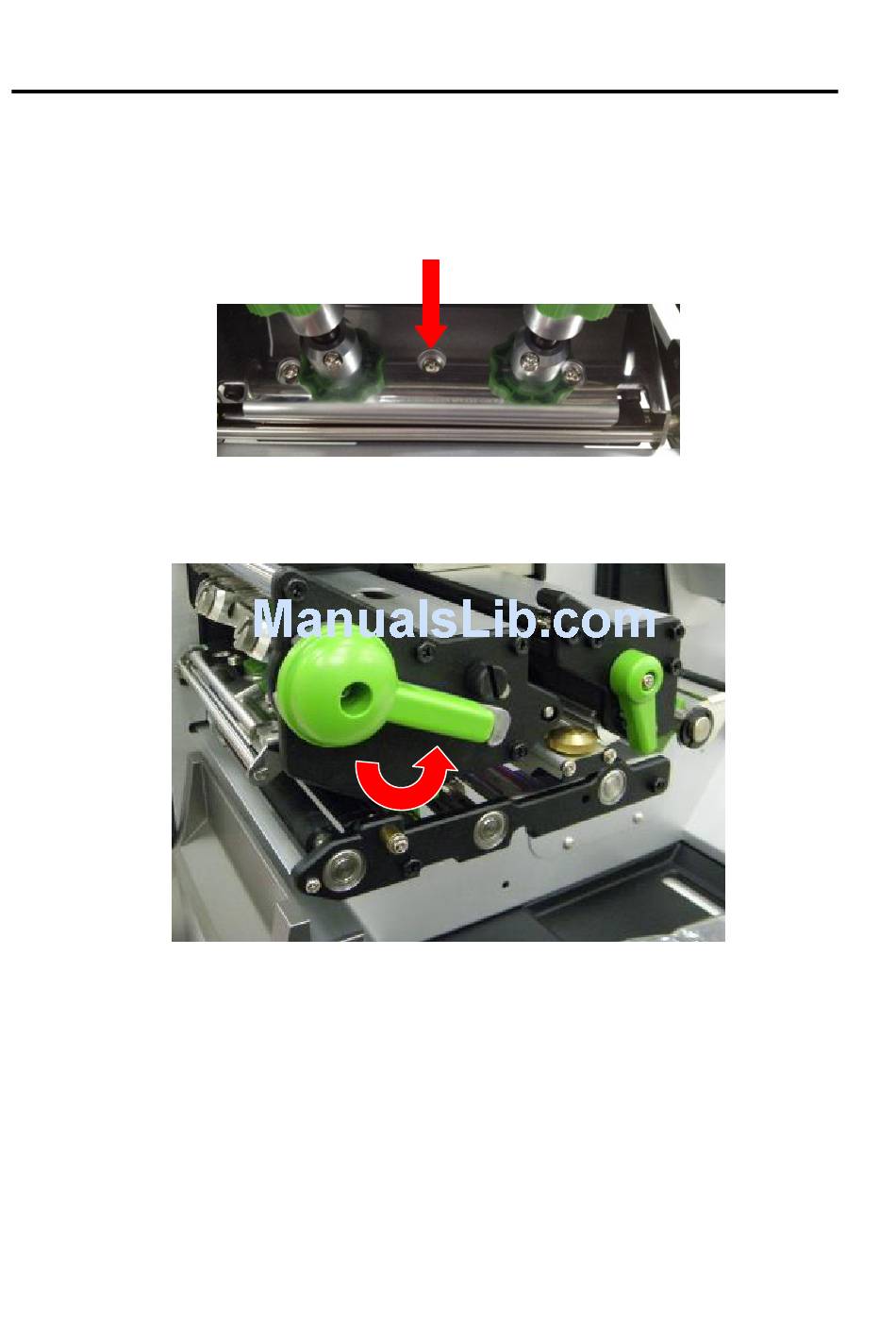

1. Loosen the print head secure screw counterclockwise until it can be taken out from the
mechanism.
2. Disengage the print head release lever.
3. Carefully disconnect connectors from the print head assembly. Please do not pull the
cable to right and left side alternatively in order to disconnect it from the print head
connector. Please use the flat screw driver to push at the key in the middle of the
connector. When the connector becomes loose from the print head connector, you can
disconnect it.
