2.2
Pluggble Module Method
NOTE: Please contact Axiomtek for the available option display

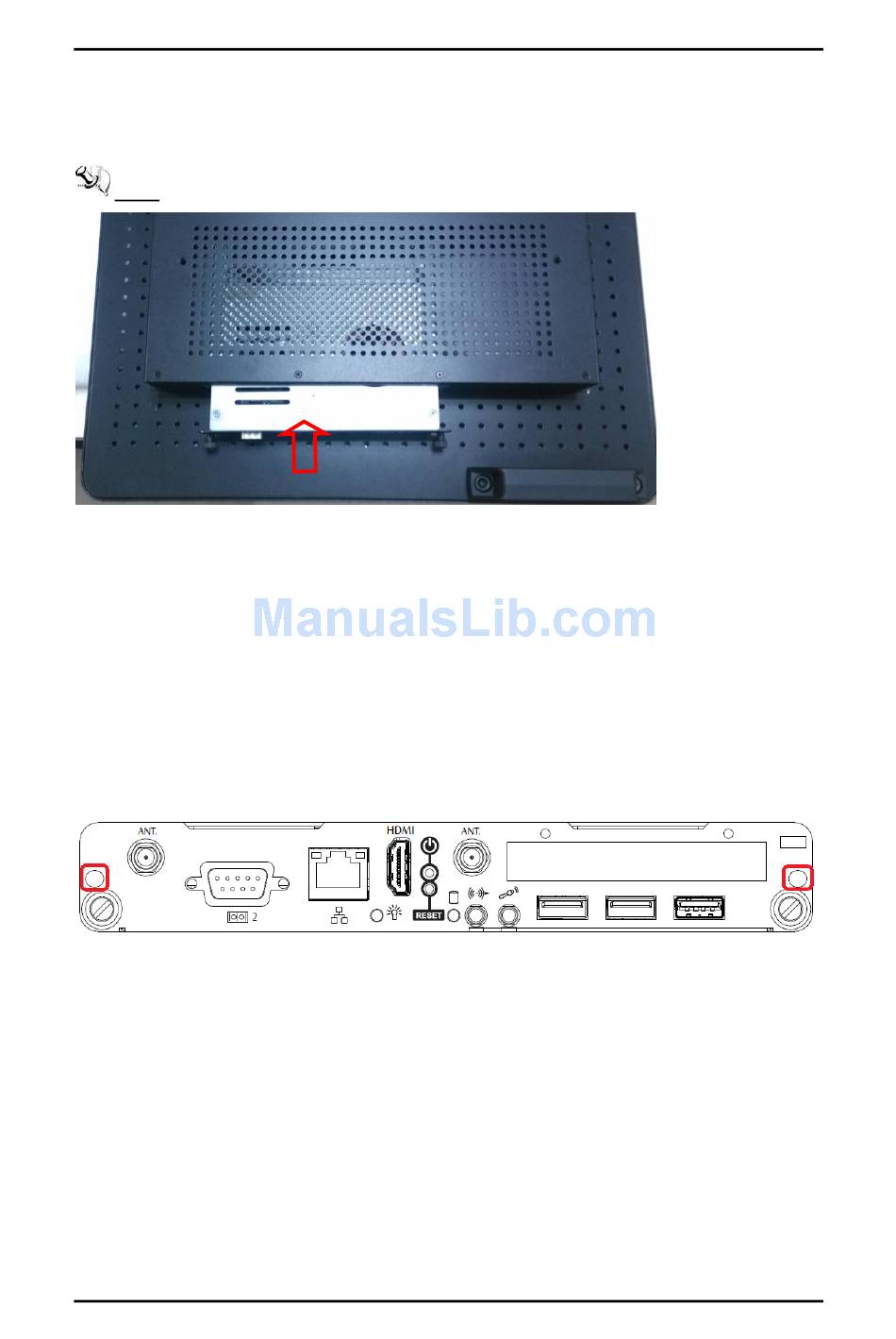

Step 1
Pluggable the box into display
Caution: When plugging OPS883-H series module into an OPS display, make sure the
module's heat sink is facing outside of the display. Axiomtek is not
responsible for any damage caused by wrong installation
Step 2
Fasten the screws as illustrated
Hardware Installation
OPS883-H User's Manual
.
21
