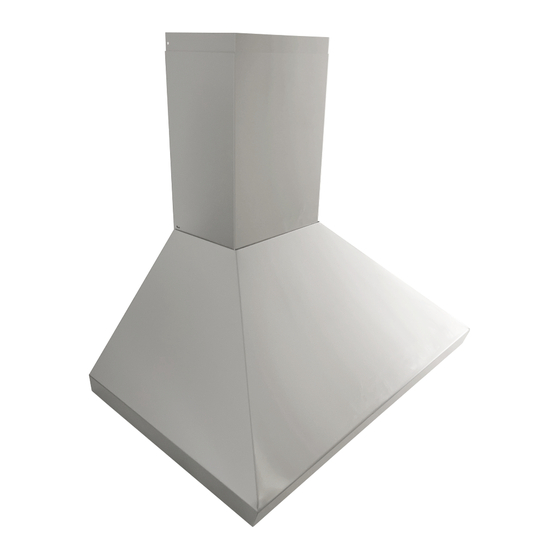

- Page 1 KOBE Range Hoods Brillia Series CHX81 SQB-2 Series Model No.: CHX8130SQB-2 (30”) CHX8136SQB-2 (36”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 IMPORTANT READ THIS FIRST READ BEFORE INSTALLATION 1. Carefully check all contents of package(s). 2. Thoroughly inspect the unit for any shipping damages, cosmetic damages or defects. 3. Have a certified contractor/electrician test the unit before installation. IF THERE IS ANY PROBLEMS: 1.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ................ 1 COMPONENTS OF PACKAGE ..................3 INSTALLATION ....................... 4 OPERATING INSTRUCTIONS ..................7 MAINTENANCE ......................8 SPECIFICATIONS ......................9 MEASUREMENTS & DIAGRAMS................. 10 PARTS LIST ........................11 CIRCUIT DIAGRAM ...................... -
Page 4: Important Safety Instructions
Any repair carried out without the supervision of KOBE authorized agents automatically void the warranty. KOBE will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do in the Event of a Range Top Grease Fire 1. SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
{G} Flapper x 2 {H} Screws Package *knob is attached to the filters Size: 4*16 Size: 4*8 QTY: 6pcs Size: 4*35 QTY: 4pcs QTY: 4pcs • FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT 626-775-8880. -
Page 7: Installation
1. Read any provided document(s). 2. Test the range hood by temporarily connecting it to an outlet and turning ON the fan and lights. 3. If you run into any problems, contact KOBE Range Hoods. Venting Requirements 4. The range hood has top 6” round exhaust (default). - Page 8 7. If an elbow is necessary, a minimum of 12” straight run is necessary before the elbow. Clearance 8. Clearance is the distance between the cooktop and the bottom of the range hood. The recommended minimum clearance for this model is 26” and the maximum clearance is 30”. 9.
- Page 9 Electrical Wire 20. Connect the range hood to an outlet. 21. If hardwire is desired, cut off the plug and connect three wires (black, white, and green) to the outlet wires and cap with wire connectors. Connect the wires according to color (ex.
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS 3-Speed Rocker Switch NOTE: For best result, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. To operate the fan function • Press ON/OFF Control to turn on the power. •... -
Page 11: Maintenance
MAINTENANCE For optimal performance, clean the range hood surface and filters regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. ***Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 12: Specifications
SPECIFICATIONS CHX8130SQB-2 / 30” MODEL / SIZE CHX8136SQB-2 / 36” COLOR Commercial Grade Stainless Steel CONSUMPTION / AMPERE 126W / 1.41A VOLTAGE / Hz 110V / 60Hz NUMBER OF BLOWERS DESIGN Seamless with Satin Finish BLOWER TYPE Single Horizontal Squirrel Cage Top 6”... -
Page 13: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. MODEL NO.: CHX8130SQB-2 (30”) CHX8136SQB-2 (36”) Front View Bottom View... -
Page 14: Parts List
PARTS LIST MODEL NO.: CHX8130SQB-2 (30”) CHX8136SQB-2 (36”) Description Model No. Part No. Duct Cover Mounting Bracket 02-027 Duct Cover CHX81DC-2 Capacitor 02-004 LED Light 02-005 Rocker Switch Set 02-025 Blower System YYC-148-3 Baffle Filter (283mm x 374mm) 02-026 6” Round Exhaust Adapter 02-003... -
Page 15: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: CHX8130SQB-2 (30”) CHX8136SQB-2 (36”) -
Page 16: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s power is ON. Use a installation, both motors voltage meter to check the power and lights are supply. not working. The wire connection is not secure. -
Page 17: Warranty
ONE-YEAR LIMITED LABOR WARRANTY ON KOBE BRILLIA SERIES: For one year from the date of your original invoice from KOBE authorized dealer, we will repair any parts or components free of charge that failed due to manufacturing defects. KOBE reserves the right to replace, rather than repair the product free of charge at our sole discretion. - Page 18 THIS WARRANTY WILL BE VOIDED BY: 1. Improper installation and failure to follow installation instructions. 2. Any repair, alternation, modification not authorized by KOBE. 3. Duct alternation, modification, and connection. 4. Incorrect electric current, voltage, or wiring. 5. Improper usage of the product such as commercial, outdoor, or other usage other than residential indoor usage.
-
Page 19: Warranty Information Form
3. Serial No. :_______________________________ For warranty service or spare parts purchase in US, contact: KOBE Service Center Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880 Toll Free: 1-877-BUY-KOBE (289-5623) For warranty service or spare parts purchase in Canada, contact: Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880... - Page 20 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
