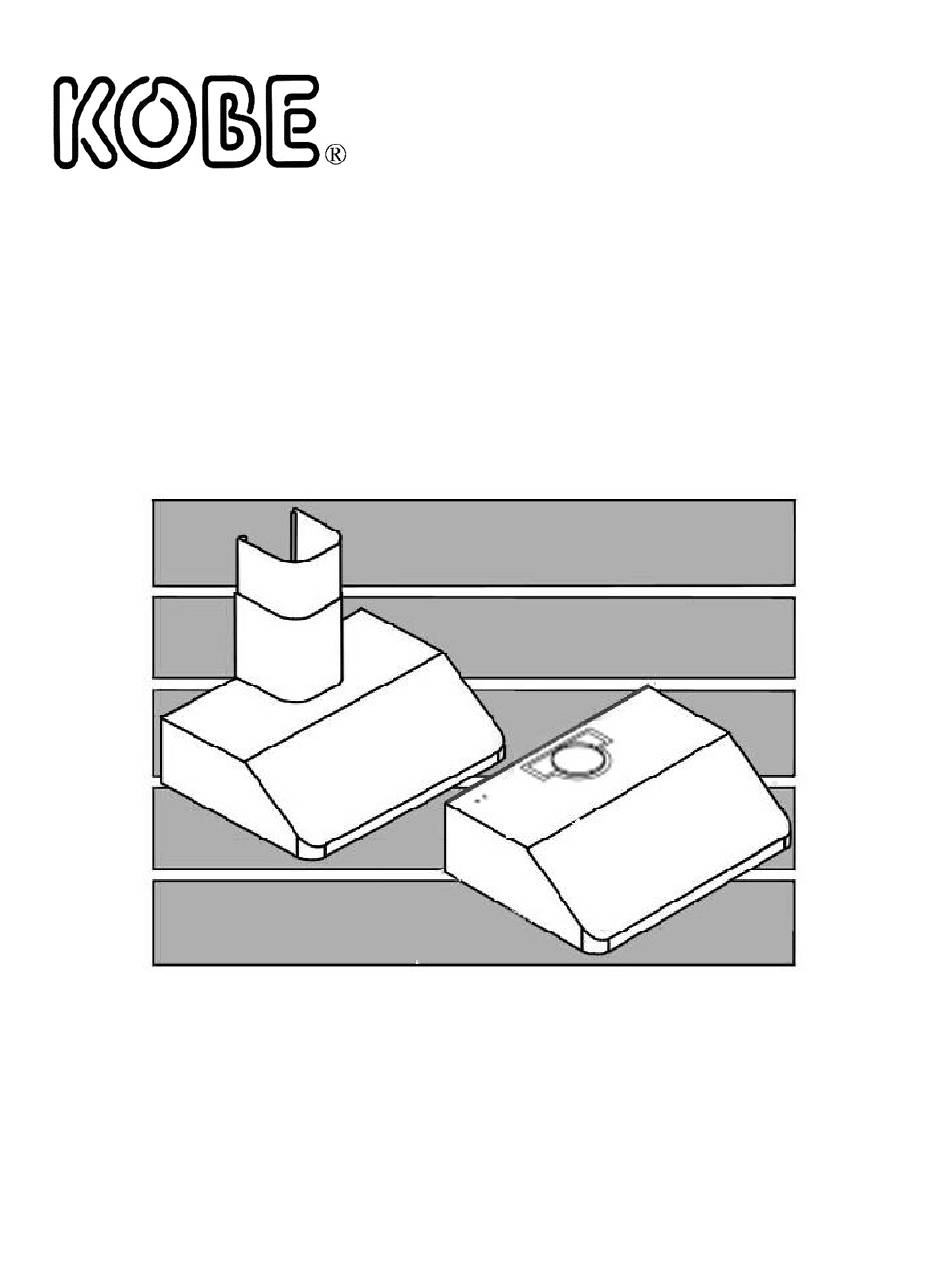

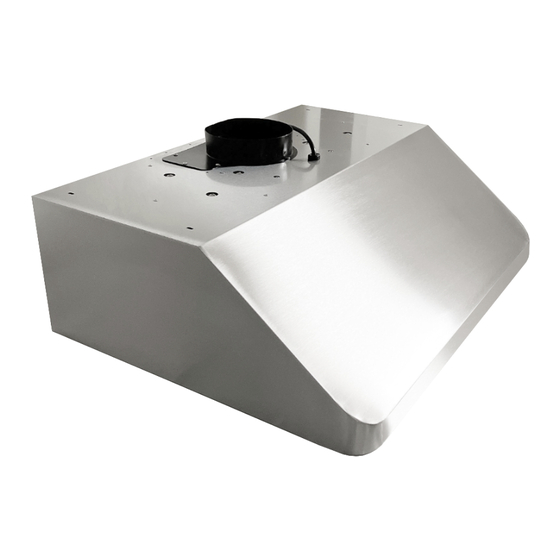

- Page 1 KOBE Range Hoods Brillia Series CHX91 SQB-2 Series Model No.: CHX9130SQB-2 (30”) CHX9136SQB-2 (36”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 IMPORTANT READ THIS FIRST READ BEFORE INSTALLTAION 1. Carefully check all contents of package(s). 2. Thoroughly inspect the unit for any shipping damages, cosmetic damages or defects. 3. Have a certified contractor/electrician test the unit before installation. IF THERE IS ANY PROBLEMS: 1.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANGE SAFETY INSTRUCTIONS ..............1 COMPONENTS OF PACKAGE ..................3 INSTALLATION ....................... 4 OPERATING INSTRUCTIONS ..................9 MAINTENANCE ......................10 SPECIFICATIONS ......................11 MEASUREMENTS & DIAGRAMS................. 12 PARTS LIST ........................14 CIRCUIT DIAGRAM ...................... -
Page 5: Importange Safety Instructions
Any repair carried out without the supervision of KOBE authorized agents automatically void the warranty. KOBE will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 6 What to Do in the Event of a Range Top Grease Fire 1. SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 7: Components Of Package
{H} Oil Tunnel x 1 Baffle Filters x 2 {J} Stainless Steel Spacers x 2 {K} Screws QTY: 8 QTY: 6 Size: 4*12 Size: 4*8 QTY: 5 Size: 4*35 • FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT 626-775-8880. -
Page 8: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1 and TABLE 2. (All calculation in inches). - FOR UNDER THE CABINET - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to... - Page 9 1. Read any provided document(s). 2. Test the range hood by temporarily connecting it to an outlet and turning ON the fan and lights. 3. If you run into any problems, contact KOBE Range Hoods. Venting Options and Requirements 4. The range hood has 3 exhaust options: Top 6” Round, Top 3-1/4”...
- Page 10 Hood Installation 13. Remove any protective film off the hood, if any. 14. For installing under the cabinet with recessed bottom, attach 4-inch wide wood filler strips (not included) on each side (Figure 5). 15. Create access opening for electrical plug or wires and hood exhaust under the cabinet.
- Page 11 2. Test the range hood by temporarily connecting it to an outlet and turning ON the fan and lights. *Note: 6” Round Vent Exhaust is pre- 3. If you run into any problems, contact KOBE Range Hoods. installed on the range hood. Figure 1 Venting Options and Requirements 4.
- Page 12 14. Using reference on TABLE 2 and measurements on page XX to mark the leveling point of the hood. Position three 4*35 screws on the wall, leaving 1/8” away from the wall as shown in Figure 6. 15. Align hood-mounting bracket to the three screws on the wall and hook hood into place.
-
Page 13: Operating Instructions
OPERATING INSTRUCTIONS 3-Speed Mechanical Push Button NOTE: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. To operate the fan function • Press button to choose from speed o Q = QuietMode™... -
Page 14: Maintenance
MAINTENANCE For optimal performance, clean the range hood surface and filters regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. ***Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 15: Specifications
SPECIFICATIONS CHX9130SQB-2 (30”) MODEL / SIZE CHX9136SQB-2 (36”) COLOR Commercial Grade Stainless Steel CONSUMPTION / AMPERE 106W / 1.17A VOLTAGE / Hz 110V / 60Hz NUMBER OF BLOWER DESIGN Seamless / Satin Finish BLOWER TYPE Twin Vertical Turbine Impeller EXHAUST Top: 6”... -
Page 16: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. - FOR UNDER THE CABINET - CHX9130SQB-2 (30”) MODEL NO.: CHX9136SQB-2 (36”) - FOR WALL MOUNT (WITH OPTIONAL DUCT COVER - CHX9130SQB-WM-2 (30”) MODEL NO.: CHX9136SQB-WM-2 (36”) - Page 17 ***Hood-Mounting Bracket ***Duct Cover-Mounting Bracket ***Duct Cover Support...
-
Page 18: Parts List
PARTS LIST CHX9130SQB-2 (30”) MODEL NO.: CHX9136SQB-2 (36”) DESCRIPTION MODEL / SIZE PART NO. 6” Round Exhaust Plate 02-030 3-1/4” x 10” Rectangular Exhaust 02-031 3-1/4” x 10” Top Vent Cover 02-032 Control Switch 02-006 LED Light 02-005 Capacitor (5uF) x 2 02-033 Metal Oil Tunnel 02-034... -
Page 19: Circuit Diagram
CIRCUIT DIAGRAM CHX9130SQB-2 (30”) MODEL NO.: CHX9136SQB-2 (36”) -
Page 20: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s power is ON. Use a installation, both motors voltage meter to check the power and lights are supply. not working. The wire connection is not secure. -
Page 21: Warranty
ONE-YEAR LIMITED LABOR WARRANTY ON KOBE BRILLIA SERIES: For one year from the date of your original invoice from KOBE authorized dealer, we will repair any parts or components free of charge that failed due to manufacturing defects. KOBE reserves the right to replace, rather than repair the product free of charge at our sole discretion. - Page 22 THIS WARRANTY WILL BE VOIDED BY: 1. Improper installation and failure to follow installation instructions. 2. Any repair, alternation, modification not authorized by KOBE. 3. Duct alternation, modification, and connection. 4. Incorrect electric current, voltage, or wiring. 5. Improper usage of the product such as commercial, outdoor, or other usage other than residential indoor usage.
-
Page 23: Warranty Information Form
3. Serial No. :_______________________________ For warranty service or spare parts purchase in US, contact: KOBE Service Center Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880 Toll Free: 1-877-BUY-KOBE (289-5623) For warranty service or spare parts purchase in Canada, contact: Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880... - Page 24 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
