KOBE CHX81 SQB-1 Manual

CHX81 SQB-1 Parts Location and Replacement

This basic guide is to show the parts location of the CHX81 SQB-1 and how to remove or install certain parts.

To see more detailed guidelines, please visit:

For 30" wall mount models: CHX8130SQB-1, CHX8130SQB-DC30-1, CHX8130SQB-DC46-1

For 36" wall mount models: CHX8136SQB-1, CHX8136SQB-DC30-1, CHX8136SQB-DC46-1

1. Blower System

2. Controls

3. LED Light (3W)

KOBE Range Hoods

"So Quiet...You Won't Believe It's On!"

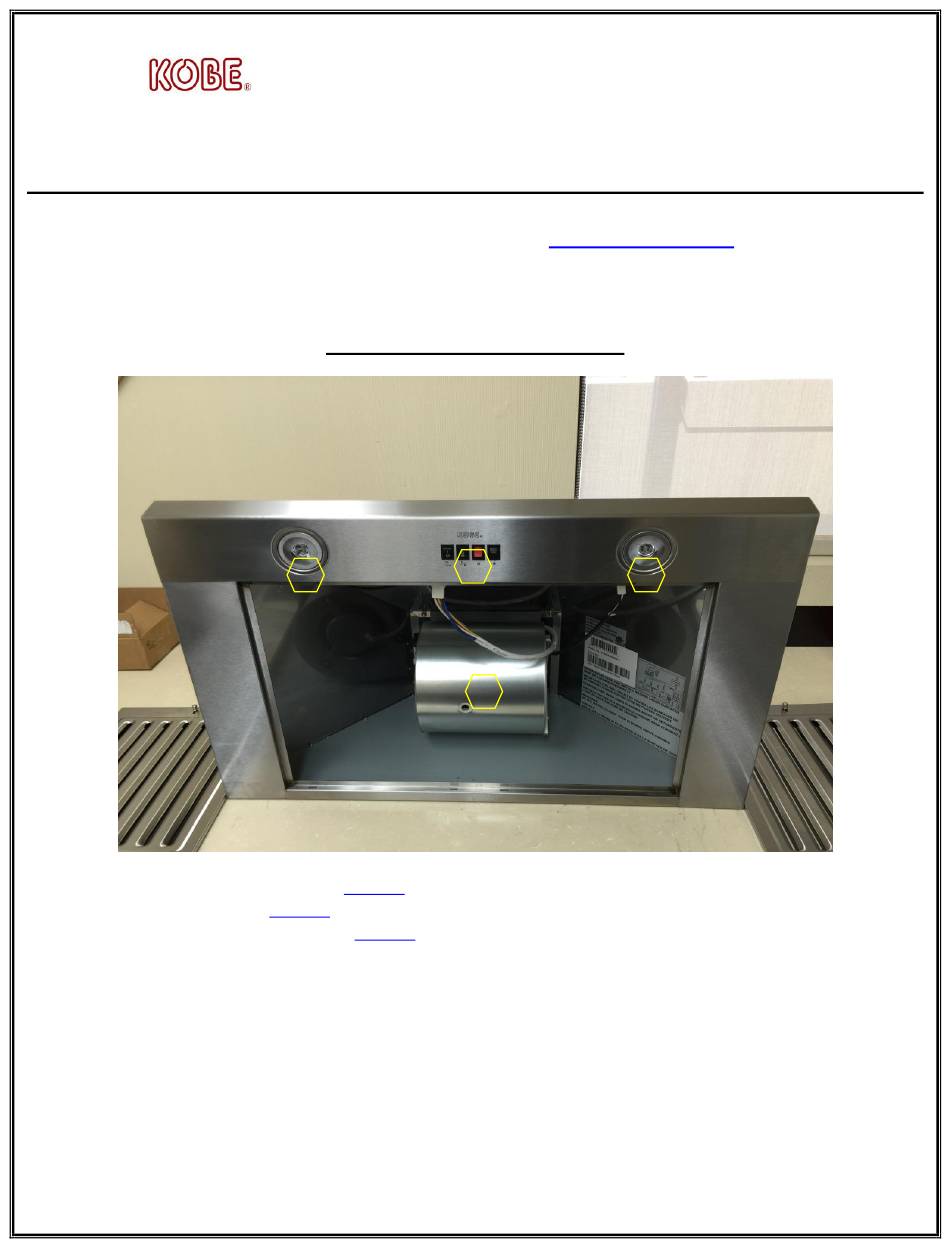

Overall Snapshot of CHX81 SQB-1

Part #11 – See "Parts List" page on manual)

(Manual

Part #s 5, 6, 7, and 8 – See "Parts List" page on manual)

(Manual

Part #9 – See "Parts List" page on manual)

(Manual

Page 1 of 5

Version 20160725

Kobe Service and Repair

Table of Contents

Need help?

Do you have a question about the CHX81 SQB-1 and is the answer not in the manual?

Page 1 “So Quiet…You Won’t Believe It’s On!” CHX81 SQB-1 Parts Location and Replacement This basic guide is to show the parts location of the CHX81 SQB-1 and how to remove or install certain parts. To see more detailed guidelines, please visit: Kobe Service and Repair For 30”...
Page 2 KOBE Range Hoods “So Quiet…You Won’t Believe It’s On!” Removing the Capacitor Support Warning: 1. Loosen the screw first with a hand tool screw driver. 2. When pulling the wires from the capacitor support, press the ‘push release’ at the back of the cord.
Page 3 KOBE Range Hoods “So Quiet…You Won’t Believe It’s On!” Accessing the Capacitor and LED Driver Part #12 – See “Parts List” page on manual) 5. Capacitor (Manual Part #4 – See “Parts List” page on manual) 6. LED Light Driver...
Page 4 KOBE Range Hoods “So Quiet…You Won’t Believe It’s On!” Removing the Control Switches Figure 1 : Removing the switch Figure 2 Figure 3 Figure 4 Accessing the LED Light For a more detailed guideline, visit: How to Replace LED Lights...
Page 5 KOBE Range Hoods “So Quiet…You Won’t Believe It’s On!” Removing the Blower System Warning: 1. Loosen the screw first with a hand tool screw driver. 2. Place a support or hold the blower before removing it. Figure 1 Figure 2...
