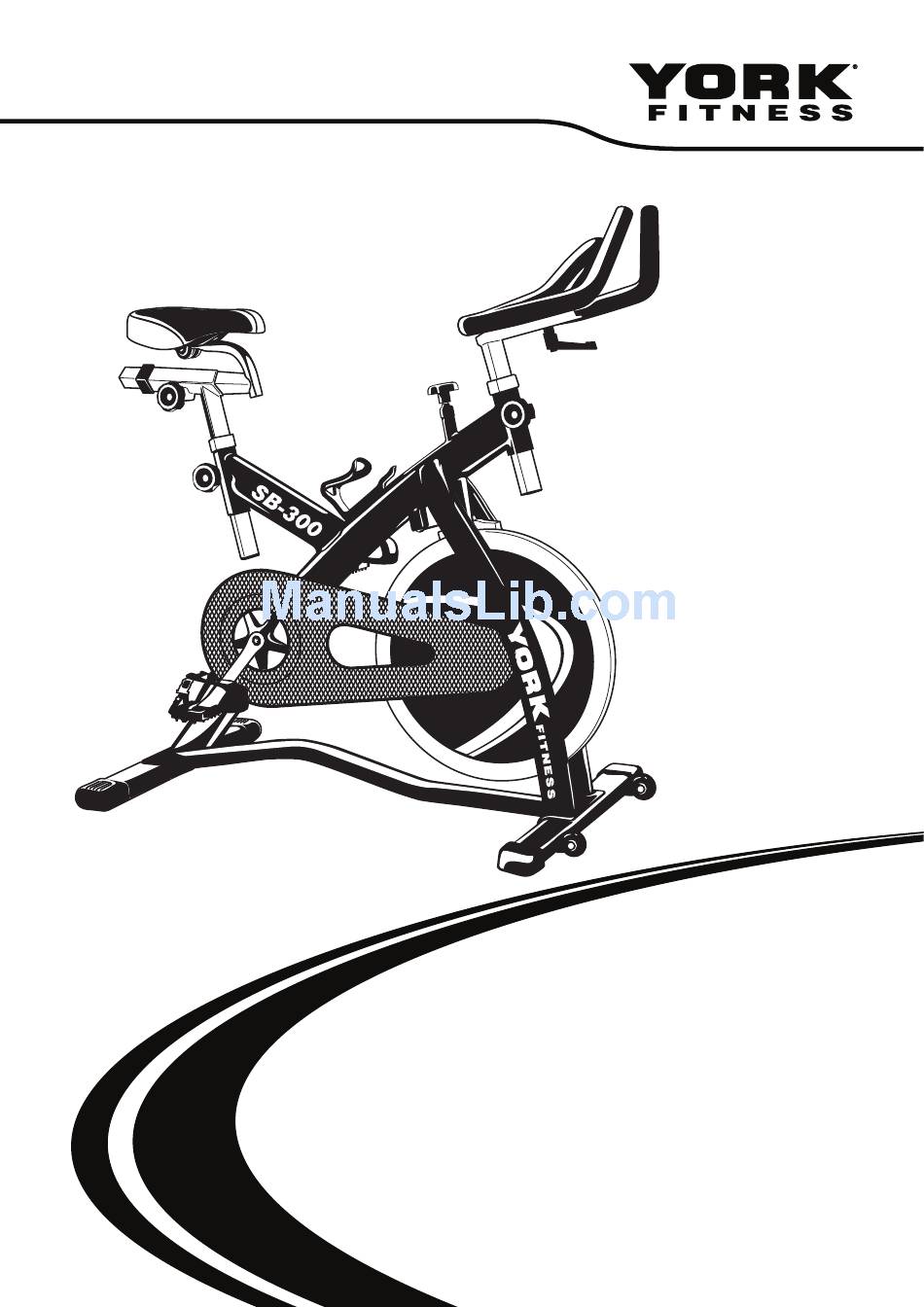

- Page 1 York Indoor Training Cycle OWNER’S MANUAL 10May2011 53031...
- Page 3 Congratulations on purchasing your exercise equipment from York Fitness. You have chosen a high quality, safe and innovative piece of equipment as your training partner and we are certain it will keep you motivated on the way to achieving your personal fitness goals.
-
Page 4: Table Of Contents
contents safety information customer support assembly instructions operational instructions warranty exploded drawing part list... -
Page 5: Safety Information
safety information Please read this instruction manual before you begin • Parents and others in charge of children should be aware of their responsibility, because the natural play instinct and the assembly. Great care has been taken to design these fondness of experimenting of children can lead to situations instructions and following them will help you with and behavior for which the training equipment is not... -
Page 6: Customer Support
• Precise description of the issue / defect • Ensure that you inspect the product regularly - at least IMPORTANT!! - Please retain your sales receipt, York Fitness once a week is recommended. Customer Care may request proof of purchase to validate • Ensure that all fixings are tight before use. -
Page 7: Assembly Instructions
assembly instructions STEP 1 Attach the front (16) and rear feet (12) to the frame using the nuts (8), washer (9) and bolts (10). STEP 2 Attach the handlebar post (23) by inserting it into the head tube on the frame. Use the knob to adjust and tighten the height to the desired position. - Page 8 STEP 3 Insert the seat post (42) into the seat tube on the frame. Attach the saddle (1) into seat slider (41). Insert the seat slider (41) into the seat post (42) and fix. Using knob (4) adjust and tightens the height in the desired position.
-
Page 9: Operational Instructions
operational instructions ADJUSTING THE RESISTANCE • Adjust the exercise resistance on the cycle using the brake knob (31) to loosen (-) or tighten (+). • The flywheel should rotate freely without resistance when you loosen (-) the brake system fully • More experience riders may wish to increase the overall resistance by tightening (+) the brake system. - Page 10 operational instructions Maintenance Chart DESCRIPTION DAILY WEEKLY MONTHLY QUARTERLY ANNUALLY Wipe machine down Spray with WD40 or similar on frame Visual check Check security of handle bar post & seat post Check security of saddle Remove handlebar post and clean tube Remove seat post and clean tube Check brake pads for wear - align Check brake adjustment...
-
Page 11: Warranty
This warranty does not extend to any product that has been damaged or rendered defective: (a) as a result of accident, misuse, abuse or lack of reasonable care; (b) by the use of parts not manufactured by York Fitness or sold by York Fitness; (c) by modification of the product; (d) as a result of service by anyone else other than York Fitness or an authorized York Fitness warranty service provider. -
Page 12: Exploded Drawing
exploded drawing... -
Page 13: Part List
part list PART NO. DESCRIPTION PART NO. DESCRIPTION 53031-1 Saddle 53031-31 Brake system 1 set 53031-2 Ally bind clamp (R/L) 53031-32 Crank bolt 53031-3 Knob spring 53031-33 Flywheel security nut 53031-4 Knob 53031-34 Outer chain guard bolt(M6) 53031-5 Left crank arm 34-1 53031-35 Outer chain guard bolt(M5)
