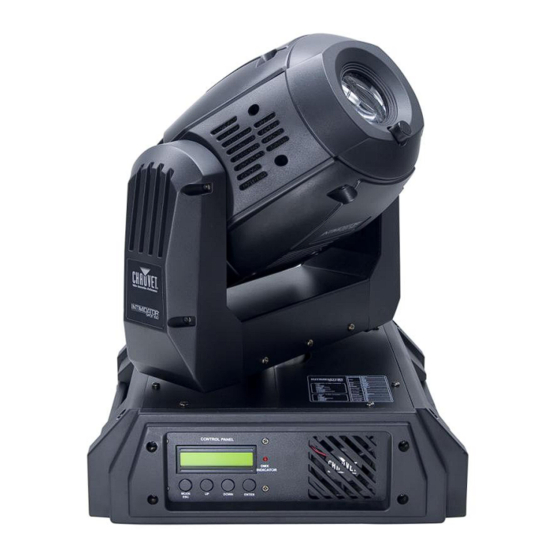

Chauvet Intimidator Spot 150 User Manual
Hide thumbs
Also See for Intimidator Spot 150:
- Quick reference manual (52 pages) ,
- User manual (20 pages) ,
- User manual (20 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Chauvet Intimidator Spot 150
Summary of Contents for Chauvet Intimidator Spot 150
-
Page 1: User Manual
Snapshot Intimidator™ Spot 150 OK on Dimmer Outdoor OK Sound Activated DMX512 Master/Slave 115V/230V Switch Replaceable Fuse User Serviceable Duty Cycle USER MANUAL 3000 N 29 Ct, Hollywood, FL 33020 U.S.A. (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com... -
Page 2: Table Of Contents
DMX Channel Values ................................19 5. Appendix ....................................22 DMX Primer ....................................22 SETTING THE STARTING ADDRESS ............................ 22 Intimidator Spot 150 Service Maintenance Guide ........................23 Contact Us....................................24 General Maintenance ................................25 Returns Procedure ..................................25 Claims......................................25 Technical Specifications ................................ -
Page 3: Before You Begin
1. B EFORE EGIN What is included 1 x Intimidator™ Spot 150 1 x Mounting bracket kit w/screws 1 x Power Cord 1 x Warranty Card 1 x User Manual Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. -
Page 4: Safety Instructions
There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET at: 954-929-1115. Intimidator™ Spot 150 User Manual 6/19/2009 9:08 AM... -
Page 5: Introduction
2. I NTRODUCTION Features 8 or 12-channel DMX-512 moving yoke Pan: 540° / tilt: 270° Color wheel 7 colors + white Split colors Rainbow color spin at variable speeds Indexed rotating gobo wheel with gobo shake 7 interchangeable gobos + open 5 metal, 2 glass installed Rotating gobo wheel spin at variable speeds Variable motorized shutter (for strobing) -
Page 6: Dmx Channel Summary
DMX Channel Summary Advanced Mode Basic Mode HANNEL UNCTION HANNEL UNCTION Pan coarse Tilt coarse Tilt Pan fine Color Tilt fine Gobo Pan/Tilt speed Gobo rotation Color Shutter Gobo Dimmer Gobo rotation Effect Shutter Dimmer Mode/function Effect Product Overview 115/230V switch Power switch... -
Page 7: Product Dimensions
3. S ETUP Lamp You will need to install a lamp prior to the initial operation of the fixture. A HTI 150W discharge lamp is included. Warning! When replacing the lamp, please wait 15 minutes after powering down to allow the unit to cool down! Always disconnect from main power prior to lamp replacement. -
Page 8: Lamp Alignment How-To
Lamp Alignment How-To After a new installation of a lamp, you may find that there is an uneven field of light or what is refered to as a “hot spot”. This is due to the most intense point of the lamp source not being positioned optimally within the reflector. -
Page 9: Replacing Gobos
Replacing Gobos Top cover screws Be sure the fixture is not powered or connected to mains. Remove the top cover by removing the 4 screws with a Phillips #2 screwdriver. With your hand, move the gobo wheel to the desired gobo to change. You may now replace the gobo easily by removing the retaining ring. -
Page 10: Fixture Linking
Maximum recommended number of fixtures on a serial data link: 32 fixtures Data Cabling To link fixtures together you must obtain data cables. You can purchase CHAUVET-certified DMX cables directly from a dealer/distributor or construct your own cable. If you choose to create your own cable please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference. -
Page 11: 3-Pin To 5-Pin Conversion Chart
If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter. Note! CHAUVET Model No: DMX5M, or DMX5F. The chart below details a proper cable conversion: IN TO... -
Page 12: Mounting
Mounting O RI ENT AT I O N This fixture may be mounted in a hanging or floor mounted/upright position. Do not hang this fixture at odd angels, such as 45° degrees or 90° degrees! RI G G I NG Hanging Clamp It is important never to obstruct the fan or vents pathway. -
Page 13: Manual Focus
MAN U AL F O CUS This fixture has a manual focus mechanical adjustment. Locate the focus adjustment knob at the front of the fixture. Using your hand (not a tool!) rotate this either clockwise or counter-clockwise in the desired focus position. Note: you may not adjust this focus remotely, so be sure to set this to a position that works in the location that you are running/installing the fixture. -
Page 14: Operating Instructions
4. O PERATING NSTRUCTIONS Navigating the Control Panel Access control panel functions using the four panel buttons located directly underneath the LCD Display. Button Function Used to access the menu or to return to a <MODE/ESC> previous menu option Scrolls through menu options in ascending <UP>... -
Page 15: Menu Map
Menu Map UNCTION UNCTION ELECTION NSTRUCTION 1. DMX Address Address 000 ~ 255 Sets the DMX starting address Fast Sets the fixture to fast Auto mode Slow Sets the fixture to slow Auto mode Sets the fixture to audio triggering Auto Sound mode 2. -
Page 16: Service Menu Map
Menu Map (continued) Service Menu Map The password is: 2323 Exit this mode by pressing Mode/Esc 2 times (2X) Intimidator™ Spot 150 User Manual 6/19/2009 9:08 AM... -
Page 17: User Configurations
User Configurations T O SET T HE PAN T O I N VERT I NG O R NO N -INVERT I NG : Press the <MENU/ESC>. Select the desired option by using the <UP> and/or <DOWN> button to navigate through the display until you reach “3-Pan”. -
Page 18: To Restore All Settings To Their Factory Defaults
T O REST O RE AL L SET T I NG S T O T HEI R F AC T O RY DEF AUL T S: Warning: This will erase all user settings and revert the fixture back to the original factory defaults! Under the “11-Load Set”, Press <ENTER>. -
Page 19: Dmx Channel Values
DMX Channel Values Advance Mode: (16-bit pan/tilt, 12-channel) HANNEL ALUE UNCTION 000 255 0° 540° Tilt 000 255 0° 270° Pan fine 000 255 0° 3° Tilt fine 000 255 0° 3° Pan/tilt speed 000 ... - Page 20 010 014 Pan/tilt move-in-black 015 019 Pan/tilt move-in-black (disabled) 020 024 Color wheel move-in-black 025 029 Color wheel move-in-black (disabled) 030 034 Gobo wheel move-in-black 035 039 Gobo wheel move-in-black (disabled) 040 044 All movement move-in-black 045 ...
- Page 21 Basic Mode: (8-bit pan/tilt, 8-channel) HANNEL ALUE UNCTION 000 255 0° 540° Tilt 000 255 0° 270° Color Wheel 000 007 White (open) 008 015 Light Blue 016 023 024 031 Peachblow 032 ...
-
Page 22: Appendix
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) SET T I NG T HE ST ART I NG ADDRESS This DMX mode enables the use of a universal DMX controller device. -
Page 23: Intimidator Spot 150 Service Maintenance Guide
30 seconds of inactivity, or if the display stays lit indefinitely. -See section “5-Display” in the onboard display “close”. If you still have a problem after trying the above solutions, please contact CHAUVET Technical Support at the location on the following page. -
Page 24: Contact Us
Contact Us Wo rl d Wi d e General Information CHAUVET 3000 North 29 Court Hollywood, FL 33020 voice: 954.929.1115 fax: 954.929.5560 toll free: 800.762.1084 Technical Support CHAUVET 3000 North 29 Court Hollywood, FL 33020 voice: 954.929.1115 (Press 4) fax: 954.929.5560 (Attention: Service) -
Page 25: General Maintenance
Package must be clearly labeled with a Return Merchandise Authorization Number (RMA #). Products returned without a RMA # will be refused. Call CHAUVET and request RMA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 26: Technical Specifications
Technical Specifications WEIGHT & DIMENSIONS Length ..........................13.4 in (340 mm) Width ..........................13.1 in (333 mm) Height ..........................17.6 in (446 mm) Weight ..........................40 lbs (18.1 kg) POWER Switch-selectable power settings ............115VAC 60Hz or 230VAC 50Hz Fuse (fast-blow) ........................... F5A 250V Power Consumption ..................
