Summary of Contents for Chauvet Intimidator

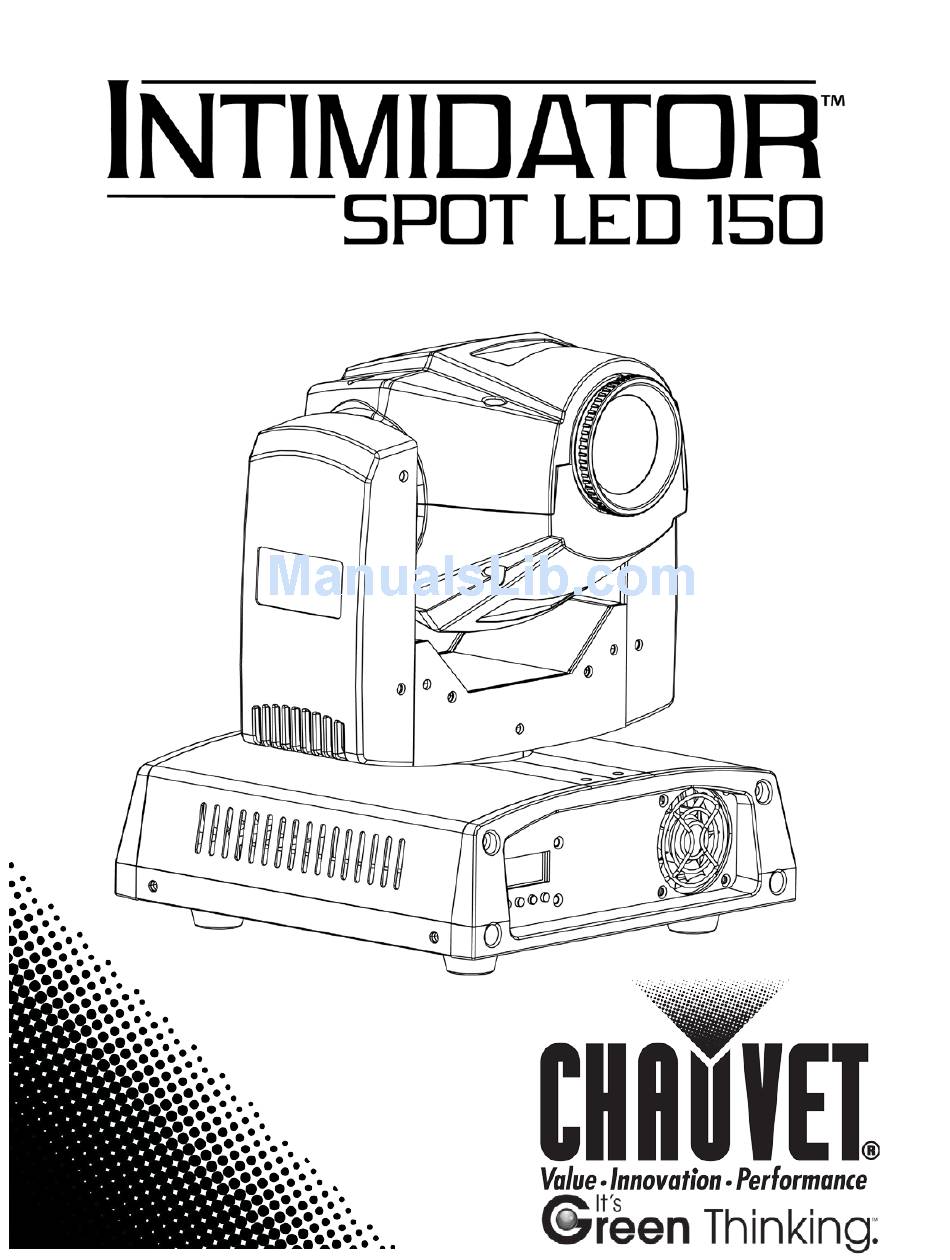

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    Display Orientation ....................15 Master/Slave Mode ....................15 Reset Software ....................15 5. Technical Information ..............16 Product Maintenance .................. 16 6. Technical Specifications ..............17 Returns ....................... 18 Contact Us ....................18 Page 2 of 18 Intimidator™ Spot LED 150 User Manual Rev. 8...

  • Page 3: Before You Begin

    CHAUVET®. Failure to do so in a timely manner may invalidate your claim with the carrier. In addition, keep the container and all the packing material for inspection.

  • Page 4: Product At A Glance

    Please contact the nearest authorized technical assistance center. · Keep this User Manual. If you sell the product to another user, be sure that they also receive this document. Page 4 of 18 Intimidator™ Spot LED 150 User Manual Rev. 8...

  • Page 5: Introduction

    2. I NTRODUCTION Product Overview Adjustable Lens Moving Head Moving Yoke Cooling Fan LED Display Fuse Holder DMX In/Out Power In/Out Intimidator™ Spot LED 150 User Manual Rev. 8 Page 5 of 18...

  • Page 6: Product Dimensions

    Product Dimensions Page 6 of 18 Intimidator™ Spot LED 150 User Manual Rev. 8...

  • Page 7: Setup

    Product Other products You can power link up to 6 Intimidator™ Spot LED 150 units on 120 VAC or up to 12 Intimidator™ Spot LED 150 units on 230 VAC. The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local CHAUVET®...

  • Page 8: Mounting

    Before mounting the product, read and follow the Safety Notes. Orientation The Intimidator™ Spot LED 150 may be mounted in any position; however, make sure adequate ventilation is provided around the product. · Rigging Before deciding on a location, always make sure there is easy access to the product for maintenance and programming purposes.

  • Page 9: Operation

    Pan 180 PA18 Tilt 270 Ti27 Manual Tilt Tilt 180 Ti18 Select Tilt angle range Range Tilt 90 Ti 9 Reset rESt Resets fixture Load LoAd Load factory defaults Intimidator™ Spot LED 150 User Manual Rev. 8 Page 9 of 18...

  • Page 10: Configuration (Dmx)

    DMX mode uses. If you choose a starting address that is too high, you could restrict the access to some of the product’s channels. The Intimidator™ Spot LED 150 uses up to 11 DMX channels in its 11-channel DMX mode, which defines the highest configurable address to 502.

  • Page 11: Dmx Channel Assignments And Values

    192 ó 255 speed 000 ó 003 Blackout 004 ó 007 Open Shutter 008 ó 215 Strobe (0–20 Hz) 216 ó 255 Open 000 ó 255 0–100% Dimmer Intimidator™ Spot LED 150 User Manual Rev. 8 Page 11 of 18...
  • Page 12 184 ó 199 Sound-active movement 4 200 ó 215 Sound-active movement 5 216 ó 231 Sound-active movement 6 232 ó 247 Sound-active movement 7 248 ó 255 Sound-active movement 8 Page 12 of 18 Intimidator™ Spot LED 150 User Manual Rev. 8...

  • Page 13: 6-Ch

    116 ó 121 Gobo 1 shake, from slow to fast 122 ó 127 Open 128 ó 191 Cycle effect with increasing speed 192 ó 255 Reverse cycle effect with increasing speed Intimidator™ Spot LED 150 User Manual Rev. 8 Page 13 of 18...

  • Page 14: Configuration (Standalone)

    (r tiL). Press <ENTER>. Pan/Tilt Angle You are able to restrict the pan and tilt angles on the Intimidator™ Spot LED 150 to achieve the effect you like. Range To select which pan angle range to use, do the following: Press <MODE/ESC>...

  • Page 15: Display Orientation

    (r diS). Press <ENTER>. Master/Slave The Master/Slave mode allows a single Intimidator™ Spot LED 150 unit (the “master”) to control the actions of one or more Intimidator™ Spot LED 150 units (the “slaves”) Mode without the need of a DMX controller. The master unit will be set to operate in either Automatic or Sound-Active mode, while the slave units will be set to operate in Slave mode.

  • Page 16: Technical Information

    Gently polish the external optics until they are free of haze and lint. Always dry the external optics carefully after cleaning them. Do not spin the cooling fan/fans using compressed air because you could damage it/them. Page 16 of 18 Intimidator™ Spot LED 150 User Manual Rev. 8...

  • Page 17: Technical Specifications

    104° F (40° C) I/O Connectors Connector Type Channel Range 3-pin XLR Sockets 6, 11 Ordering Product Name Item Code Item Number Intimidator™ Spot LED 150 08010176 INTSPOTLED150 Intimidator™ Spot LED 150 User Manual Rev. 8 Page 17 of 18...

  • Page 18: Returns

    If you live in the U.S., contact CHAUVET® World Headquarters (see below). · If you live in the UK or Ireland, contact CHAUVET® Europe Ltd. (see below). · If you live in any other country, DO NOT contact CHAUVET®. Instead, contact your distributor of record.
