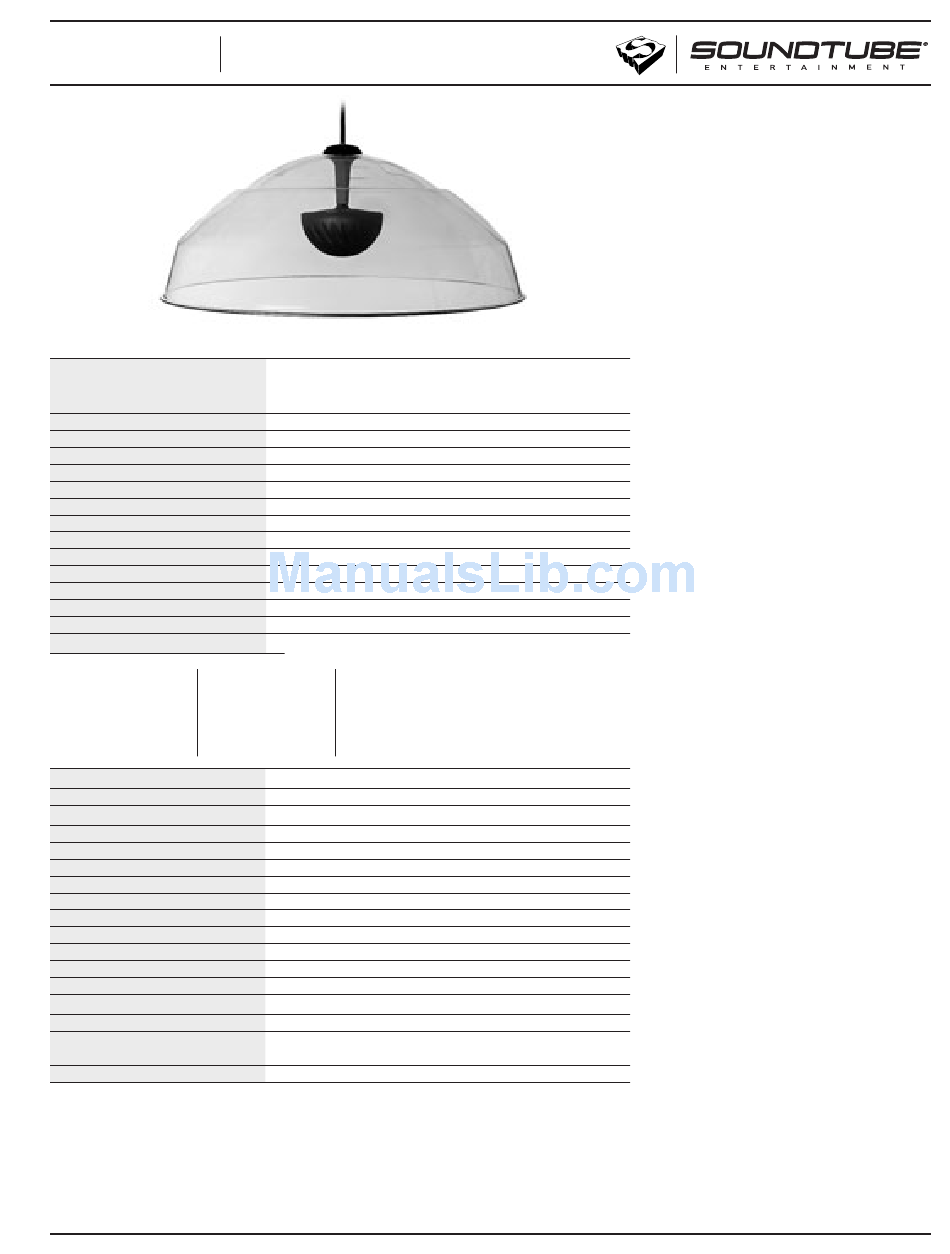

SoundTube Sound-Focusing Speaker FP6030 Specifications

FP6030 FP6030
Specifications: FP6030 Specifications: FP6030
System Type
1
Frequency Response (-3 dB)
1
Low Frequnecy (-10 dB)
Max. Program Power
2
Max. Continuous Power RMS
Max. SPL dB @ 0.5 M RMS
3
Sensitivity dB @ 1W/0.5 M
Impedance (nominal)
Coverage Angle (-6 dB @ 2 kHz)
Coverage Angle (-6 dB @ 10 kHz)
Directivity Factor (Q)
Directivity Index (DI)
8 Ohm/4 Ohm Input
Transformer Input Option
Optional Transformer Taps
70.7 V Output 100 V
10 W 93.5 dB 10 W
5 W 90.5 dB 5 W
2.5 W 87.5 dB 2.5 W
1.25 W 84.5 dB 1.25 W
Transducers
Full-Range Drivers
Network Type
High Pass
Voice Coil Diameter
Dome Material
Enclosure Material
Grille (Protective Driver Guard)
Colors
Dome Diameter
Dome Height
Weight
Shipping Weight
Accessories
Included
Optional
Packaging
1 Frequency response is measured in half & full space and includes a low-frequency peak > + 3 dB.
2
Continuous power rating, EIA-426-B test.
3 2.83 Volts at a distance of 0.5 meter.
SoundTube continually develops new product innovations and improvements. Updates to existing
products without prior notice are an example of SoundTube's drive for constant improvement.
© 2005 SoundTube Entertainment, Inc. All rights reserved. PN TS-FP6020 REV 04.25.05
Sound-Focusing Speaker
Technical Information for System Engineers
2 x 25 mm Stereo or mono high-directivity (8 Ohm stereo,
4 Ohm mono). Optional transformer for distributed systems
(25/70.7/100 Volt).
143 Hz – 21.5 kHz
104 Hz – 22.0 kHz
30 Watts
15 Watts
92.5 dB S/95.5 dB M
80.5 dB stereo, 83.5 dB mono
8 Ohm stereo, 4 Ohm mono (bridged)
41º (averaged)
48º (averaged)
14.16 (averaged 140 Hz - 10 kHz); 14.23 @ 2 kHz
9.06 (averaged 140 Hz to 10 kHz); 26.48 @ 2 kHz
Hardwire lead
4-Position tap switch in supplied junction box
Output 25 V Output
93.5 dB 1.25 W 84.5 dB
90.5 dB 0.63 W 81.5 dB
87.5 dB 0.32 W 78.5 dB
84.5 dB 0.16 W 75.5 dB
Twin 25 mm (1.0 in) full-range aluminum convex transducers
75 Hz or 350 Hz, switchable
20.5 mm (0.81 in)
Custom molded PETG, clear
High impact polystyrene
High impact polystyrene
Clear dome, black enclosure, custom dome colors available
781 mm / 30.75 in
333 mm / 13.1 in
4.1 kG / 9.0 lbs
9.3 kG / 20.5 lbs
Cable hanging bracket, mounting bushing & hardwire lead
Decorative SoundSleeve™(AC-CPSU), Wall Mount Bracket
(AC-WB3), Junction Box (AC-FP6-XFMR)
1 Per box, bulk shipping available
Key Features Key Features
• Patented Dual-Parabolic™ dispersion
control technology provides a dramatic
hot spot with crisp stereo separation.
• 781 mm (30.75 in) Custom-molded
PETG clear polymer dome for minimal
visual impact.
• Twin 25 mm (1 in) convex aluminum
High Excursion Micro Transducers in
individually sealed enclosures for
stereo or mono music & messaging.
• Patented ZeroReflection™ enclosure tech-
nology for accurate sound reproduction.
• Narrow 41º coverage angle for sharp focus.
• Single-point balanced mounting for
easier and cleaner-looking installs.
• Shipped as individual units, bulk
shipping available.
• Optional wall bracket available.
• Custom colors & printed decorative
SoundSleeves™ available.
Description escription
The SoundTube FP6030 incorporates 2
full-range, high-performance 1.0" convex
aluminum dome High Excursion Micro
Transducers with patented Dual-Para-
bolic™ sound dome technology to deliver
a targeted audio footprint for high-defini-
tion music and messaging applications.
Standard model ships as 8 Ohm (or 4 Ohm
bridged) with optional 25/70.7/100 Volt
transformer available. Mounting hard-
ware is included; optional wall bracket is
available.
Applications Applications
Tight coverage, wide-range stereo
sound (104 Hz – 22 kHz, - 10 dB) and true
audio containment (43º @ 2 kHz, - 6 dB)
make the FP60330 the ideal choice for
focused audio applications. Applications
include museums kiosks, P.O.P. displays,
trade shows, digital signage, or anywhere
contained high-fidelity stereo or mono
sound is required.
Patented Dual-Parabolic atented Dual-Parabolic™ ™
Technology Technology
By incorporating patented Dual-Para-
bolic™ dome technology, the FP series
provides a dramatic hot-spot with crisp
stereo separation. With sound waves
