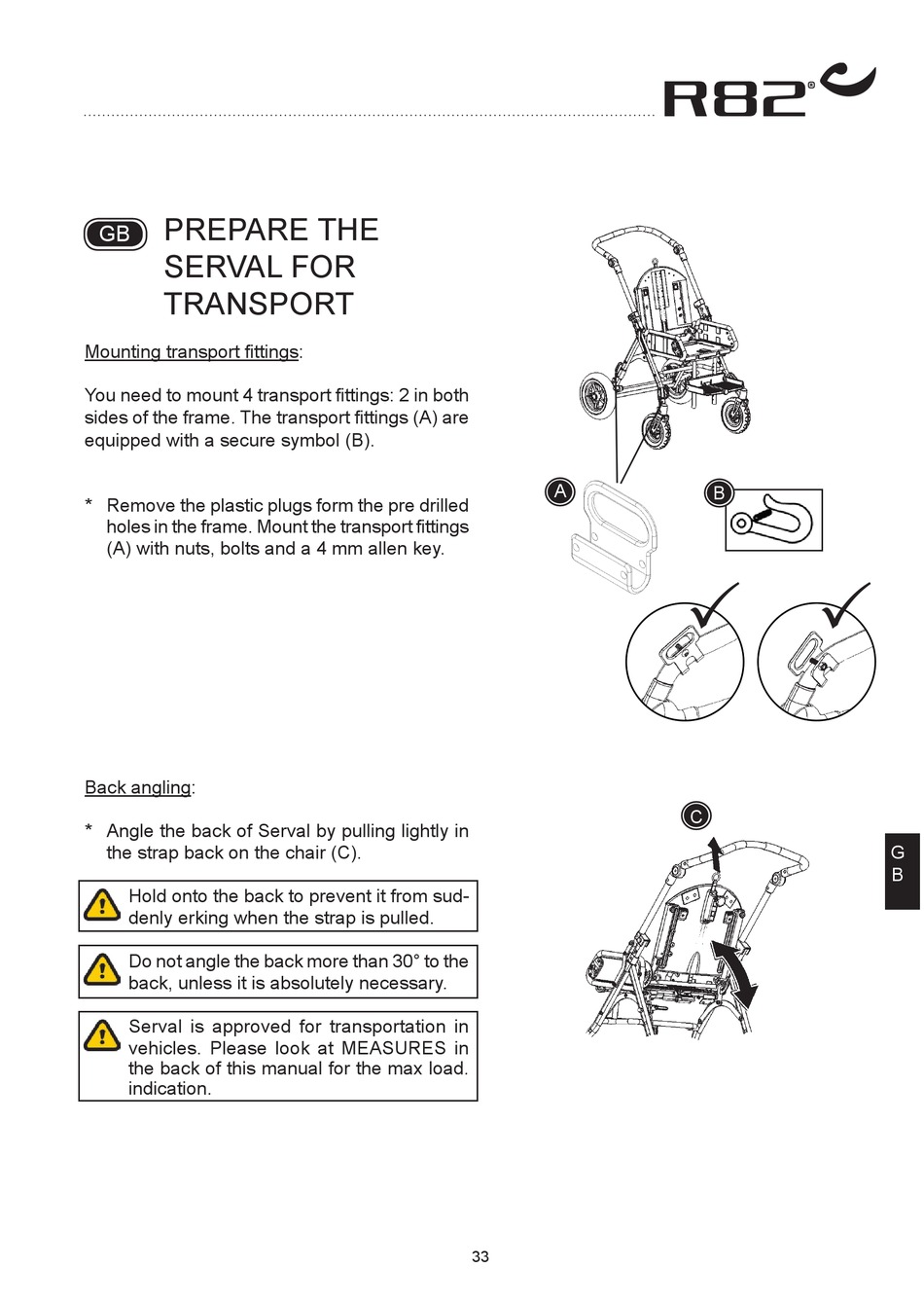

PREPARE THE
GB
SERVAL FOR
TRANSPORT
Mounting transport fittings:
You need to mount 4 transport fittings: 2 in both
sides of the frame. The transport fittings (A) are
equipped with a secure symbol (B).
* Remove the plastic plugs form the pre drilled
holes in the frame. Mount the transport fittings
(A) with nuts, bolts and a 4 mm allen key.
Back angling:
* Angle the back of Serval by pulling lightly in
the strap back on the chair (C).
Hold onto the back to prevent it from sud-
denly erking when the strap is pulled.
Do not angle the back more than 30° to the
back, unless it is absolutely necessary.
Serval is approved for transportation in
vehicles. Please look at MEASURES in
the back of this manual for the max load.
indication.
