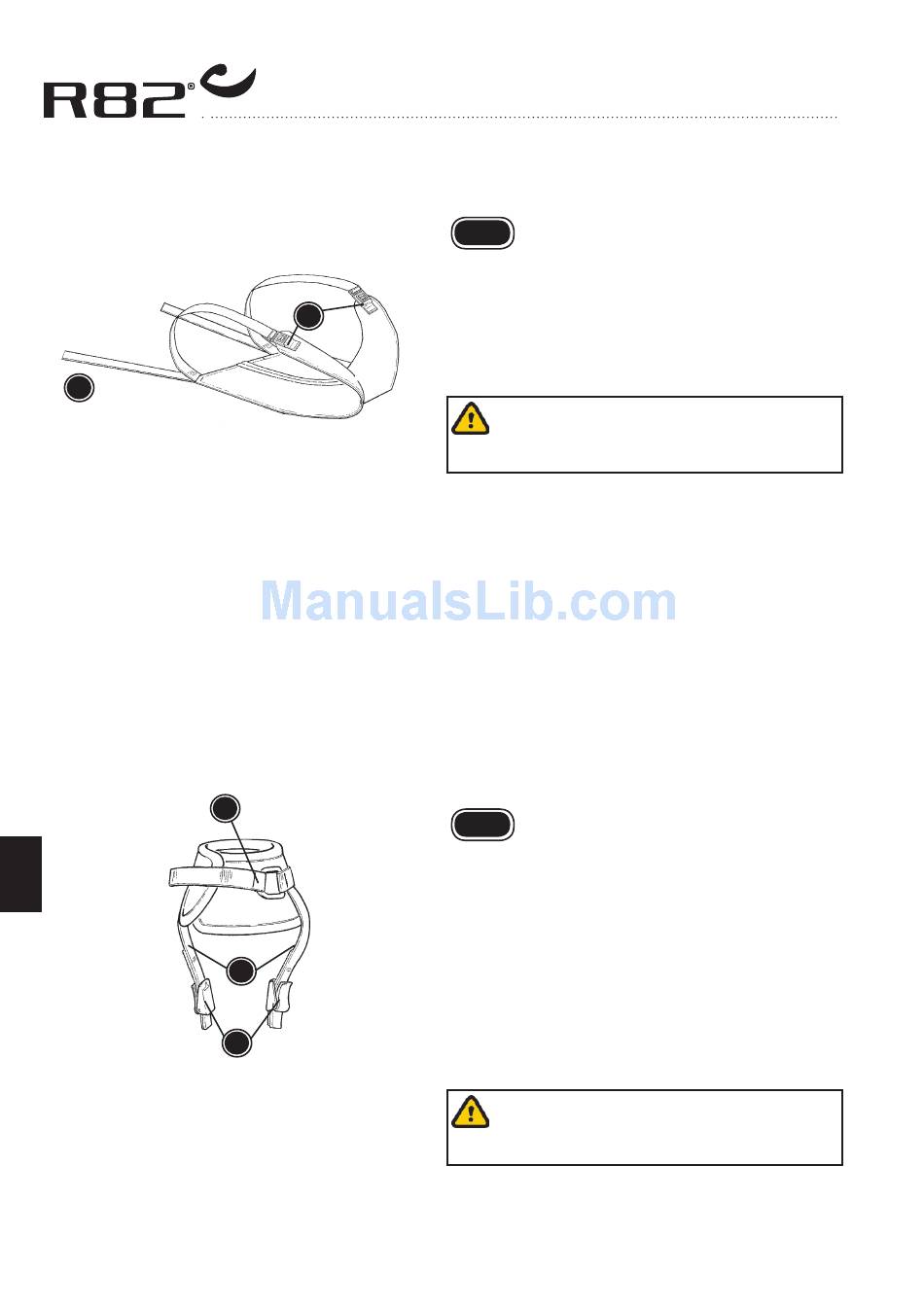

PELVIS HARNESS

GB
* Open the buckles (G).
* Mount the straps (D) in the belt fittings under
the seat (D).
* Place the user on the harness and close the
buckles (G) over the thighs.
Take care that all the fixations and adjust-
ments are placed and fitted correctly and
check it on a regular basis.

ANKLE STRAPS

GB
The ankle straps can be opened and closed by
using the velcro or the buckle (A).
Follow the instructions below for mounting.
* Remove the buckles (C).
* Pull the straps (B) through the slides in the
foot plates.
* Mount the buckles (C) again and make sure
the straps do not slide off.
Take care that all the fixations and adjust-
ments are placed and fitted correctly and
check it on a regular basis.
