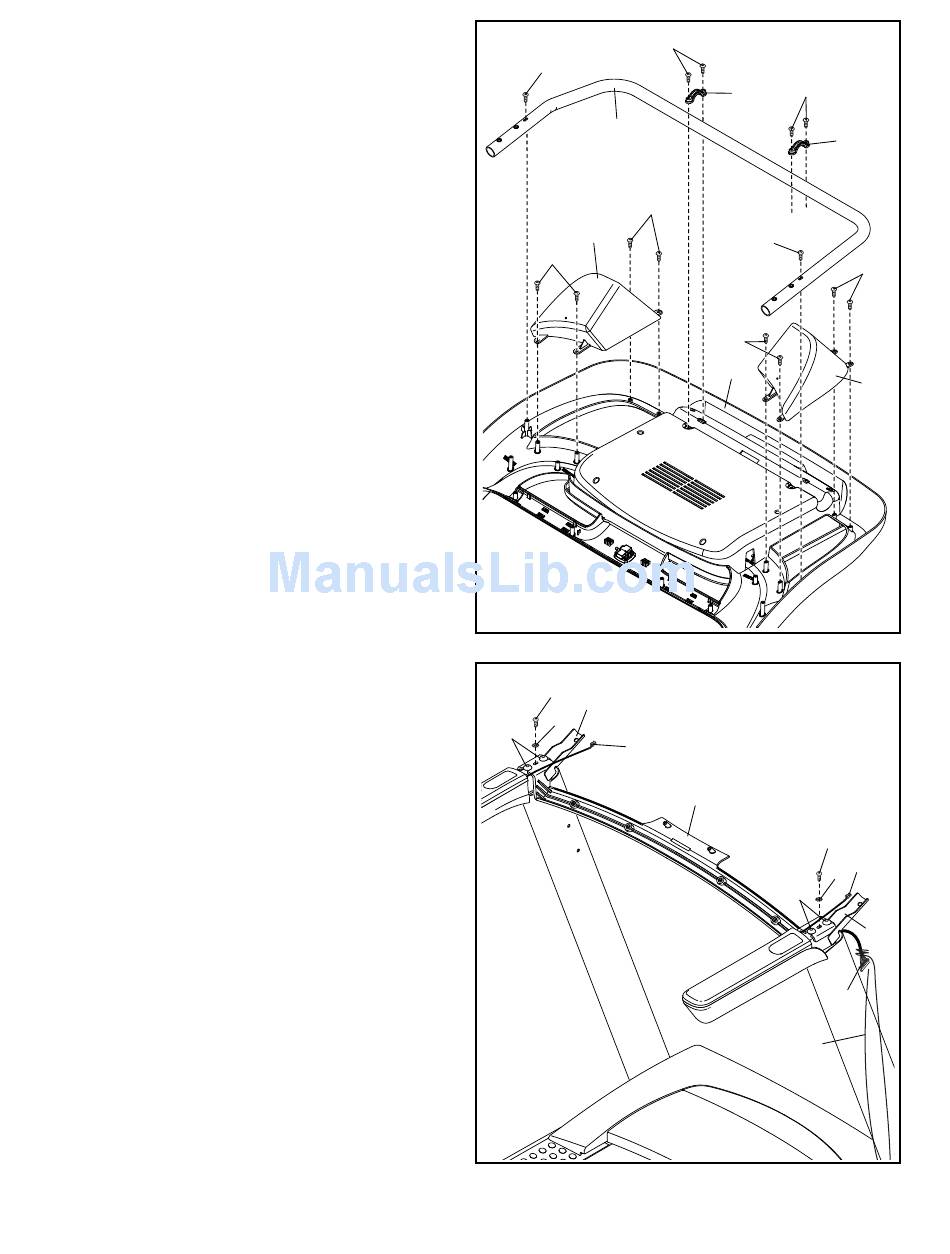

10. Identify the Right and Left Trays (27, 36).
Attach the Trays (27, 36) to the Console Base
(64) with eight #8 x 1/2" Screws (1); do not
overtighten the Screws.
Reattach the Console Frame (18) with the six #8
x 3/4" Screws (2) and the two Console Clamps
(41) that you removed in step 9; do not over-
tighten the Screws.
11. IMPORTANT: To avoid damaging the Pulse
Crossbar (93), do not use power tools and do
not overtighten the #10 x 3/4" Screws (9).
Orient the Pulse Crossbar (93) as shown. Attach
the Pulse Crossbar to the Handrails (86) with two
#10 x 3/4" Screws (9) and two #10 Star Washers
(5); start both Screws, and then tighten them.
Make sure not to pinch the Upright Wire (81)
or the handrail wires (G).
Next, firmly tighten the four 5/16" x 2 1/2"
Screws (28).
Then, remove the wire tie from the Upright Wire
(81).
