CONCEPT2 DYNAMIC INDOOR ROWER
Assembly continued

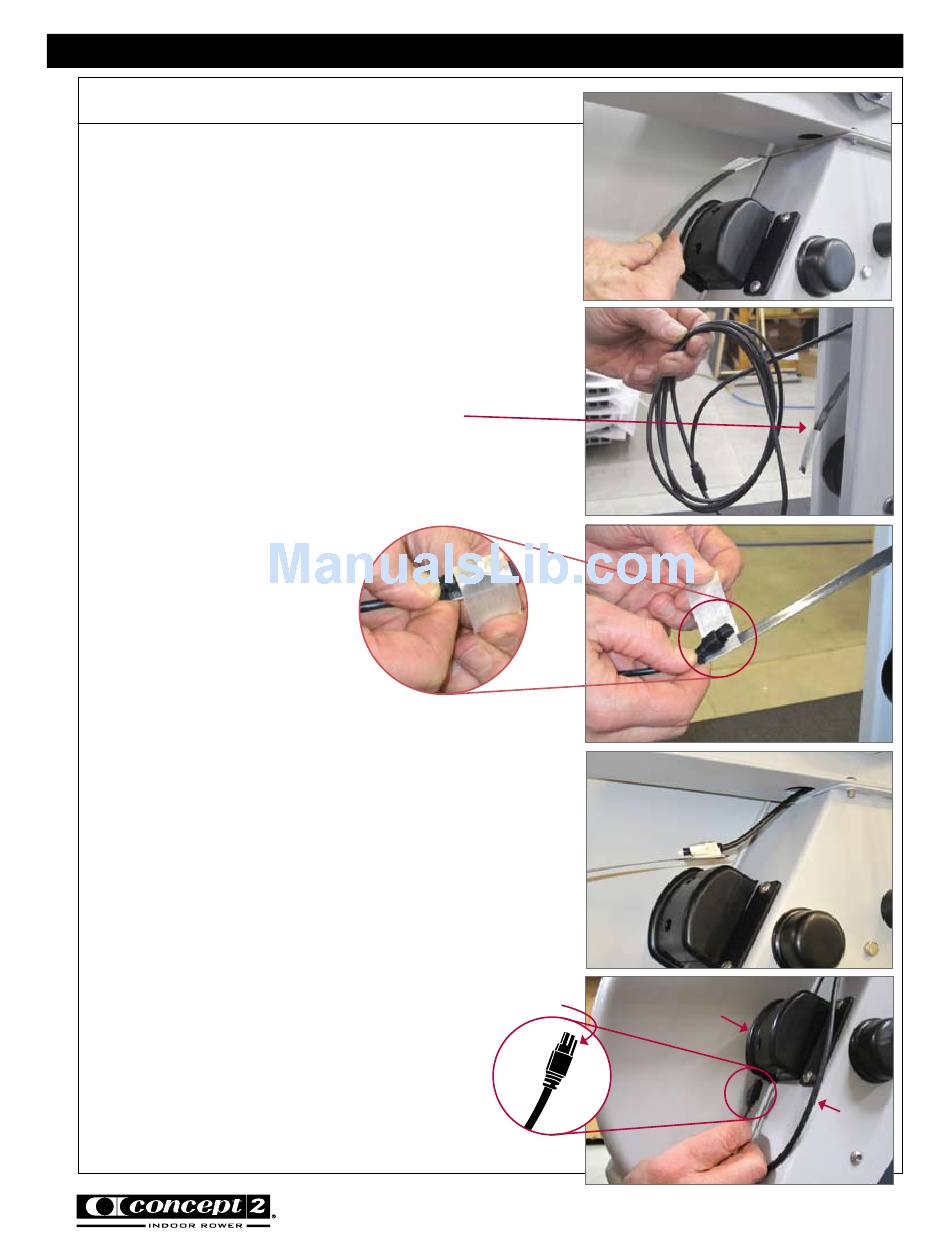

Step 9: Install the Generator Cable
Uncoil the black installation leader tape by removing
the blue tape. DO NOT remove the white tape on
the end.
At the back end of the shuttle channel near the
flywheel, feed the white-taped end of the black
installation leader tape through the hole in the
underside of the rail assembly. See photo P.
Feed it all the way through the rail assembly until it
comes out the other end. See photo Q.
Partially unwrap the white tape
and wrap it around the generator
cable plug, covering the plug.
See photo R.
Pull the black installation leader tape (with the
generator cable attached) back through the
rail assembly until it comes out the hole in the
underside of the rail assembly. See photo S.
Detach the installation leader tape from the
generator cable and plug the generator cable into
the black generator on the flywheel. See photo T.
Be careful to position so the retainer clip is as
shown in the drawing.
Note: When unplugging the generator cable from
generator, a small tool may be required to depress
the retainer clip.
photo P
photo Q
photo R
photo S
Retainer Clip
photo T
Page 6
012611
Generator
Generator
Cable
CONCEPT2.COM
