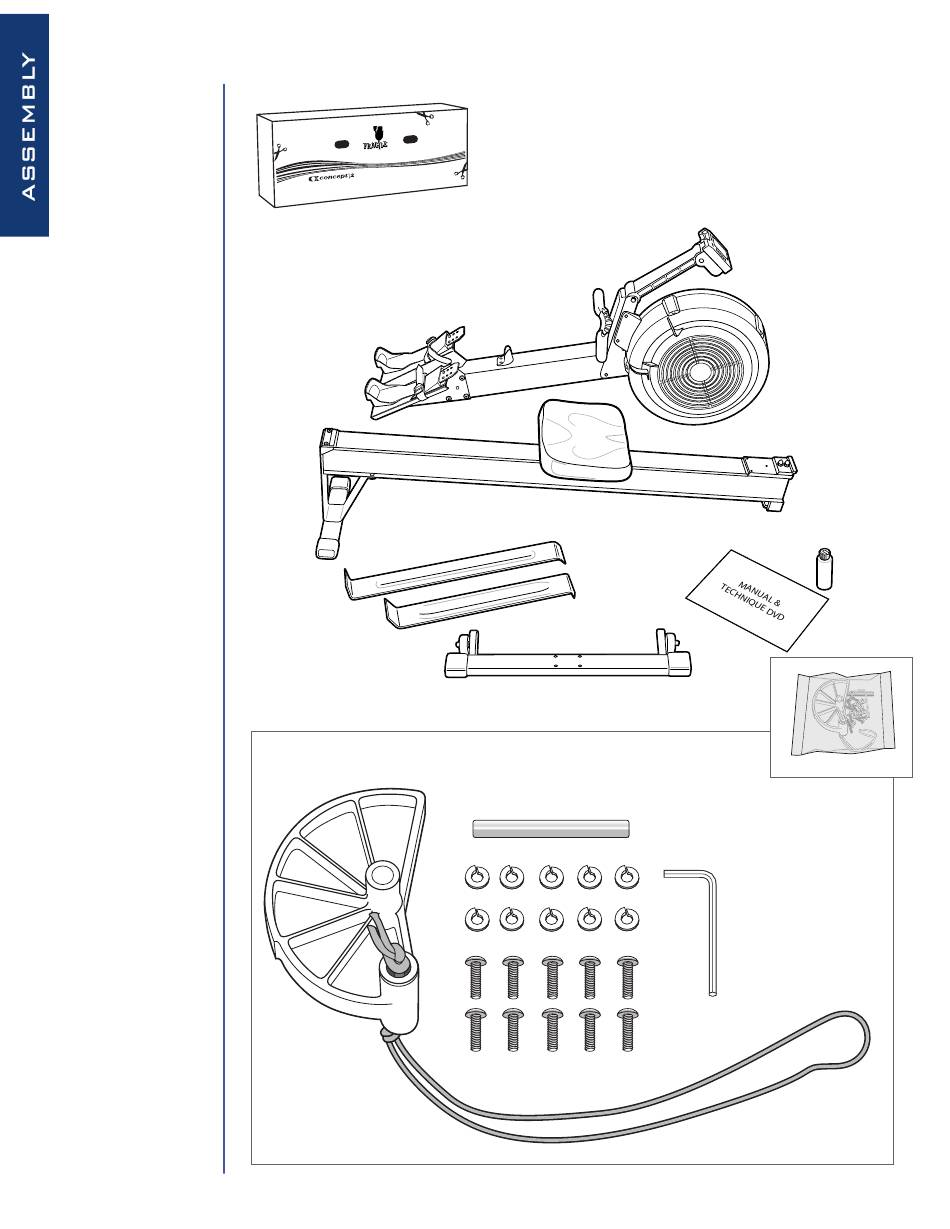

unpacking

your
concept2
indoor
rower
2
PN 1946
PN 1173
PN 1172
contents of parts bag (pn1752)
PN 1792
You should find the following parts for your
Indoor Rower in this shipping box. If any
parts are missing, please call us toll-free at
1.800.245.5676.
PN 1936
PN 296
PN 1935
PN 1144
PN 1205
PN 1248
PN 1752
PN 1225

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Concept2 D1

  • Page 1 You should find the following parts for your your Indoor Rower in this shipping box. If any concept2 parts are missing, please call us toll-free at indoor 1.800.245.5676. rower PN 1936 PN 1946 PN 296 PN 1173 PN 1172...
  • Page 2 tool needed: parts needed: Allen Wrench (provided) 4 washers assembling 4 screws front leg 3/4” or 2cm 23.5” (60cm) long 19” (49cm) short Note that the longer leg (I) attaches to same side as the wheels.
  • Page 3 attaching tool needed: parts needed: Allen Wrench (provided) 4 washers 4 screws front leg 3/4” or 2cm Attach the front leg as shown in the illustration. Note the leg lengths. 23.5” (60cm) 19” (49cm) This is an illustration of the bottom view of the front end/flywheel housing.
  • Page 4 assembling parts needed: tool needed: & installing 2 washers Allen Wrench (provided) 2 screws frame lock 3/4” or 2cm 1. Insert axle through axle tube on framelock. 2. Place framelock between footplates on Indoor Rower. The two footplates may need to be pulled apart slightly for the axle tube to fit.
  • Page 5 attaching monorail Place the flywheel and monorail sections of the Indoor Rower end to end. 1. Using one of the footstraps as a handle, lift the footboard end of the flywheel section until it rolls on the caster wheels. Lift the end of the monorail to the same level.
  • Page 6 detaching 1. Release the framelock from the locked position by pulling up on the rope, allowing the framelock to rotate into the unlocked position. monorail unlocked 2. Using the footstrap, lift the 3. Remove monorail with the monorail slightly with one other hand.
