T-27 DRIVER
PN 2230
x 2
x 3
PN 7268
PN 2394
x 2
x 27
4 1/4" (10.8 cm)
5/8" (1.6 cm)
PN 7267
PN 1297
x 6
1" (2.5 cm)
PN 1247
StrengthErg weight: 92 lb (42 kg)
Space required for use (training area): 38 in x 80 in (97 cm x 203 cm)

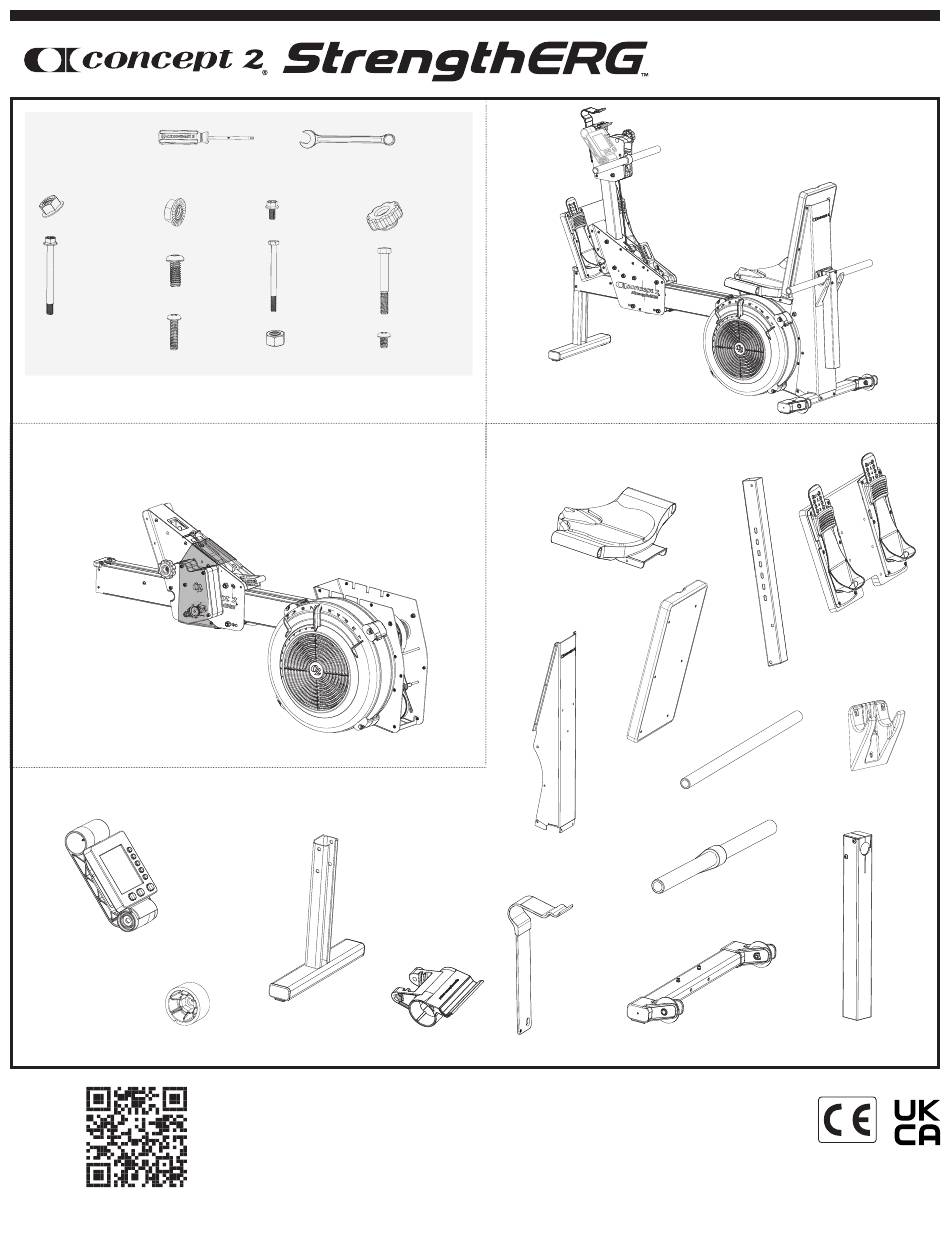

StrengthErg Assembly
BOX 1
*Optional
concept2.com/support/strengtherg
x 2
9/16" Wrench
PN 5223
x 2
x 1
3/4" (1.9 cm)
PN 7120
PN 7263
x 1
x 1
3 1/4" (8 cm)
3" (7 .6 cm)
PN 1224
PN 1268
x 1
x 1
PN 1271
3/8" (1 cm)
PN 1238
