Specifications
Wingspan:
Length:
Weight with Battery:
Battery:
Charger:
Transmitter:
On Board Electronics:
Instruction Manual
11.4 in (290mm)
10.8 in (275mm)
0.5 oz (14g)
50mAh 1S 3.7V LiPo (included with RTF and WOT)
1S 3.7V LiPo (included in transmitter with RTF and DC USB
with WOT)
3 channel 2.4GHz w/LiPo charger (included with RTF,
required for WOT)
3 in 1 receiver/ESC/servo and magnetic actuator (installed
in RTF and WOT)
1
Advertisement
Table of Contents
Related Manuals for Ares TIGER MOTH 75
Summary of Contents for Ares TIGER MOTH 75
-
Page 1: Specifications
Instruction Manual Specifications Wingspan: 11.4 in (290mm) Length: 10.8 in (275mm) Weight with Battery: 0.5 oz (14g) Battery: 50mAh 1S 3.7V LiPo (included with RTF and WOT) Charger: 1S 3.7V LiPo (included in transmitter with RTF and DC USB with WOT) Transmitter: 3 channel 2.4GHz w/LiPo charger (included with RTF, required for WOT) -
Page 2: Table Of Contents
Introduction ..........................3 Safety Precautions and Warnings ....................3 FCC Information ......................... 4 Tiger Moth 75 RTF (Ready To Fly) Contents ................5 Tiger Moth 75 WOT (Without Transmitter) Contents ..............5 Required to Complete........................ 6 Before the First Flight Checklist ....................7 Flight Checklist ........................... -
Page 3: Introduction

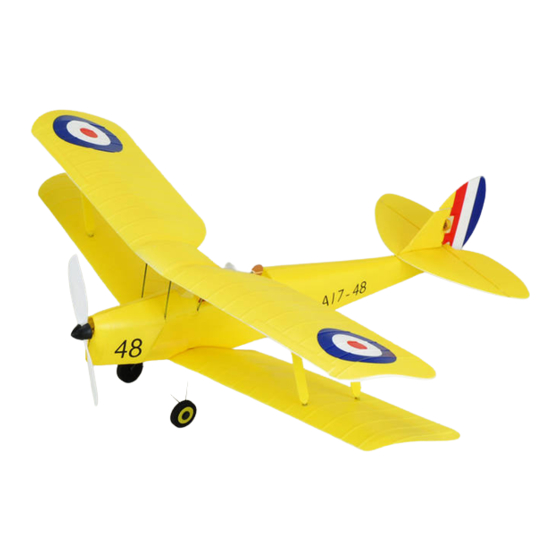

WWII and beyond. Weighing in at only 14 grams (0.5 oz) ready to fly, the Tiger Moth 75 is a great choice when looking for a lightweight airplane to fly in more places than ever before. The nano micro size... -
Page 4: Fcc Information
As the user of this product you are solely and wholly responsible for operating it in a manner that does not endanger yourself and others or result in damage to the product or the property of others. This model is controlled by a radio signal that is subject to possible interference from a variety of sources outside your control. -
Page 5: Tiger Moth 75 Rtf (Ready To Fly) Contents
Tiger Moth 75 RTF (Ready-To-Fly) Contents Item Description Not Available Separately . Tiger Moth 75 Nano Micro RTF Airframe AZS1158AMD2....M3LPA 100C Micro 3 Channel LP Airplane Transmitter w/100mA Charger, Mode 2 Not Available Separately . 4 AA Batteries AZSB501S10UM....50mAh 1 Cell/1S 3.7V 10C LiPo Battery, Ultra Micro Connector... -
Page 6: Required To Complete
Required to Complete The Tiger Moth 75 RTF (Ready To Fly) version includes everything needed to fly right out of the box. There’s nothing extra to buy or provide! The Tiger Moth 75 WOT (Without Transmitter) version requires the following items: Compatible Ares 2.4GHz 3+ channel transmitter, including (as of August 2012) one of... -
Page 7: Before The First Flight Checklist
Before the First Flight Checklist PLEASE NOTE: This checklist is NOT intended to replace the content included in this instruction manual. Although it can be used as a quick start guide, we strongly suggest reading through this manual completely before proceeding. Remove and inspect all contents Install the four AA batteries in the transmitter (for RTF version models) Begin charging the flight battery (connect it to a suitably compatible LiPo charger) -
Page 8: Lipo Battery Warnings And Usage Guidelines
And although the 50mAh 1 Cell/1S 3.7V 10C LiPo Battery (AZSB501S10UM) included with the Tiger Moth 75 is intended to be charged safely using either the LiPo battery charger built into the M3LPA 100C Micro 3 Channel LP Airplane Transmitter w/100mA Charger (AZS1158AMD2;... - Page 9 LiPo cells should not be discharged to below 3.0V each under load. In the case of the 1 Cell/1S 3.7V LiPo battery used to power the Tiger Moth 75 you will not want to allow the battery to fall below 3.0V during flight.
-
Page 10: Charging The Lipo Flight Battery
Charging the LiPo Flight Battery You must charge the included 50mAh 1 Cell/1S 3.7V 10C LiPo Battery (AZSB501S10UM) using either the LiPo battery charger built into the M3LPA 100C Micro 3 Channel LP Airplane Transmitter w/100mA Charger (AZS1158AMD2; included with the RTF version), the 101C 1 Cell/1S 3.7V LiPo, 0.1A DC USB Charger (AZSC101CUSB;... - Page 11 When the battery is connected to the charge lead securely and with the proper polarity the ‘CHG (charge)’ LED indicator on the transmitter will glow solid yellow. The battery will be charging anytime the LED indicator is glowing solid yellow and whether or not the transmitter is powered on.
-
Page 12: Installing The Transmitter Batteries
While the white connectors are ‘keyed’ to minimize the risk of a reverse polarity connection, if you force them it is possible to make connection with the incorrect polarity potentially causing damage to the battery and/or charger. When the red markings are properly aligned for correct polarity, connecting the white connectors should require only a minimal amount of pressure to achieve the light ‘click’... -
Page 13: Transmitter Details
Transmitter Details The RTF version Tiger Moth 75 includes an M3LPA 100C Micro 3 Channel LP Airplane transmitter equipped with 2.4GHz technology, digital trims and a built in 1 cell/1S 3.7V, 100mA LiPo battery charger. Low Battery Power Indications When the AA battery power drops to a level that’s too low for safe continued operation, the transmitter offers the following indications: •... -
Page 14: Installing The Lipo Flight Battery
Installing the LiPo Flight Battery NOTE: You must ALWAYS turn the transmitter on first, BEFORE connecting/installing the LiPo flight battery. And before proceeding with the following steps, please be sure the transmitter is powered on. After the LiPo battery has been fully charged it’s ready to be installed in the airplane. However, the first step before installing the battery is to connect it to the 3 in 1 control unit. -
Page 15: Control Unit Initialization And Arming
Control Unit Initialization and Arming The Tiger Moth 75 is equipped with a compact and advanced 3 in 1 control unit. The control unit is a lightweight combination of a 2.4GHz receiver, electronic speed control (ESC) and servo. - Page 16 Power the transmitter on and confirm that the ‘POWER’ LED indicator is glowing solid red. Then, connect the LiPo flight battery to the control unit and install it on the airplane. NOTE: If this will be the first flight, or the first flight following repairs, you should center the elevator and rudder (aileron) control trims.
- Page 17 ESC/motor should be armed and respond to control stick inputs accordingly. After confirming the control unit is initialized and the ESC/motor has armed properly your Tiger Moth 75 is ready to fly! However, please review the following sections of this manual BEFORE proceeding with the first flight.
-
Page 18: Flight Controls And Trimming
Flight Controls and Trimming In the event you are not familiar with the controls of the Tiger Moth 75 please take the time to familiarize yourself with them as follows and before attempting your first flight. The left hand stick on the transmitter controls the throttle. When the left hand stick (also known as the ‘throttle’... - Page 19 IMPORTANT NOTE: As is typical of most ‘3 channel’ models that are equipped with a rudder for primary ‘turning’ control, the right hand stick/‘aileron’ channel is used to control the rudder of the Tiger Moth 75. This helps to ensure an easier transition to controlling ‘4 channel’ models equipped with ailerons later on.
- Page 20 Moving the stick to the left will move the rudder to the left. This will roll/turn the airplane to the left. Moving the stick to the right will move the rudder to the right. This will roll/turn the airplane to the right. NOTE: The rudder may not always travel the same amount to the left and to the right.
-
Page 21: Selecting A Flying Area
15 feet by 15 feet with 8+ foot high ceilings. The Tiger Moth 75 can also be flown in larger indoor spaces or even outdoors in calm to light wind conditions. - Page 22 To perform an ROG take off set the model on the takeoff surface then raise the left hand/throttle stick to approximately the 3/4 to full throttle position. IMPORTANT NOTE: Due to the scale airframe design and landing gear/wheel positions it’s VERY important to hold FULL UP elevator when first starting and for most of the takeoff ‘roll’...
-
Page 23: Hints And Tips
3.7V 10C LiPo Battery (AZSB301S10UM; sold separately) or similar, to reduce the overall weight and flying speed of the Tiger Moth 75. This is helpful when flying in smaller indoor spaces, however, the lighter weight of the battery will result in a less nose heavy CG and the... -
Page 24: Repairs
Repairs The major airframe parts of the Tiger Moth 75 are molded from lightweight and durable EPS foam. Most damage can be repaired using transparent tape and/or Odorless, also known as ‘Foam Safe’, Cyanoacrylate (CA) glue. -
Page 25: Replacement Parts List
Description AZSB501S10UM 50mAh 1 Cell/1S 3.7V 10C LiPo Battery, Ultra Micro Connector AZS1107 Replacement Rotary Servo Mechanics: Trainer 100, Tiger Moth 75 AZS1157 Replacement Magnetic Actuator: Stick 75, Tiger Moth 75 M3LPA 100C Micro 3 Channel LP Airplane Transmitter w/100mA... -
