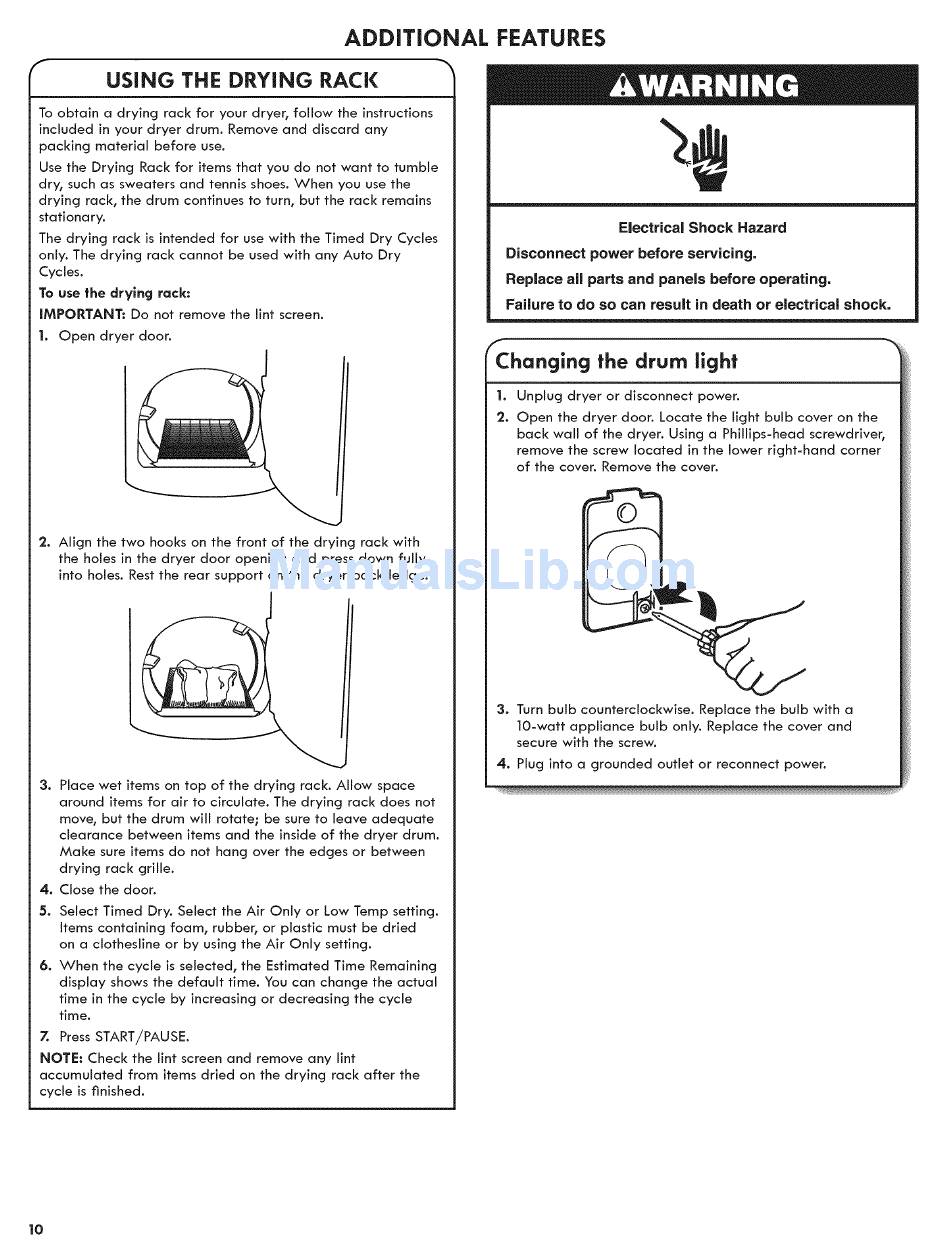

ADDiTiONAL
FEATURES
USING THE DRYING RACK
To obtain
a drying
rack for your dryer, follow
the instructions
included in your dryer
drum. Remove and discard
any
packing
material
before
use.
Use the Drying
Rack for items that you do not want to tumble
dry, such as sweaters
and tennis shoes. When
you use the
drying
rack, the drum continues
to turn, but the rack remains
stationary.
The drying
rack is intended
for use with the Timed
Dry Cycles
only. The drying
rack cannot
be used with any Auto Dry
Cycles.
To use the drying
rack:
iMPORTANT:
Do not remove
the Hnt screen.
1, Open
dryer door.
I
2. Align
the two hooks on the front of the drying
rack with
the holes in the dryer door
opening
and press down fully
into holes. Rest the rear support
on the dryer
back ledge.
I
3. Place wet items on top of the drying
rack. Allow space
around
items for air to circulate.
The drying
rack does not
move, but the drum will rotate;
be sure to leave adequate
clearance
between
items and the inside of the dryer
drum.
Make
sure items do not hang over the edges or between
drying
rack grille.
4. Close the door.
5. Select
Timed
Dry. Select the Air Only or Low Temp setting.
Items containing
foam,
rubber,
or plastic
must be dried
on a clothesline
or by using the Air Only
setting.
6. When
the cycle is selected,
the Estimated
Time Remaining
display
shows the default
time. You can change
the actual
time in the cycle
by increasing
or decreasing
the cycle
time.
7. Press START!PAUSE.
NOTE:
Check the lint screen and remove any lint
accumulated
from items dried
on the drying
rack after
the
cycle is finished.
Electrical
Shock
Hazard
Disconnect
power
before
servicing.
Replace
all parts and panels
before
operating,
Failure
to do so can result
in death
or electrical
shock.
fChanging
the drum light
1. Unplug
dryer
or disconnect
power.
2. Open
the dryer door. Locate the light bulb cover on the
back wall of the dryer. Using a Phillips-head
screwdriver,
remove
the screw located
in the lower right-hand
corner
of the cover. Remove the cover.
3. Turn bulb counterclockwise.
Replace
the bulb with a
lO-watt
appliance
bulb only. Replace
the cover and
secure with the screw.
4. Plug into a grounded
outlet
or reconnect
power.
I0
