Summary of Contents for Wincor Nixdorf BEETLE /Express

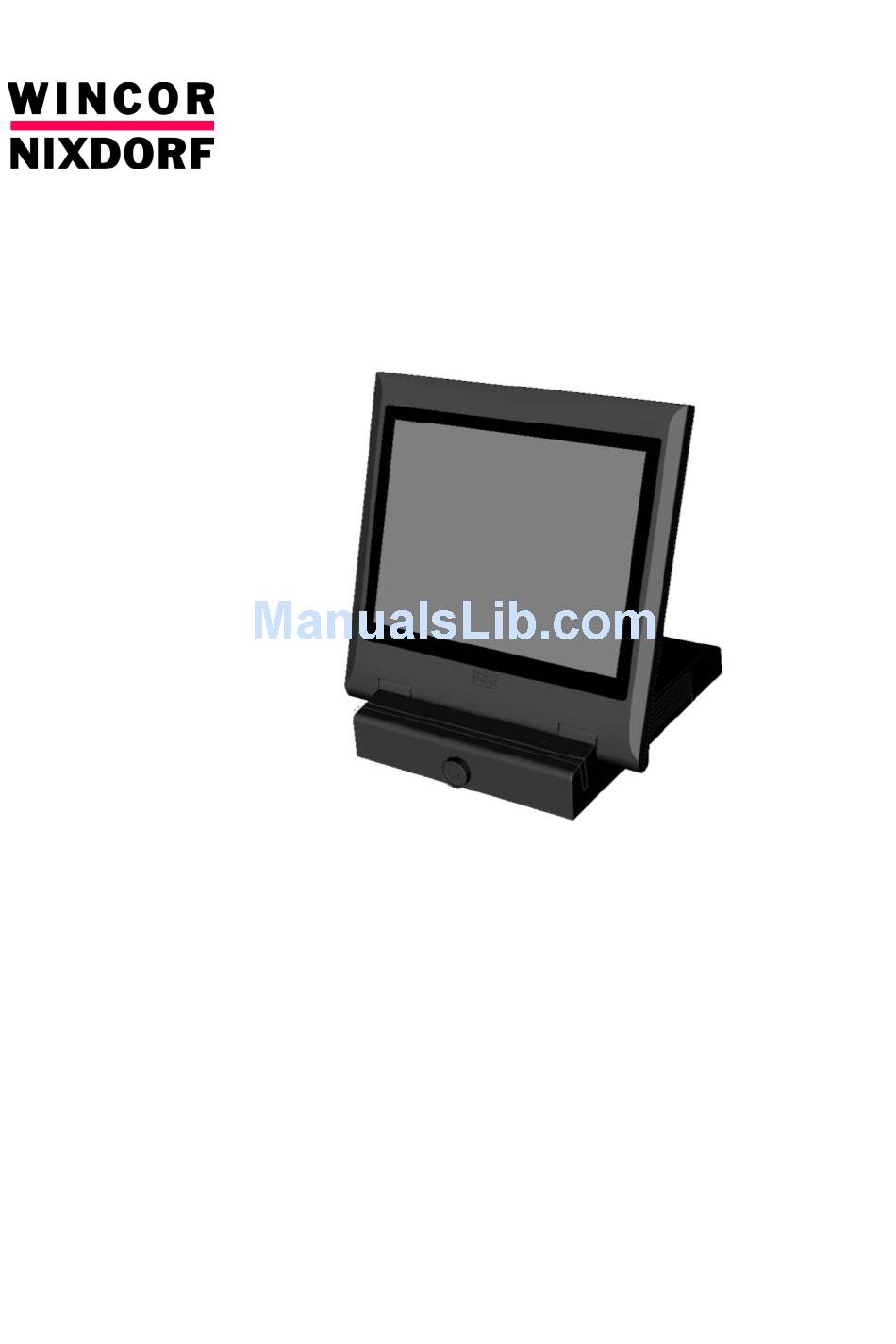

- Page 1 BEETLE /Express BEETLE /Express 15 Operating Manual...
- Page 2 Offenders will be liable for damages. All rights, including rights created by patent grant or registration of a utility model or design, are reserved. Delivery subject to availability; technical modifications possible. Copyright© Wincor Nixdorf International GmbH, 2012...
- Page 3 BEETLE /Express BEETLE /Express 15 Operating Manual Edition October 2013...
-
Page 4: Table Of Contents
Replacing the Lithium Battery ..........6 Recycling the system ..............8 Overview ..................9 Main Features ................9 Configuration .................10 Setting Up the system .............11 Power ON ................11 Indicator Light ..............13 Powering OFF ................13 BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... - Page 5 Customer display (optional) ...........20 Appendix...................21 Technical Data ...............21 I/O Port Rating ...............22 AC Power Adapter ..............23 Power Cord Selection ............24 Specification ................25 I/O connection ports ...............27 Rear Panel.................27 Side I/O ................28 BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C...
-
Page 6: Manufacturer's Certification
The device complies with the requirements of the EEC directive 2004/108/EC with regard to “Electromagnetic compatibility” and 2006/95/EC “Low Voltage Directive”. Tested Safety In addition, the device has received the UL symbol and cUL symbol. BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... -
Page 7: Fcc-Class A Declaration
The device complies with the requirements of the BSMI (Bureau of Standards, Metrology and Inspection, Ministry of Economic Affairs) directive CNS13438 with regard to “Electromagnetic compatibility” with the limits for a Class B product. BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... -
Page 8: Symbols Used In This Guide
Texts following this symbol are actions to be performed in WARNING order to avoid damage or injury. This symbol identifies paragraphs which contain general NOTE notes to facilitate use of the device and help avoid operating errors. BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... -
Page 9: Important Safety Precautions
If the liquid comes into contact with your eyes, consult a medical doctor immediately. Make sure that there is always free access to sockets used or to the electrical circuit-breakers of the house installation. BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... - Page 10 Only use accessories and extension components that have been approved by us. Nonobservance can result in damage to the system or violations of regulations concerning safety, radio interference and agronomical requirements. To clean the device only use cleaning agents approved by Wincor Nixdorf International GmbH. Repairs WARNING Repair work may only be carried out by authorized personnel.
-
Page 11: Replacing The Lithium Battery
Gently lift the edge of the Harddisk upward (1) so that the Harddisk could be lightly tilted in order to slide (2) and remove the Harddisk. (1) Tilt harddisk upward (2) Slide to remove Harddisk BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... - Page 12 Push the Latch and remove the Lithium Battery from its Socket Insert and press a new Lithium Battery of same type in the Socket BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C...
-
Page 13: Recycling The System
Please do not stick labels onto plastic case parts. This would help us to re-use components and material. But there are still some parts that are not reusable. Wincor Nixdorf Inter- national GmbH guarantees the environmentally safe disposal of these parts in a Recycling Centre, which is certified pursuant to ISO 9001 and ISO 14001. -
Page 14: Overview
10.4” Color TFT or 15” Color TFT Resistive Touch Magnetic swipe card reader (optional) Customer display (optional) Waiter Lock (optional) Note 1: support 9.5mm thick hard disk only BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... -
Page 15: Configuration
Overview Configuration The 3 optional devices (MSR, Waiter Lock and Customer Display) can be integrated as shown in the picture below. Display Customer display Waiter lock BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... -
Page 16: Setting Up The System
Insert the DC plug of the power supply into the DC jack. Route the cable as shown in the picture, make sure that the cable pass through the restrainer (add additional picture – point to DC jack). Cable restrainer DC jack BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... - Page 17 LED Indicator should be lighted RED. Press ON/OFF Button at the side of the system, the LED Indicator should change to GREEN. ON/OFF Button Indicator Light The system should boot up the Operating System. BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C...
-
Page 18: Indicator Light
Hard disk activity indication Powering OFF To power down normally, perform a shut down of the Operating System. The LED Indicator should turn to RED when shut down is completed. BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... -
Page 19: Adjusting The Viewing Angle Of Display
° ° screen. When the customer display is installed in the system, the recommended adjustment angle is from 30 to 70 ° ° 70° 30° 0° BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... -
Page 20: Operating The System
Use a soft, fine-meshed cloth to clean the surface. Dampen the cloth slightly and then clean the screen. A wrong maintenance may cause damages to the screen, which are not covered by guarantee or warranty. BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... -
Page 21: Magnetic Swipe Card Reader (Optional)
If the Waiter Lock is installed, ensure that magnetic card is not be brought close to it (min. 20mm away) as the magnetic field from the permanent magnet of the receptacle may corrupt the data in the card. BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... -
Page 22: Cleaning Instructions
Swipe the cleaning card through the card slot like the regular ID card. Repeat this a few times. Dispose of the cleaning card. BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... -
Page 23: Waiter Lock
(iButton). To read the electronic key (iButton), place it on the magnetic receptacle (as shown in picture below). Magnetic Receptacle Magnetic key (iButton) BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... - Page 24 Always keep the Magnetic Receptacle and Magnetic Key (iButton) clean. If you encounter difficulty in getting the Waiter Lock to read the information, please check and ensure that the contact is clean. BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C...
-
Page 25: Customer Display (Optional)
Adjust the angle of the main display screen appropriately to suit the usage of the customer display as well. Customer display BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... -
Page 26: Appendix
IEC 721-3-2 class 2K2 -25° to +60°C Storage IEC 721-3-1 class 1K2 +5° to +40°C Rated Input voltage 19V DC (nominal) Rated Input current 3.42A Certifications CE, FCC, CB, UL, cUL, TUV-GS, CCC, BSMI BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... -
Page 27: I/O Port Rating
Appendix I/O Port Rating Port Type Voltage Current Rating Rating 5.0VDC 0.5A Powered COM (combined 12VDC 0.5A COM1 & 2) 5VDC 0.75A Cash Drawer 0.14A BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... -
Page 28: Ac Power Adapter
Appendix AC Power Adapter The AC power adapter used must be Wincor Nixdorf’s qualified and has to meet the following minimum requirements and industry standards: Power Input 100 - 240 Vac, 50 to 60Hz, auto-ranging Power Output 19VDC 65W Approvals &... -
Page 29: Power Cord Selection
Safety Regulation of the country. Countries Safety Approvals Canada Germany Japan Taiwan BSMI China For other countries not mentioned in the above list, please check with the local authority. BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... -
Page 30: Specification
1x RJ12 cash drawer interface for 24V cash drawer 1x RJ45 LAN 10/100Mb/s 1x 19VDC power input NVRAM option 4Kb only Other Features Dual function Indicator: Power ON status (solid colour) and HDD activity (blinking) BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... - Page 31 1-Wire protocol Serial Number iButton only (DS1990A) note 1 Power Consumption Normal operation (idle) Normal operation (sleep) 2.2W 2.2W Note 1: recommended source Olitronic GmbH, Magnetic Key 95-D-04 BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C...
-
Page 32: I/O Connection Ports
Appendix I/O connection ports Rear Panel 4x USB COM1 COM2 19V IN Cashdrawer BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... -
Page 33: Side I/O
Appendix Side I/O Power Button BEETLE /Express, BEETLE /Express 15 – Operating Manual 01750229641 C... - Page 34 Published by Wincor Nixdorf Pte Ltd 151 Lorong Chuan New Tech Park #05 01 A/B Singapore 556741 Part No.: 01750229641 C...
