The motherboard provides the following jumpers for you to set the computer's
function. This section will explain how to change your motherboard's function through
the use of jumpers.

Clear BIOS Password Jumper: JPWD1

The jumper is used to clear the BIOS password. To clear the password, open
the jumper and restart your computer.

Clear CMOS Jumper: JCMOS1

There is a CMOS RAM onboard that has a power supply from external battery
to keep the data of system configuration. W ith the CMOS RAM, the system can
automatically boot OS every time it is turned on. If you want to clear the system
configuration, set the JCMOS1 (Clear CMOS Jumper ) to clear data.
MSI Reminds You...
To clear CMOS you should:
1. switch off the system and short 2-3 pin of the JCMOS1;
2. switch on the system again and the message "CMOS checksum
error" should appear;
3. switch off the system and return to 1-2 pin (Keep Data) position;
4. switch on again for operation.
Please avoid clearing CMOS while the system is on; it will damage
the mainboard.

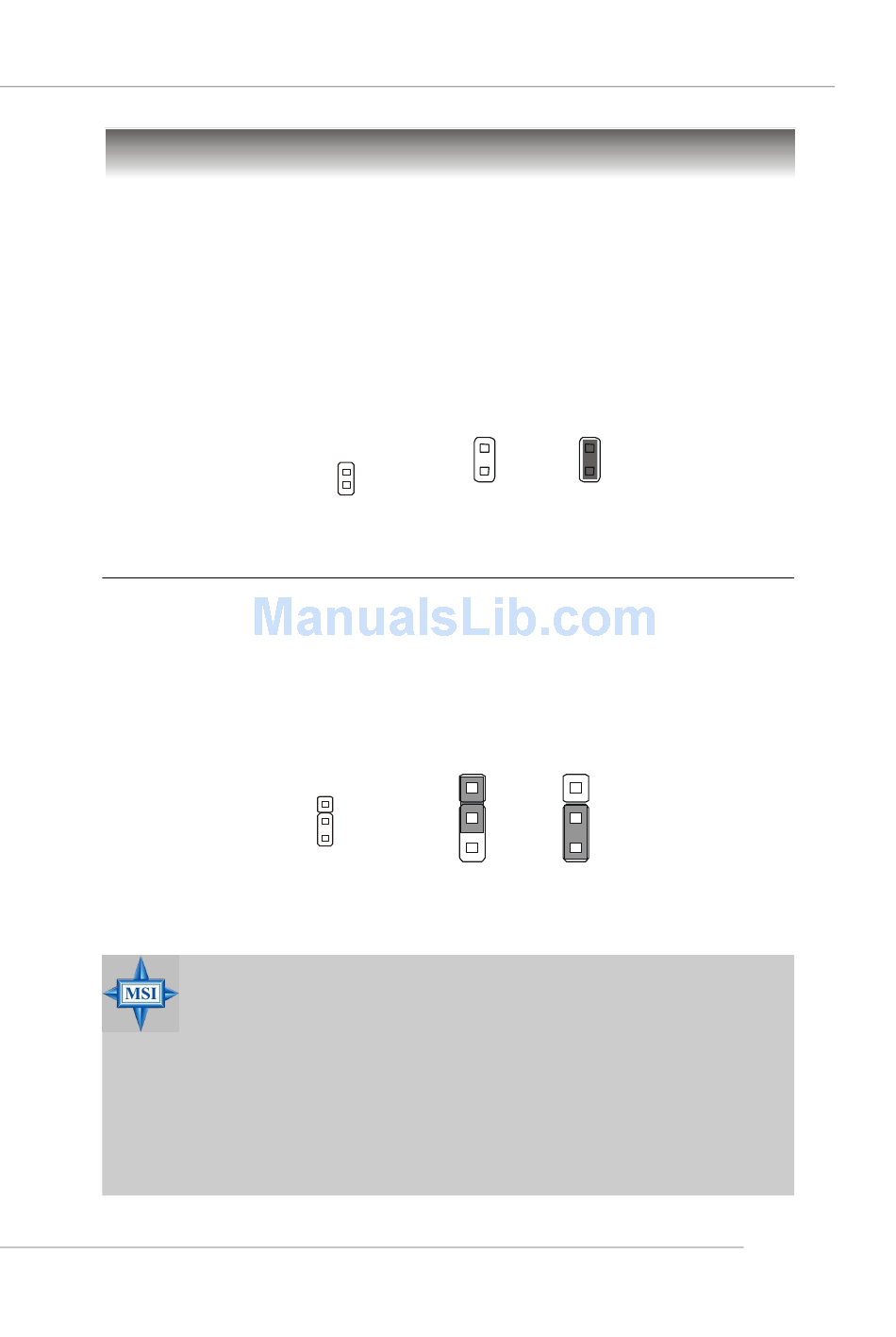

Jumpers

JPWD1
1
JCMOS1
Keep Data
Clear Normal
1 1
3 3
Clear Data
Hardware Setup
2-17
