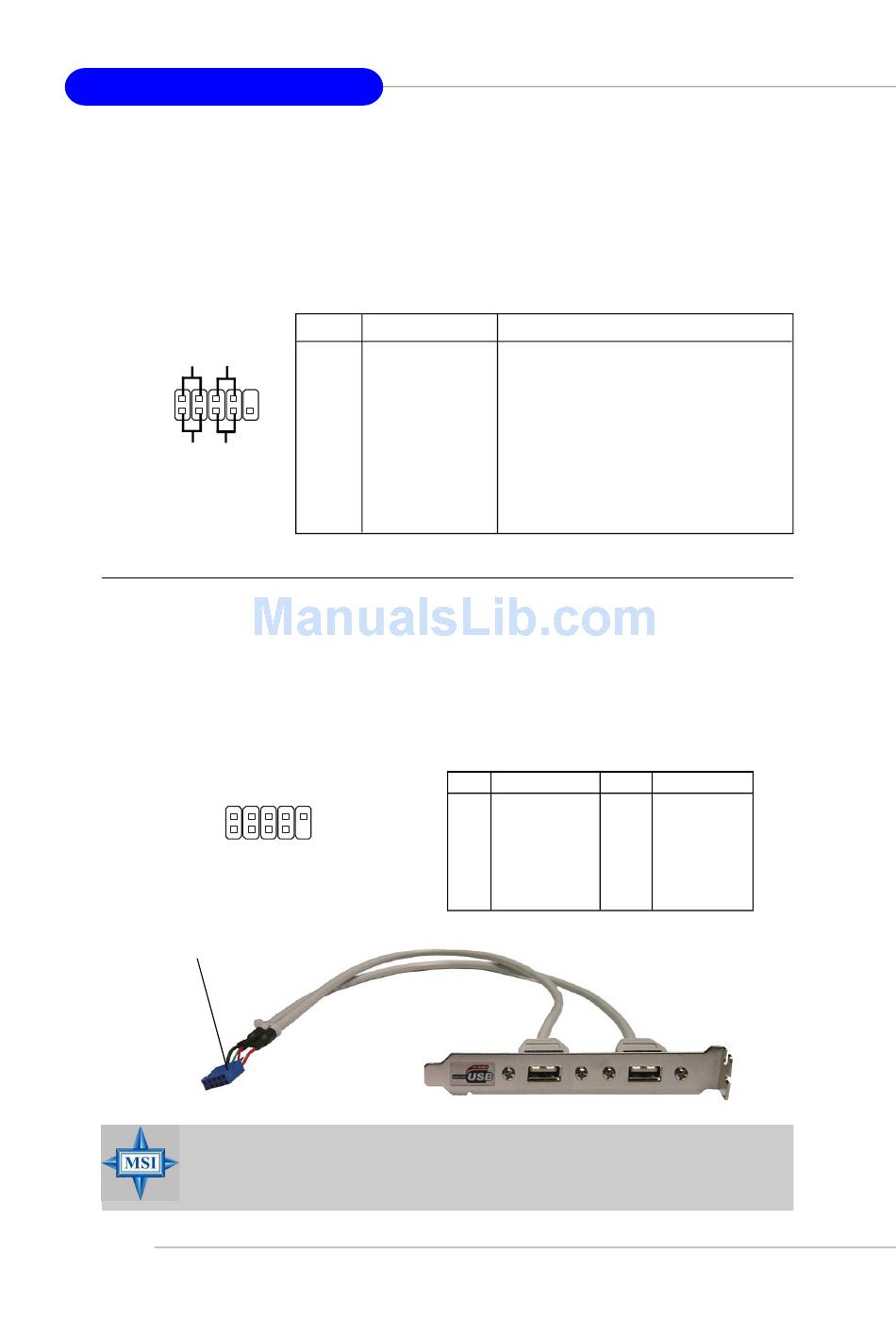

MS-7093 M-ATX Mainboard
Front Panel Connectors: JFP1
The mainboard provides one front panel connector for electrical connection to
the front panel switches and LEDs. The JFP1 is compliant with Intel
Connectivity Design Guide.
Power
Power
LED
Switch
2
JFP1
1
HDD
Reset
LED
Switch
Front USB Connectors: JUSB1 / JUSB2
The mainboard provides two standard USB 2.0 pin headers JUSB1 & JUSB2 .
USB 2.0 technology increases data transfer rate up to a maximum throughput of
480Mbps, which is 40 times faster than USB 1.1, and is ideal for connecting high-
speed USB interface peripherals such as USB HDD, digital cameras, MP3 players,
printers, modems and the like.
2
1
JUSB1, JUSB2
(USB 2.0)
Connected to JUSB1 or JUSB2
MSI Reminds You...
Note that the pins of VCC and GND must be connected correctly to
avoid possible damage.
2-16
PIN
SIGNAL
1
HD_LED_P
2
FP PWR/SLP
3
HD_LED_N
10
9
4
FP PWR/SLP
5
RST_SW_N
6
PWR_SW_P
7
RST_SW_P
8
PWR_SW_N
9
RSVD_DNU
10
9
JFP1 Pin Definition
DESCRIPTION
Hard disk LED pull-up
MSG LED pull-up
Hard disk active LED
MSG LED pull-up
Reset Switch low reference pull-down to GND
Power Switch high reference pull-up
Reset Switch high reference pull-up
Power Switch low reference pull-down to GND
Reserved. Do not use.
JUSB1 & JUSB2 Pin Definition
PIN
SIGNAL
1
VCC
3
USB0-
5
USB0+
7
GND
9
Key (no pin)
USB 2.0 Bracket
®
Front Panel I/O
PIN
SIGNAL
2
VCC
4
USB1-
6
USB1+
8
GND
10
USBOC
(Optional)
