Before Start
This quick reference together with the EZ guide is used for providing you with
the assistance when installing computer system. For detail information, please
read the user manual.
Static electricity may cause damage to the integrated
1.
circuits on the motherboard. Before handling any
motherboard outside of its protective packaging,
ensure that there is no static electric charge in your
body.
Never run the processor without the heatsink properly
2.
and firmly attached. PERMANENT DAMAGE WILL
RESULT!

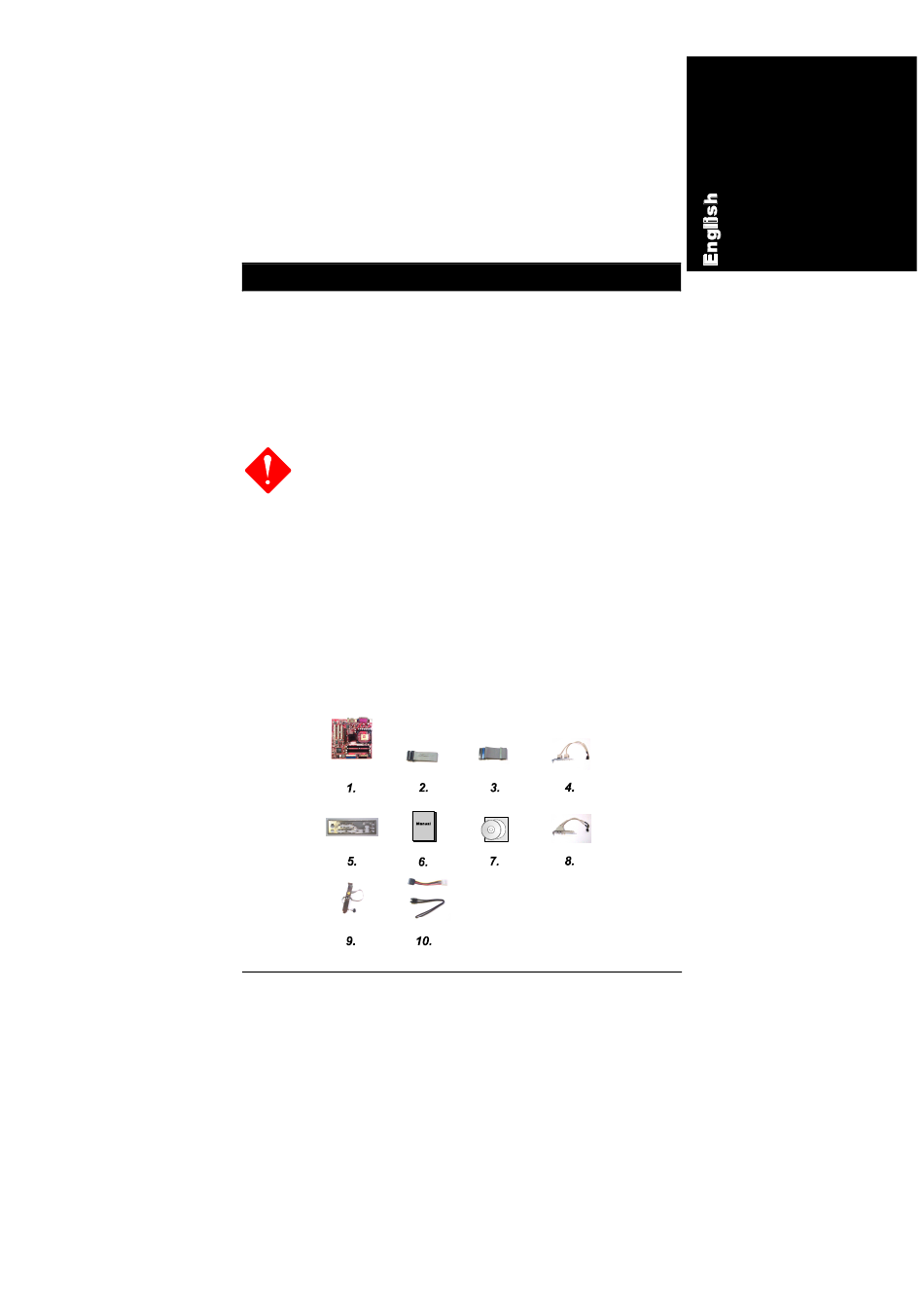

Package Checklist
If you discover any item below was damaged or lost, please contact your
vendor. 1. Mainboard 2. Floppy cable 3. IDE cable 4. USB cable (optional) 5.
I/O shielding 6. Manual 7. Driver CD 8. 1394 cable (optional) 9. TV-Out
cable (optional) 10. SATA cables (optional)
Quick Reference
1
Advertisement
Table of Contents

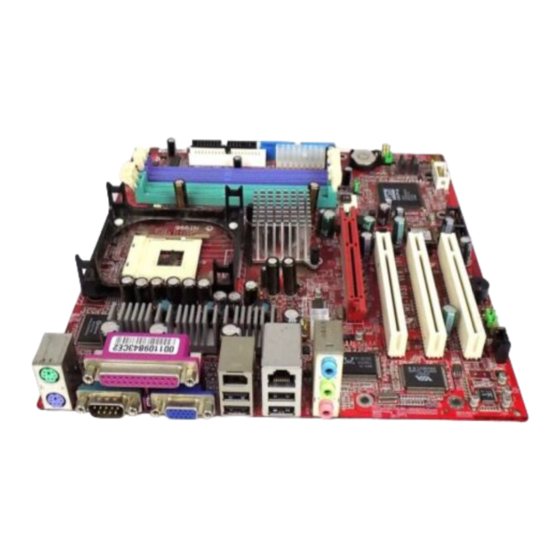

Related Manuals for MSI RS350
Summary of Contents for MSI RS350
- Page 1 Quick Reference Before Start This quick reference together with the EZ guide is used for providing you with the assistance when installing computer system. For detail information, please read the user manual. Static electricity may cause damage to the integrated circuits on the motherboard.
- Page 2 Mainboard Manual Hardware Installation 1. Swing the lever upward to 90 degree. 2. Install the CPU and make sure the the pin 1 orientation by aligning the socket corner marking with the socket corner closest to the lever tip. Do not insert the CPU by force.
- Page 3 Quick Reference Memory 1. Locate DDR DIMM sockets on the mainboard. 2. Install DDR DIMM straight down into the socket 1 using both hands, then socket 2, and so forth. 3. The clip on both ends of the socket will close up to hold the DDR DIMM in place when the DDR DIMM reaches the socket bottom.
- Page 4 Mainboard Manual 1. Locate floppy drive frame and storage on the chassis. 2. Place the drive from the front panel side into the frame. 3. Affix the drive on the frame by screws. 3. Connect the floppy ribbon cable and power wires. The colored line on the ribbon cable (pointed by blue arrowhead) must be the same side with the pin1 of the connector.
- Page 5 Quick Reference 4. Connect the IDE ribbon cable and power wires. The colored line on the cable (pointed by blue arrowhead) must be the same side with the pin1 of the connector. Connecting Hard Drive 1. Locate hard drive frame and storage on the chassis. 2.
- Page 6 Mainboard Manual Installing Cards 1. Select an available card slot. 2. Remove the slot cover from chassis. 3. Push the card firmly into the slot. Secure the card with the screw. Connecting ATX Power The 20-hole power plug is connected to ATX power connector.
- Page 7 Quick Reference Attach Peripheral Devices Link peripheral devices to your system via rear/front panel. BIOS Setup...
- Page 8 Mainboard Manual Standard CMOS Setup Use the arrow keys to highlight the item and then use PgUp or PgDn keys to select the value you want in each item. Load Fail-Safe Defaults This submenu is selected to diagnose the problem after the computer boots, if the computer will not boot.
