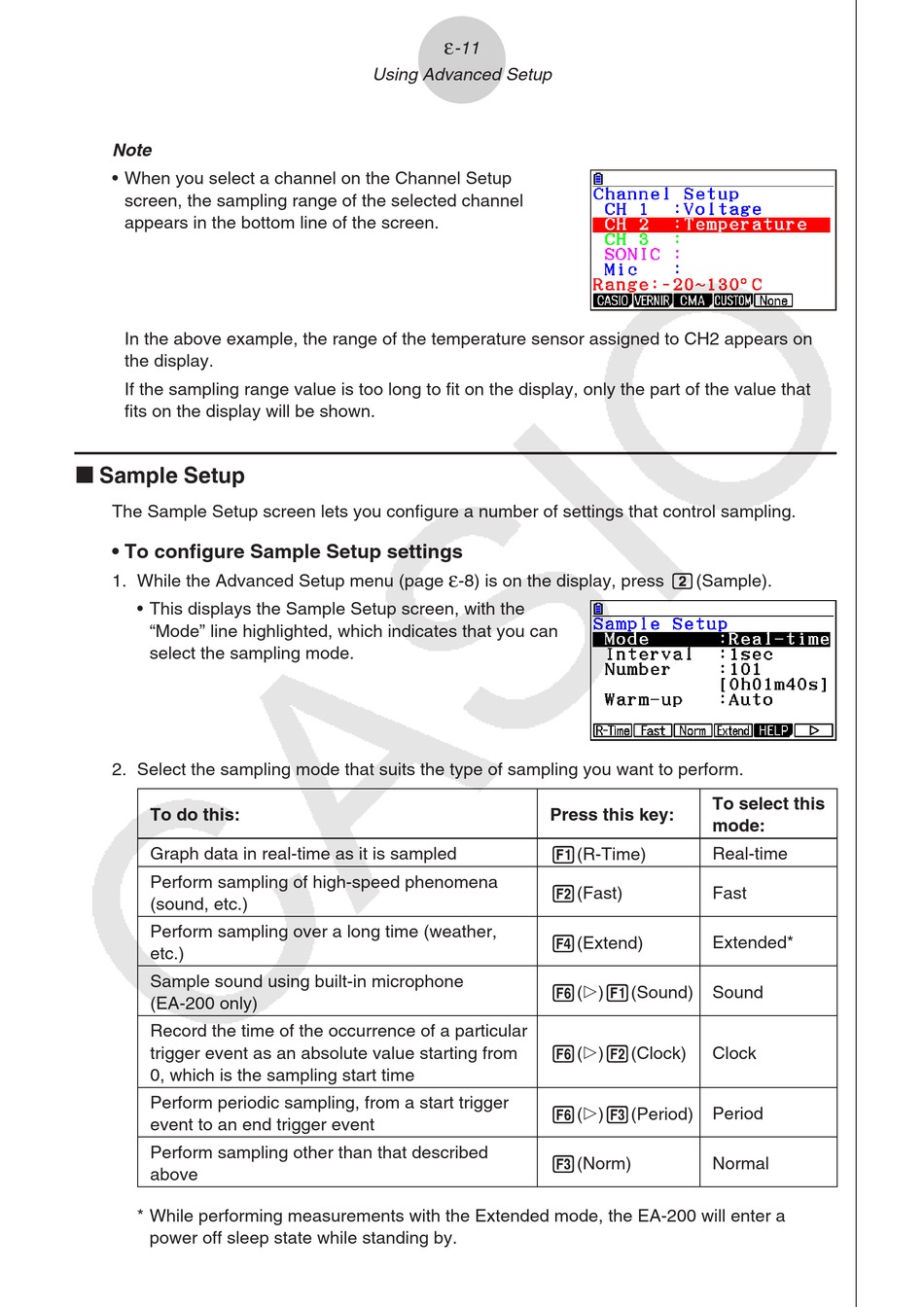

Sample Setup; To Configure Sample Setup Settings - Casio FX-CG20 AU User Manual

Note
• When you select a channel on the Channel Setup
screen, the sampling range of the selected channel
appears in the bottom line of the screen.
In the above example, the range of the temperature sensor assigned to CH2 appears on
the display.
If the sampling range value is too long to fit on the display, only the part of the value that
fits on the display will be shown.
k Sample Setup
The Sample Setup screen lets you configure a number of settings that control sampling.

• To configure Sample Setup settings

1. While the Advanced Setup menu (page
• This displays the Sample Setup screen, with the
"Mode" line highlighted, which indicates that you can
select the sampling mode.
2. Select the sampling mode that suits the type of sampling you want to perform.
To do this:
Graph data in real-time as it is sampled
Perform sampling of high-speed phenomena
(sound, etc.)
Perform sampling over a long time (weather,
etc.)
Sample sound using built-in microphone
(EA-200 only)
Record the time of the occurrence of a particular
trigger event as an absolute value starting from
0, which is the sampling start time
Perform periodic sampling, from a start trigger
event to an end trigger event
Perform sampling other than that described
above
* While performing measurements with the Extended mode, the EA-200 will enter a
power off sleep state while standing by.
ε
-11
Using Advanced Setup
ε
-8) is on the display, press c(Sample).
To select this
Press this key:
mode:
1(R-Time)
Real-time
2(Fast)
Fast
4(Extend)
Extended*
6(g)1(Sound)
Sound
6(g)2(Clock)
Clock
6(g)3(Period)
Period
3(Norm)
Normal
