Intel® Solid-State Drive 530 Series (2.5-inch)
®
Intel
Solid-State Drive 530 Series
(2.5-inch)
Capacities: 80 GB, 120 GB, 180 GB, 240 GB,
360 GB, 480 GB
Components:
®
Intel
20 nm NAND Flash Memory
−
Multi-Level Cell (MLC)
−
Form Factors: 2.5-inch
Thickness: 7 mm
Weight: Up to 78 grams
SATA 6Gb/s Bandwidth Performance
(Iometer* Queue Depth 32)
Sustained Sequential Read: up to 540 MB/s
−
Sustained Sequential Write: up to 490
−
MB/s
Read and Write IOPS
(Iometer Queue Depth 32)
Random 4 KB Reads: up to 41,000 IOPS
−
Random 4 KB Writes: up to 80,000 IOPS
−
Latency (average sequential)
−
Read: 80 µs (TYP)
Write: 85 µs (TYP)
−
Data Compression
AES 256-bit Encryption
End-to-End Data Protection
Compatibility
®
Intel
SSD Toolbox with Intel
−
Optimizer
®
−
Intel
Data Migration Software
®
Intel
Rapid Storage Technology
−
SATA Revision 3.0
−
−
ACS-2 (ATA/ATAPI Command Set 2)
−
SSD Enhanced SMART ATA feature set
NOTES:
1.
Performance values vary by capacity.
2.
Random 4 KB writes measured using out-of-box SSD.
3.
Non-DevSleep idle power with SATA Link Power Management (LPM) enabled.
4.
As measured by temperature sensor, SMART Attribute BEh. Active airflow is recommended within the
system for maintaining proper device operating temperatures on heavier workloads.
October 2013
Order Number: 329212-003US
1
1
2
®
SSD
Product Specification
Power Management
5.0 V SATA Supply Rail
−
SATA Link Power Management (LPM)
−
Device Sleep (DevSleep)
−
Power
Active (BAPCo MobileMark* 2007
−
Workload): 195 mW
3
Idle
: 125 mW
−
DevSleep: 5 mW
−
Temperature
4
o
−
Operating
: 0
C to 70
Non-Operating: -55
−
Reliability
— Uncorrectable Bit Error Rate (UBER):
16
<1 sector per 10
— Mean Time Between Failure (MTBF):
1,200,000 hours
— Shock (operating and non-operating):
1,500 G/0.5 msec
Vibration
— Operating: 2.17 G
— Non-operating: 3.13 G
Certifications and Declarations:
−
UL*
−
CE*
C-Tick*
−
BSMI*
−
KCC*
−
Microsoft* WHCK
−
VCCI*
−
SATA-IO*
−
Product Ecological Compliance
−
RoHS*
o
C
o
C to 95
o
C
bits read
(5-700 Hz)
RMS
(5-800 Hz)
RMS
Product Specification
1
Advertisement
Table of Contents
Related Manuals for Intel SSDSC2BW120A4K5
Summary of Contents for Intel SSDSC2BW120A4K5
-
Page 1: Product Specification

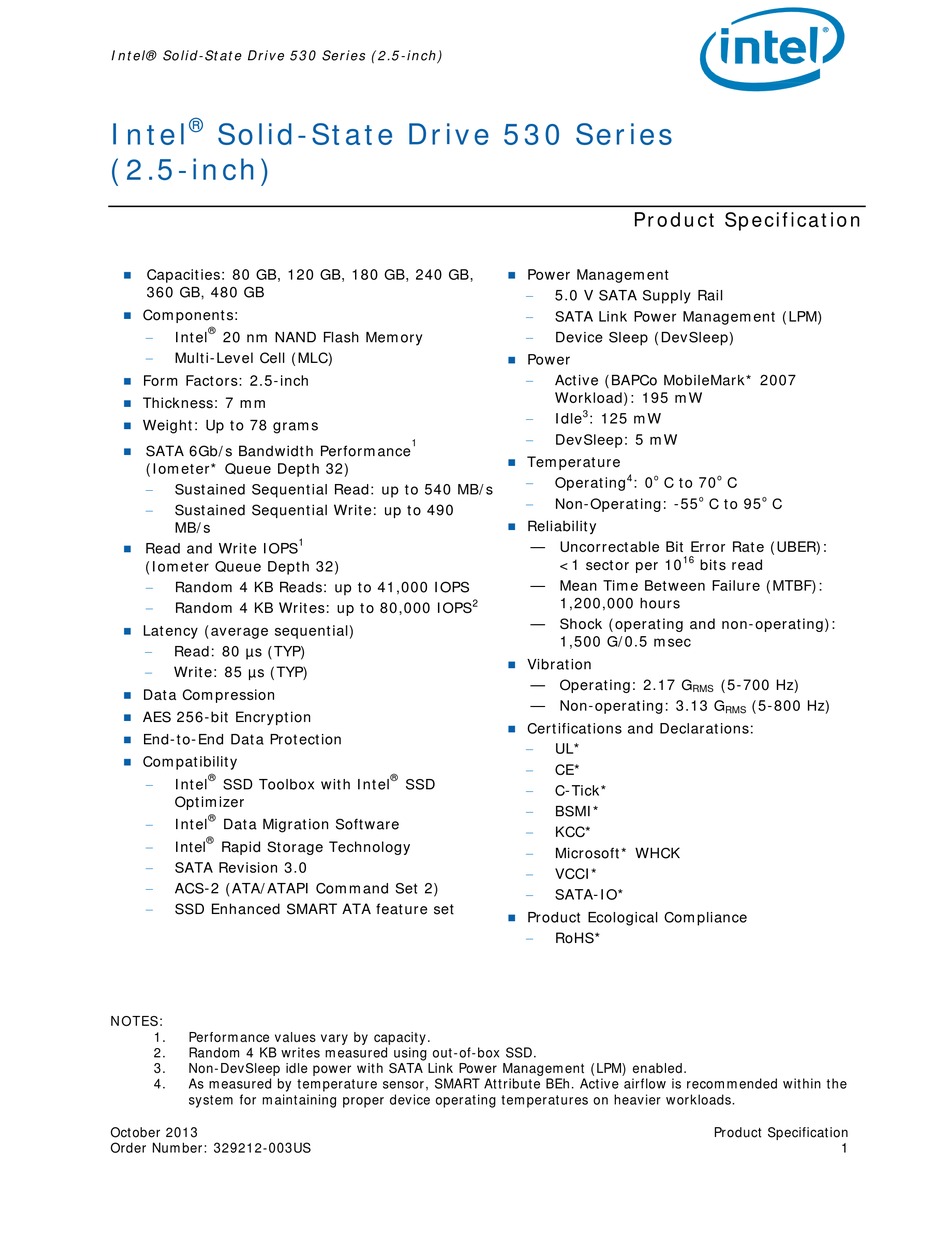

Intel® Solid-State Drive 530 Series (2.5-inch) ® Intel Solid-State Drive 530 Series (2.5-inch) Product Specification Capacities: 80 GB, 120 GB, 180 GB, 240 GB, Power Management 360 GB, 480 GB 5.0 V SATA Supply Rail − Components: SATA Link Power Management (LPM) −... -
Page 2: Ordering Information
COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. A "Mission Critical Application" is any application in which failure of the Intel Product could result, directly or indirectly, in personal injury or death. SHOULD YOU PURCHASE OR USE INTEL'S PRODUCTS FOR ANY SUCH MISSION CRITICAL APPLICATION, YOU... -
Page 3: Table Of Contents
Intel® Solid-State Drive 530 Series (2.5-inch) Contents Revision History ........................4 Introduction ....................... 5 Terminology ......................... 6 Reference Documents ....................7 Product Specifications ....................8 Capacity ........................8 Performance ......................... 8 Electrical Characteristics ....................9 Environmental Conditions ..................... 10 2.4.1 Temperature, Shock, Vibration ................ -
Page 4: Revision History
Intel® Solid-State Drive 530 Series (2.5-inch) Revision History Document Revision Description Revision Date Number Number 329212 001US July 2013 Initial release 329212 002US Added 120 GB capacity September 2013 329212 003US Added 80 GB, 360 GB, and 480 GB capacities... -
Page 5: Introduction
This document describes the specifications and capabilities of the Intel® Solid-State Drive 530 Series (Intel® SSD 530 Series). The Intel SSD 530 Series delivers the next generation storage solution with new low power features designed for Ultrabook™. The next generation Intel SSD continues to provide high performance expected for Serial Advanced Technology Attachment (SATA)-based computers. -
Page 6: Terminology
Intel® Solid-State Drive 530 Series (2.5-inch) Terminology Table 1: Terminology Term Description Advanced Technology Attachment Device Activity Signal DevSleep Device Sleep, a new addition to the SATA specification DIPM Device Initiated Power Management Direct Memory Access Extended FPDMA First Party Direct Memory Access... -
Page 7: Reference Documents
Intel® Solid-State Drive 530 Series (2.5-inch) Reference Documents Table 2: Standard References Date or Rev. # Title Location May 2005 SFF-8201, 2.5-inch drive form factor http://www.sffcommittee.org/ May 2006 SFF-8223, 2.5-inch Drive w/Serial Attachment http://www.sffcommittee.org/ Connector IEC 55022 Information Technology Equipment —... -
Page 8: Product Specifications
Intel® Solid-State Drive 530 Series (2.5-inch) Product Specifications Capacity Table 3: User Addressable Sectors Capacity Unformatted Capacity (Total User Addressable Sectors in LBA mode) 80 GB 156,301,488 120 GB 234,441,648 180 GB 351,651,888 240 GB 468,862,128 360 GB 703,282,608 480 GB... -
Page 9: Electrical Characteristics
Intel® Solid-State Drive 530 Series (2.5-inch) Table 6: Latency Specification Intel® SSD 530 Series 80 GB 120 GB 180 GB 240 GB 360 GB 480 GB Read 80 µs (TYP) Write 85 µs (TYP) Power On To Ready 1 s (TYP) -
Page 10: Environmental Conditions
As measured by temperature sensor, SMART Attribute BEh. Active airflow is recommended within the system for maintaining proper device operating temperature on heavier workloads. Please contact your Intel representative for details on the non-operating temperature range. Temperature gradient measured without condensation. -
Page 11: Product Regulatory Compliance
Intel® Solid-State Drive 530 Series (2.5-inch) Product Regulatory Compliance The Intel® SSD 530 Series meets or exceeds the regulatory or certification requirements in the table below. Table 9: Product Regulatory Compliance Specifications Title Description Region For Which Conformity Declared TITLE 47-Telecommunications CHAPTER FCC Part 15B Class B 1—... -
Page 12: Reliability
Intel® Solid-State Drive 530 Series (2.5-inch) Reliability The Intel® SSD 530 Series meets or exceeds SSD endurance and data retention requirements as specified in the JESD218 specification. Table 10: Reliability Specifications Parameter Value Uncorrectable Bit Error Rate (UBER) Uncorrectable bit error rate will not exceed one sector in the specified <... -
Page 13: Mechanical Information
Intel® Solid-State Drive 530 Series (2.5-inch) Mechanical Information The figure below shows the mechanical information for the full size 2.5 inch Intel® SSD 530 Series SSD. All dimensions are in millimeters. Figure 1: Dimensions for Full Size 2.5 inch Drives... -
Page 14: Pin And Signal Descriptions
Intel® Solid-State Drive 530 Series (2.5-inch) Pin and Signal Descriptions Pin Locations Figure 2: Layout of Signal and Power Segment Pins 2.5-inch connector supports in-built latching capability. Note: Signal Descriptions 4.2.1 Connector Pin Signal Definitions Table 11: Serial ATA Connector Pin Signal Definitions... -
Page 15: Power Pin Signal Definitions
The host may ground P11 if it is not used for Device Activity Signal (DAS). Device Sleep Feature Device Sleep (or DevSleep/DEVSLP) is the latest feature aligned with Intel® 4th Generation Core™- based Ultrabook™. Ultrabook™ has stringent power requirements for SSDs and as such requires an ability to put the drive in a low power state. -
Page 16: Supported Command Sets
Intel® Solid-State Drive 530 Series (2.5-inch) Supported Command Sets The Intel SSD 530 Series supports all mandatory Advanced Technology Attachment (ATA) and Serial ATA (SATA) commands defined in the ACS-2 and SATA Revision 3.0 specifications. The mandatory and optional commands are defined in this section. -
Page 17: Power Management
Intel® Solid-State Drive 530 Series (2.5-inch) Power Management The Intel SSD 530 Series supports several power management feature sets as defined by the ATA specification: general Power Management feature set, Advanced Power Management feature set, and Power-Up in Standby (PUIS) feature set. -
Page 18: Smart Command Set
SMART DISABLE OPERATIONS • SMART RETURN STATUS • 5.4.1 SMART Attributes Table 13 lists the SMART attributes supported by the Intel SSD 530 Series; Table 14 lists the corresponding status flags and threshold settings. Table 13: SMART Attributes Attribute Status Flags Threshold... - Page 19 Intel® Solid-State Drive 530 Series (2.5-inch) Attribute Status Flags Threshold Available Reserved Space Program Fail Count The raw value of this attribute shows total 0 (none) count of program fails and the normalized value, beginning at 100, shows the percent remaining of allowable program fails.
- Page 20 Intel® Solid-State Drive 530 Series (2.5-inch) Attribute Status Flags Threshold Host Writes The raw value of this attribute reports the total number of sectors written by the host system. 0 (none) The raw value is increased by 1 for every 65,536 sectors (32 MB) written by the host.
-
Page 21: Smart Logs
The Intel SSD 530 Series also implements a device vendor specific log at address A9h as a read-only log area with a default value of zero (0). -
Page 22: Smart Command Transport
• Log Address E1h ("SCT Data Transfer") — used to transport data • Data Set Management Command Set The Intel SSD 530 Series supports the Data Set Management command set Trim attribute, which consists of: • DATA SET MANAGEMENT Host Protected Area Command Set READ NATIVE MAX ADDRESS •... -
Page 23: Native Command Queuing
• WRITE FPDMA QUEUED 5.12 Software Settings Preservation The Intel SSD 530 Series supports the SET FEATURES parameter to enable/disable the preservation of software settings. 5.13 SATA Link Power Management (LPM) The Intel SSD 530 Series supports the SET FEATURES parameter to enable Device Initiated Power Management (DIPM). -
Page 24: Certifications And Declarations
Intel® Solid-State Drive 530 Series (2.5-inch) Certifications and Declarations The table below describes the Device Certifications supported by the Intel SSD 530 Series. Table 16: Device Certifications and Declarations Certification Description European Economic Area (EEA): Compliance with the essential requirements of EC... -
Page 25: Appendix
Intel® Solid-State Drive 530 Series (2.5-inch) Appendix The table below describes the sector data returned from an identify device command Table 17: Identify Device Returned Sector Data Word F = Fixed Default Value Description V = Variable X = Both... - Page 26 Intel® Solid-State Drive 530 Series (2.5-inch) Word F = Fixed Default Value Description V = Variable X = Both Reserved 71-74 Reserved for IDENTIFY PACKET DEVICE command 001Fh Queue depth 270Eh Serial ATA capabilities 0086h Reserved for future Serial ATA definition...
- Page 27 Intel® Solid-State Drive 530 Series (2.5-inch) Word F = Fixed Default Value Description V = Variable X = Both 401Ch Command set/feature enabled/supported 121-126 Reserved Removable Media Status Notification feature set support 0021h Security status 129-159 varies Vendor-specific CompactFlash Association (CFA) power mode 1...
