PA-4000 Series
Hardware Reference Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA-4000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for PaloAlto Networks PA-4000 Series

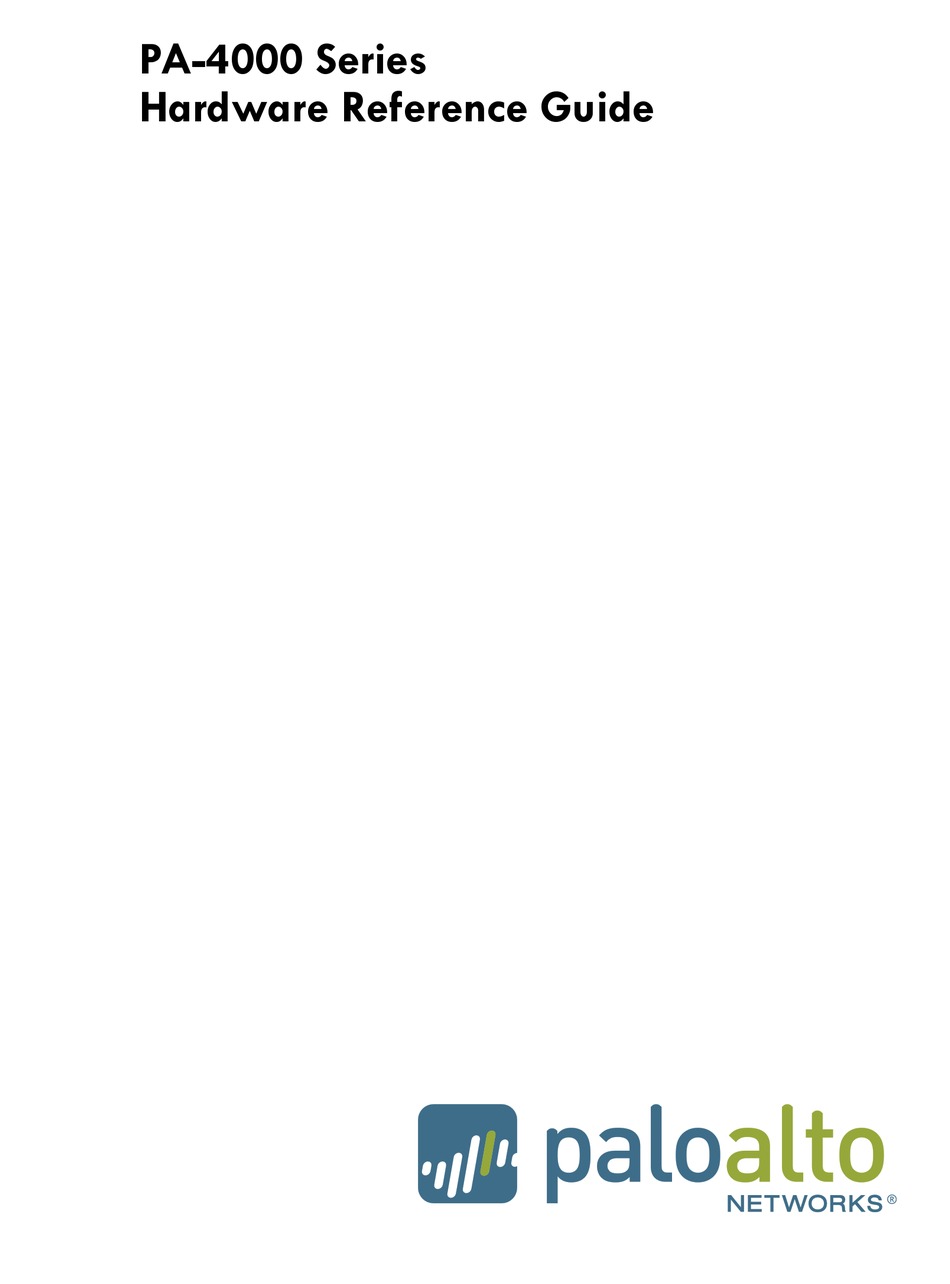

  • Page 1 PA-4000 Series Hardware Reference Guide...
  • Page 2: About This Guide

    About this Guide This guide describes the PA-4000 Series firewall hardware, provides instructions on installing the hardware, describes how to perform maintenance procedures, and provides product specifications. This guide is intended for system administrators responsible for installing and maintaining the PA-4000 Series firewall.
  • Page 3: Table Of Contents

    July 17, 2015 - Palo Alto Networks COMPANY CONFIDENTIAL Table of Contents Chapter 1  Overview ..........Front Panel .
  • Page 4 4 • Table of Contents Palo Alto Networks...
  • Page 5: Chapter 1  Overview

    July 17, 2015 - Palo Alto Networks COMPANY CONFIDENTIAL  Chapter 1 Overview This chapter describes the features of the front and back panel of the PA-4000 Series firewall. For more information, refer to the following topics: • “Front Panel” in the next section •...
  • Page 6: Front Panel

    Front Panel Front Panel Figure 1 shows the front panel of the PA-4050 and PA-4020 and Table 1 describes the front panel features. Ethernet ports ports port 2 LEDs POWER ALARM STATUS FANS PWR 1 TEMP PWR 2 USB 1/2 CONSOLE Management Management...
  • Page 7 Front Panel Figure 2 shows the front panel of the PA-4060 Series and Table 2 describes the front panel features. ports ports port 2 LEDs POWER ALARM STATUS FANS PWR 1 TEMP PWR 2 USB 1/2 CONSOLE Management Management ports console port port port 1...
  • Page 8: Back Panel

    Back Panel Back Panel Figure 3 shows the back panel of the PA-4000 Series and Table 3 describes the back panel features. Power Fans supplies Figure 3. Back Panel Table 3. Back Panel Features Item Description Fans 3 fans for cooling the device.
  • Page 9: Installing The Hardware

    The warranty seals on the device itself do not show evidence of tampering. Before You Begin • It is recommended that two people be available to mount the PA-4000 Series in a 19-inch rack. • Have a Phillips head screwdriver available.
  • Page 10: Equipment Rack Installation

    Verify that power is not connected to the device. Equipment Rack Installation Figure 4 illustrates how rack mounting brackets are attached to the PA-4000 Series. You can attach the brackets using the holes at the front or the midpoint of the unit.
  • Page 11: Connecting Cables To The Device

    Align the mounting holes on the side of the device with holes in the rack rail. Make sure that rack rail holes are selected so that the PA-4000 Series is level. Insert mounting screws into the aligned holes. Tighten with a Phillips screwdriver.
  • Page 12: Connecting Power

    Figure 7. Power Connection for the PA-4000 Series To power up the PA-4000 Series, attach a power cable to each of the power supplies, and plug each into a grounded wall outlet. The device has no power switch, and is automatically powered when one or more power cables are connected to the device and to an AC power source.
  • Page 13: Maintaining The Hardware

    PWR LED both turn red, and a continuous audible alert is generated. To replace the PWR1 or PWR2 power supply: While the PA-4000 Series is running, unplug the power cord from the power supply that you need to replace, and unscrew the screw knob.
  • Page 14: Interpreting The Device Leds

    Interpreting the Device LEDs Note: The audible alert continues to be generated until two power supplies are installed and operational. Figure 8. Power Supply Replacement Interpreting the Device LEDs Figure 9 shows the LED dashboard on the front panel, and Table 4 describes the LED functions and states.
  • Page 15: Interpreting The Port Leds

    Interpreting the Port LEDs Table 4. Functions and States of the LED Dashboard Interface State Description POWER Green The device is powered. Power is off. STATUS Green The device is operating normally. Yellow The device is booting up. Green This device is the current active device. Yellow This device is the current passive device.
  • Page 16 Interpreting the Port LEDs Table 7 describes the LEDs for the PA-4000 Series Management port. Refer to Figure 1 and Figure 2. Table 7. PA-4000 Series Management Port LEDs Description Shows green when a 100 Mbps link is connected or amber when a 1 Gbps Left link is connected.
  • Page 17: Chapter 4  Specifications

    July 17, 2015 - Palo Alto Networks COMPANY CONFIDENTIAL  Chapter 4 Specifications This chapter provides specifications for the PA-4000 Series firewall. For more information, refer to the following topics: • “Physical Specifications” in the next section • “Interface Specifications” on page 18 •...
  • Page 18: Interface Specifications

    Interface Specifications Interface Specifications Table 9 lists the interfaces for the PA-4000 Series. Table 9. Interface Specifications Specification Description Ethernet ports PA-4050/PA-4020: 16 RJ-45 10/100/1000 ports for network traffic. SFP ports PA-4050/PA-4020: Eight Small Form-Factor Pluggable (SFP) ports for network traffic.
  • Page 19: Environmental Specifications

    Environmental Specifications Environmental Specifications Table 11 lists environmental specifications for the PA-4000 Series. Table 11. Environmental Specifications Specification Description Operating temperature range 0° to 50° C Storage temperature range -20° to 70° C System air flow Front to back Palo Alto Networks...
  • Page 20 Environmental Specifications 20 • Specifications Palo Alto Networks...
  • Page 21: Compliance Statement

    July 17, 2015 - Palo Alto Networks COMPANY CONFIDENTIAL  Chapter 5 Compliance Statement This chapter provides the compliance statement for the Voluntary Control Council for Interference by Information Technology Equipment (VCCI), which governs radio frequency emissions in Japan. The following information is in accordance to VCCI Class A requirements Translation: This is a Class A product.
  • Page 22 22 • Compliance Statement Palo Alto Networks...
