Sony XM-SD46X Service Manual page 23

Ref. No. Part No. Description
R808 1-216-833-11 METAL CHIP
R809 1-216-833-11 METAL CHIP
R810 1-216-857-11 METAL CHIP
R811 1-249-421-11 CARBON
R813 1-216-815-11 METAL CHIP
R824 1-216-845-11 METAL CHIP
R825 1-216-833-11 METAL CHIP
R826 1-216-833-11 METAL CHIP
R827 1-216-833-11 METAL CHIP
R828 1-216-833-11 METAL CHIP
R829 1-216-833-11 METAL CHIP
R830 1-216-833-11 METAL CHIP
R838 1-216-825-11 METAL CHIP
R839 1-216-857-11 METAL CHIP
R841 1-216-827-11 METAL CHIP
R843 1-216-827-11 METAL CHIP
R845 1-216-827-11 METAL CHIP
R847 1-216-827-11 METAL CHIP
R850 1-216-833-11 METAL CHIP
R854 1-216-841-11 METAL CHIP
R855 1-216-841-11 METAL CHIP
R856 1-216-841-11 METAL CHIP
R870 1-216-295-11 SHORT CHIP
R901 1-216-825-11 METAL CHIP
R902 1-216-827-11 METAL CHIP
R903 1-216-836-11 METAL CHIP
R904 1-216-836-11 METAL CHIP
R905 1-216-849-11 METAL CHIP
R906 1-216-210-00 RES-CHIP
R907 1-249-417-11 CARBON
R909 1-216-827-11 METAL CHIP
R910 1-216-833-11 METAL CHIP
R911 1-216-833-11 METAL CHIP
R912 1-249-411-11 CARBON
R913 1-216-819-11 METAL CHIP
R914 1-216-819-11 METAL CHIP
R915 1-216-833-11 METAL CHIP
R916 1-216-150-11 RES-CHIP
R917 1-216-819-11 METAL CHIP
R918 1-216-819-11 METAL CHIP
R920 1-216-150-11 RES-CHIP
R921 1-216-150-11 RES-CHIP
R922 1-216-150-11 RES-CHIP
R923 1-216-065-11 RES-CHIP
R924 1-216-065-11 RES-CHIP
R925 1-216-206-00 RES-CHIP
R927 1-216-206-00 RES-CHIP
R929 1-216-013-00 RES-CHIP
R930 1-216-013-00 RES-CHIP
R931 1-216-821-11 METAL CHIP
R932 1-216-821-11 METAL CHIP
R933 1-216-821-11 METAL CHIP
R934 1-216-821-11 METAL CHIP
< CERMET RESISTOR >
RV104 1-241-762-11 RES, ADJ, CERMET 2.2K
RV204 1-241-762-11 RES, ADJ, CERMET 2.2K
RV304 1-241-762-11 RES, ADJ, CERMET 2.2K
Remark Ref. No.
10K 5% 1/10W
10K 5% 1/10W
1M 5% 1/10W
2.2K 5% 1/4W
330 5% 1/10W
100K 5% 1/10W
10K 5% 1/10W
10K 5% 1/10W
10K 5% 1/10W
10K 5% 1/10W
10K 5% 1/10W
10K 5% 1/10W
2.2K 5% 1/10W
1M 5% 1/10W
3.3K 5% 1/10W
3.3K 5% 1/10W
3.3K 5% 1/10W
3.3K 5% 1/10W
10K 5% 1/10W
47K 5% 1/10W
47K 5% 1/10W
47K 5% 1/10W
0
2.2K 5% 1/10W
3.3K 5% 1/10W
18K 5% 1/10W
*************************************************************
18K 5% 1/10W
220K 5% 1/10W
3.3K 5% 1/8W
1K 5% 1/4W
3.3K 5% 1/10W
10K 5% 1/10W
10K 5% 1/10W
330 5% 1/4W
680 5% 1/10W
680 5% 1/10W
10K 5% 1/10W
10 5% 1/8W
680 5% 1/10W
680 5% 1/10W
10 5% 1/8W
10 5% 1/8W
*************************************************************
10 5% 1/8W
4.7K 5% 1/10W
4.7K 5% 1/10W
2.2K 5% 1/8W
2.2K 5% 1/8W
33 5% 1/10W
33 5% 1/10W
1K 5% 1/10W
1K 5% 1/10W
1K 5% 1/10W
1K 5% 1/10W
Part No. Description
RV404 1-241-762-11 RES, ADJ, CERMET 2.2K
< VARIABLE RESISTOR >
RV801 1-225-647-11 RES, VAR, CARBON 20KX4 (FILTER (FRONT))
RV802 1-225-648-12 RES, VAR, CARBON 5KX2 (LOW BOOST (40Hz)
RV803 1-225-648-12 RES, VAR, CARBON 5KX2 (LEVEL (FRONT))
RV804 1-225-647-11 RES, VAR, CARBON 20KX4 (FILTER (REAR))
RV805 1-225-648-12 RES, VAR, CARBON 5KX2 (LOW BOOST (40Hz)
RV806 1-225-648-12 RES, VAR, CARBON 5KX2 (LEVEL (REAR))
< SWITCH >
S801 1-692-990-21 SWITCH, SLIDE (FILTER (FRONT))
S802 1-692-938-11 SWITCH, SLIDE (FILTER (REAR))
< TRANSFORMER >
T801 1-439-636-11 TRANSFORMER, DC-DC CONVERTER
< THERMISTOR (NEGATIVE) >
THN801 1-804-301-11 THERMISTOR, CHIP (NEGATIVE)
THN804 1-804-301-11 THERMISTOR, CHIP (NEGATIVE)
THN805 1-804-301-11 THERMISTOR, CHIP (NEGATIVE)
THN806 1-804-301-11 THERMISTOR, CHIP (NEGATIVE)
THN807 1-804-301-11 THERMISTOR, CHIP (NEGATIVE)
ACCESSORIES
************
2-514-766-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH)
2-514-766-21 MANUAL, INSTRUCTION (GERMAN,ITALIAN)
2-514-766-31 MANUAL, INSTRUCTION (SPANISH,
2-514-766-41 MANUAL, INSTRUCTION
2-514-766-51 MANUAL, INSTRUCTION (SWEDISH,POLISH)
2-514-766-61 MANUAL, INSTRUCTION (GREEK,RUSSIAN)

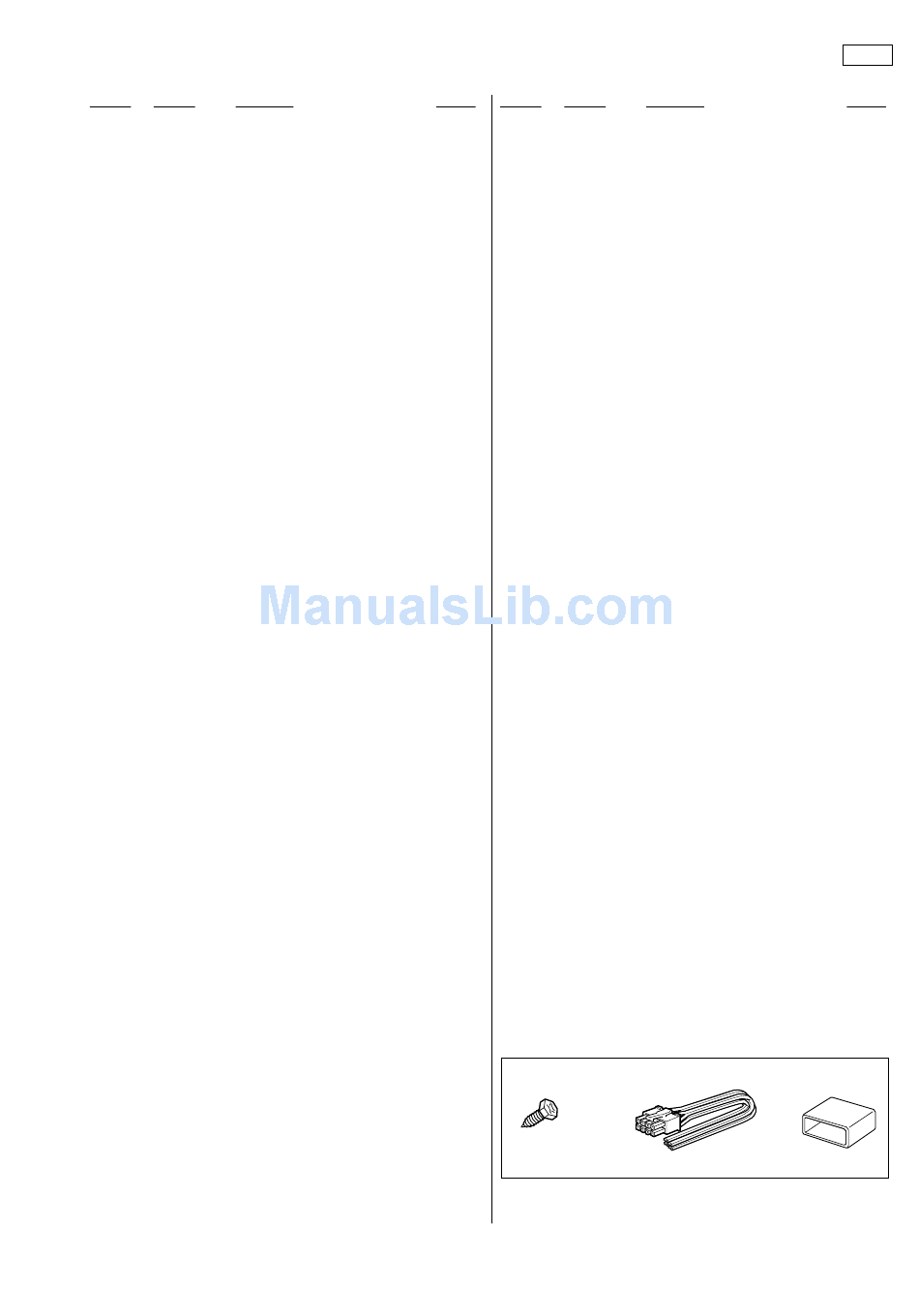

PARTS FOR INSTALLATION AND CONNECTIONS
***************************************
101 3-367-410-11 SCREW (DIA. 5X15), TAPPING
102 1-823-952-11 CORD (WITH CONNECTOR) (0.2m)
103 3-249-791-01 COVER (POWER)
101 102
φ 5 x 15
(x 4)
XM-SD46X
MAIN
Remark
(FRONT))
(REAR))
(AEP,UK,E)
TRADITIONAL CHINESE)
(AEP,UK,E)
(DUTCH,PORTUGUESE)
(AEP,UK,E)
(AEP,UK,E)
(AEP,UK,E)
(MOUNTING SCREW)
103
0.2 m
23
