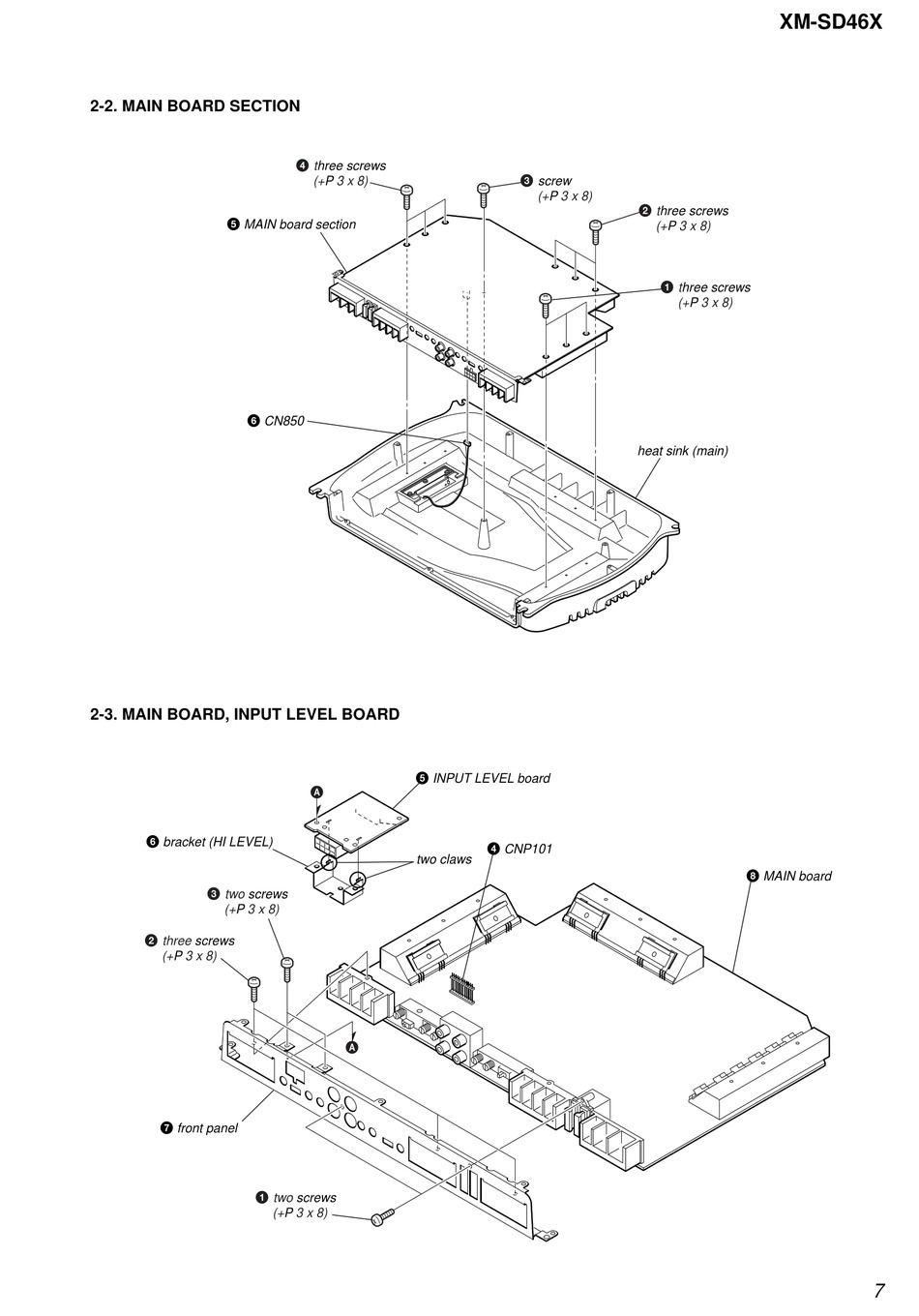

2-2. MAIN BOARD SECTION

5 MAIN board section
6 CN850

2-3. MAIN BOARD, INPUT LEVEL BOARD

6 bracket (HI LEVEL)
3 two screws
(+ P 3 x 8)
2 three screws
(+ P 3 x 8)
7 front panel
1 two
4 three screws
(+ P 3 x 8)
5 INPUT LEVEL board
A
two claws
A
screws
(+ P 3 x 8)
3 screw
(+ P 3 x 8)
three screws
2
(+
heat sink (main)
4 CNP101
XM-SD46X
P 3 x 8)
1 three screws
(+ P 3 x 8)
8 MAIN board
7
