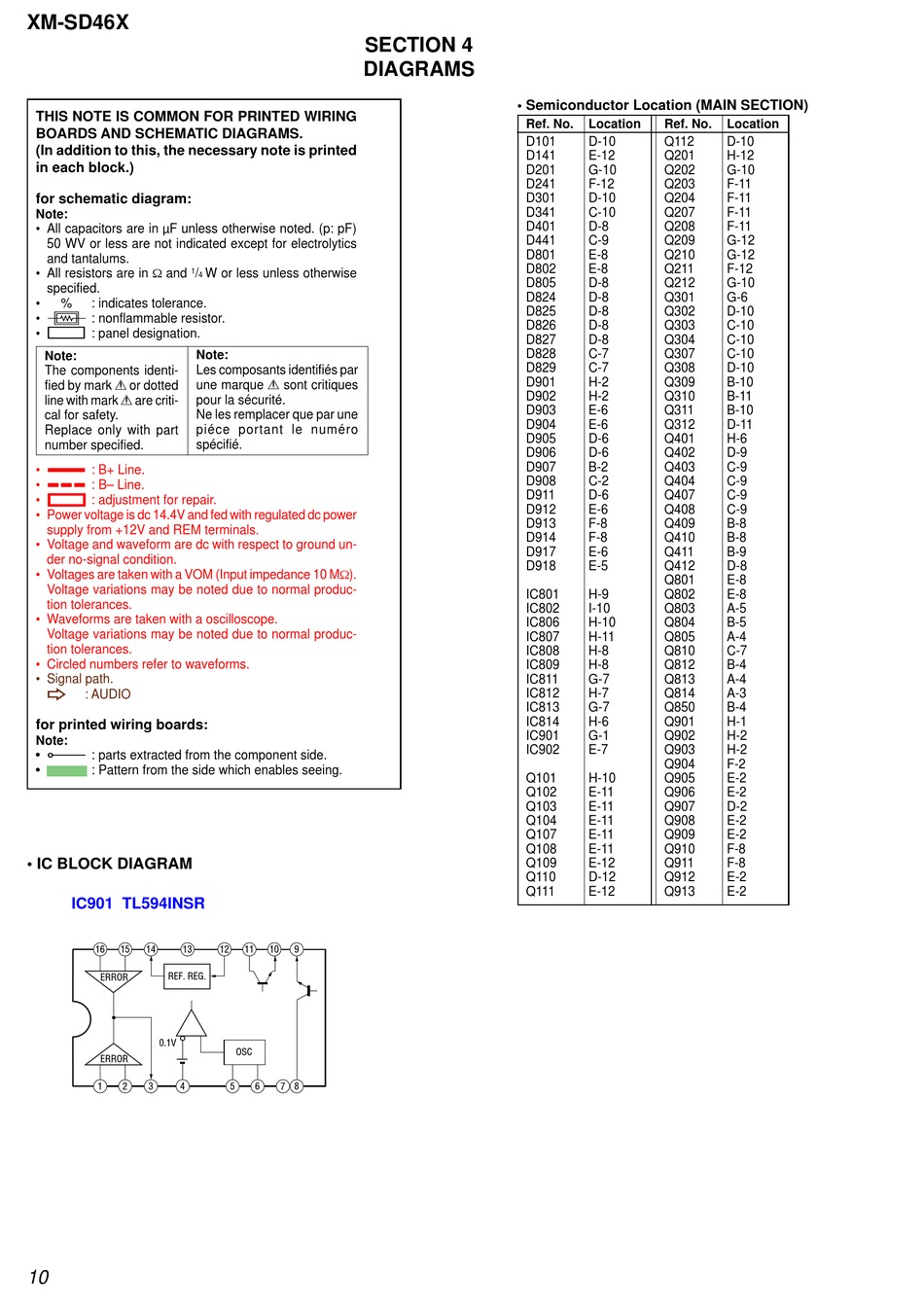

XM-SD46X
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed
in each block.)
for schematic diagram:
Note:
• All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1 /
specified.
• % : indicates tolerance.
• 2 : nonflammable resistor.
• C : panel designation.
Note: Note:
Les composants identifiés par
The components identi-
une marque 0 sont critiques
fied by mark 0 or dotted
line with mark 0 are criti- pour la sécurité.
cal for safety. Ne les remplacer que par une
Replace only with part piéce portant le numéro
spécifié.
number specified.
• A : B+ Line.
• B : B– Line.
• H : adjustment for repair.
• Power voltage is dc 14.4V and fed with regulated dc power
supply from +12V and REM terminals.
• Voltage and waveform are dc with respect to ground un-
der no-signal condition.
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F
: AUDIO
for printed wiring boards:
Note:
• X : parts extracted from the component side.
• : Pattern from the side which enables seeing.
• IC BLOCK DIAGRAM
IC901 TL594INSR
16 15 14 13
REF. REG.
ERROR
0.1V
ERROR
1 2 3 4
10
SECTION 4

DIAGRAMS

W or less unless otherwise
4
12 11 10 9
OSC
5 6 7 8
• Semiconductor Location (MAIN SECTION)
Ref. No. Location Ref. No.
D101 D-10 Q112
D141 E-12 Q201
D201 G-10 Q202
D241 F-12 Q203
D301 D-10 Q204
D341 C-10 Q207
D401 D-8 Q208
D441 C-9 Q209
D801 E-8 Q210
D802 E-8 Q211
D805 D-8 Q212
D824 D-8 Q301
D825 D-8 Q302
D826 D-8 Q303
D827 D-8 Q304
D828 C-7 Q307
D829 C-7 Q308
D901 H-2 Q309
D902 H-2 Q310
D903 E-6 Q311
D904 E-6 Q312
D905 D-6 Q401
D906 D-6 Q402
D907 B-2 Q403
D908 C-2 Q404
D911 D-6 Q407
D912 E-6 Q408
D913 F-8 Q409
D914 F-8 Q410
D917 E-6 Q411
D918 E-5 Q412
Q801
IC801 H-9 Q802
IC802 I-10 Q803
IC806 H-10 Q804
IC807 H-11 Q805
IC808 H-8 Q810
IC809 H-8 Q812
IC811 G-7 Q813
IC812 H-7 Q814
IC813 G-7 Q850
IC814 H-6 Q901
IC901 G-1 Q902
IC902 E-7 Q903
Q904
Q101 H-10 Q905
Q102 E-11 Q906
Q103 E-11 Q907
Q104 E-11 Q908
Q107 E-11 Q909
Q108 E-11 Q910
Q109 E-12 Q911
Q110 D-12 Q912
Q111 E-12 Q913
Location
D-10
H-12
G-10
F-11
F-11
F-11
F-11
G-12
G-12
F-12
G-10
G-6
D-10
C-10
C-10
C-10
D-10
B-10
B-11
B-10
D-11
H-6
D-9
C-9
C-9
C-9
C-9
B-8
B-8
B-9
D-8
E-8
E-8
A-5
B-5
A-4
C-7
B-4
A-4
A-3
B-4
H-1
H-2
H-2
F-2
E-2
E-2
D-2
E-2
E-2
F-8
F-8
E-2
E-2
