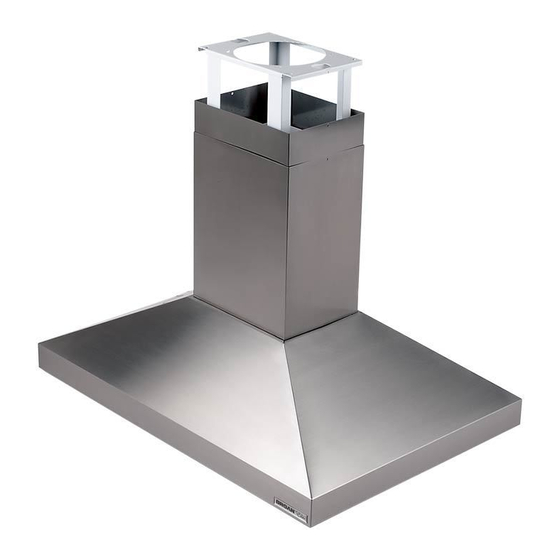

Summary of Contents for Rangemaster 63000 Series

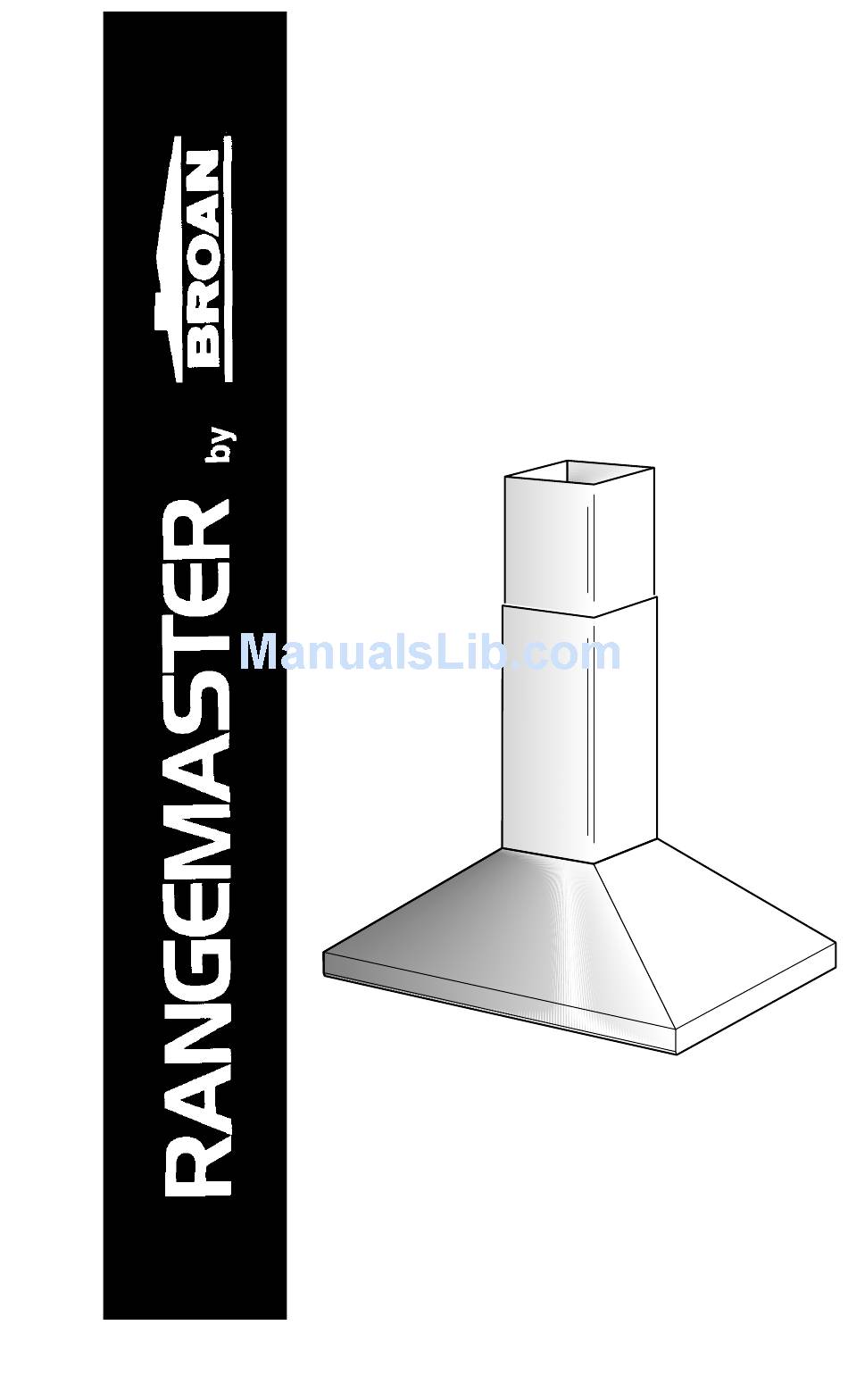

- Page 1 63000 Series 04306120 BROAN MFG. CO., INC. 99042529A 926 W. State St. Hartford, WI 53027 - 1 -...
- Page 2 READ AND SAVE THESE INSTRUCTIONS WARNING WARNING TO REDUCE THE RISK OF INJURY TO TO REDUCE THE RISK OF FIRE, ELEC- PERSONS IN THE EVENT OF A RANGE TRICAL SHOCK, OR INJURY TO PER- TOP GREASE FIRE, OBSERVE THE FOL- SONS, OBSERVE THE FOLLOWING: LOWING:* 1.
-
Page 3: Install The Ductwork
INSTALL THE DUCTWORK ROOF CAP 8" ROUND NOTE: To reduce the risk of fire, use only DUCT steel ductwork. 1. Decide where the ductwork will run between the hood and the outside. 2. A straight, short duct run will allow the hood 8"... -
Page 4: Connect Decorative Flue
CONNECT DECORATIVE FLUE 1. Secure the upper decorative flue section to the upper support frame. UPPER 2. Temporarily hang the lower decorative flue DECORATIVE section from the support frame. FLUE SECTION LOWER DECORATIVE FLUE SECTION INSTALL DUCT CONNECTOR DUCT CONNECTOR 1. -
Page 5: Connect Ductwork
WIRING WIRING BOX COVER Note: This range hood must be properly grounded. The unit should be installed by a qualified electrician in accordance with all applicable national and local electrical codes. 1. Remove the wiring box cover. Remove a knockout from the wiring box. 2. -
Page 6: Maintenance
MAINTENANCE Grease Filters The grease filters should be cleaned frequently. Use a warm detergent solution. Grease filters are dishwasher safe. Remove filters by pushing filters towards the back of hood and rotating filters downward. GREASE FILTERS Hood Cleaning Stainless steel is one of the easiest materials to keep clean. Occasional care will help preserve its fine appearance. -
Page 7: Halogen Bulbs
HALOGEN BULBS This range hood requires four (4) halogen bulbs (Type T4, 12V, 20W). To change bulbs: 1. Open the light lens by grasping the tab on the lens and rotating lens downward. LIGHT LENS 2. Remove the bulb by pulling sideward (Do not rotate). -
Page 8: Warranty
WARRANTY BROAN ONE YEAR LIMITED WARRANTY Broan warrants to the original consumer purchaser of its products that such products will be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WAR- RANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANT ABILITY OR FITNESS FOR A PAR- TICULAR PURPOSE. -
Page 9: Service Parts
SERVICE PARTS 63000 SERIES RANGE HOOD KEY NO. PART NO. DESCRIPTION B02000191 Filter Spring B08087485 Grease Filter B02300730 Motor Capacitor B03295005 Terminal Box B02300722 Halogen Lamp Bulb B03292291 Switch Cover B02310094 Motor B03295000 Blower Wheel B03202007 Rubber Washer BE3300527 Damper Flap... - Page 10 SERVICE PARTS 63000 SERIES RANGE HOOD - 10 -...
