Summary of Contents for Rangemaster RM51000 Series

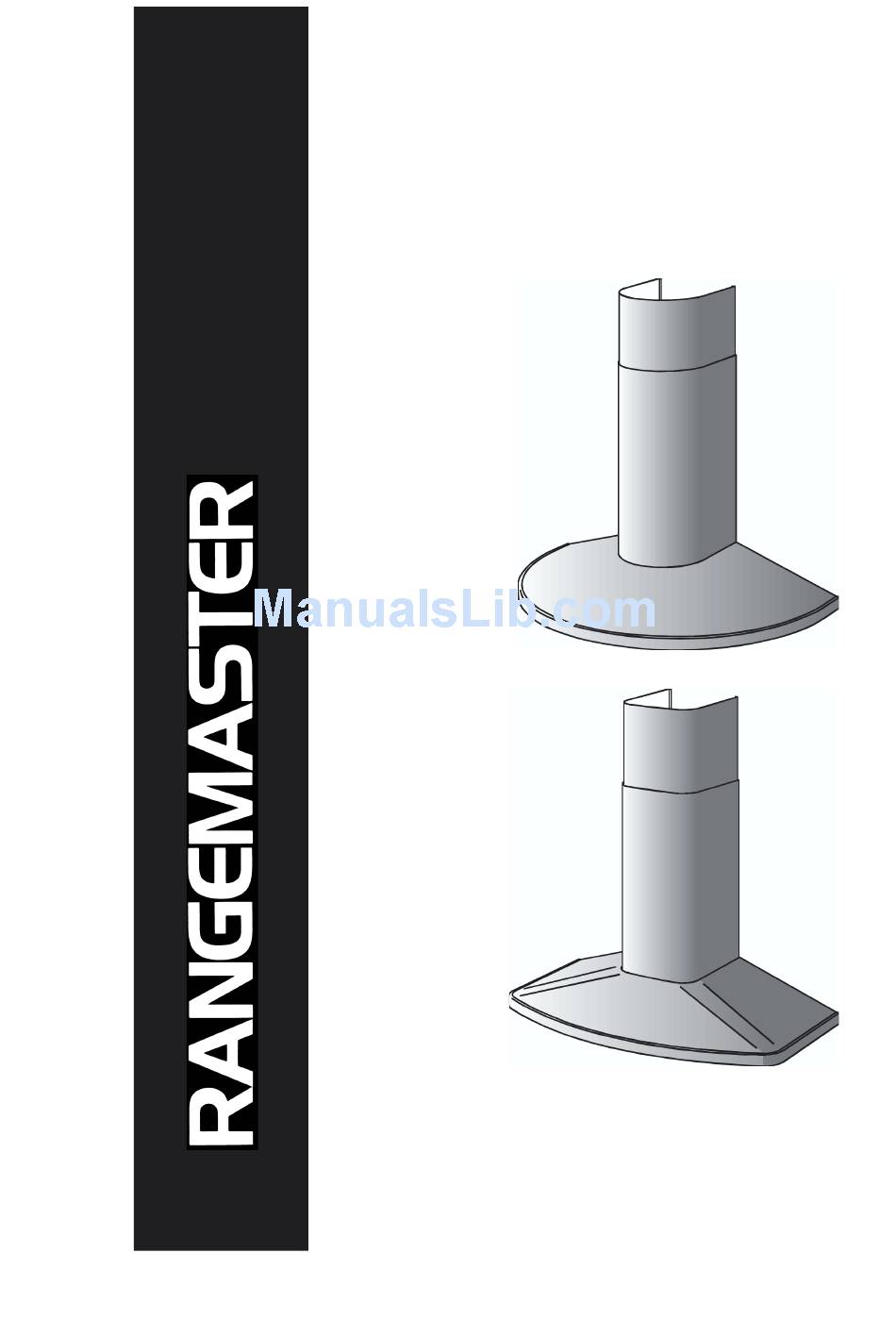

  • Page 1 RM51000 RM52000 Series ENGLISH........3 FRANÇAIS.........12 ESPAÑOL........21 Broan-NuTone LLC. 926 West State Street, Hartford, WI 53027 NuTone, Inc., 4820 Red Bank Road, Cincinnati, OH 45227 Broan-NuTone Canada, INC.1140 Tristar Drive, Mississauga, Ontario, L5T 1H9...
  • Page 3 READ AND SAVE THESE INSTRUCTIONS WARNING WARNING SUITABLE FOR USE IN HOUSEHOLD TO REDUCE THE RISK OF INJURY TO PER- COOKING AREA. SONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:* TO REDUCE THE RISK OF FIRE, ELECTRICAL 1.
  • Page 4: Prepare The Hood

    PREPARE THE HOOD Unpack hood and check contents. You should receive: 1 - Hood 1 - Decorative Flue Assembly 1 - Parts Bag containing: 1 - Mounting Bracket 1 - Discharge Collar 1 - Flue Mounting Bracket 8 - Mounting Screws (4,8 x 38mm Pan Head) 5 - Mounting Screws (3,9 x 9,5mm Pan Head) 8 - Drywall Anchors 1 - Installation Instructions...
  • Page 5: Install The Ductwork

    INSTALL THE DUCTWORK ROOF CAP NOTE: To reduce the risk of fire, use only ROUND metal ductwork. DUCT 1. Decide where the ductwork will run between the hood and the outside. 2. A straight, short duct run will allow the hood WALL DECORATIVE to perform most efficiently.
  • Page 6 MOUNT THE PLATE PLATE OF Mount the plate of the electrical system attaching it with 3 screws. ELECTRICAL SYSTEM WIRING Note: This range hood must be properly grounded. The unit should be installed by a qualified electrician in accordance with all applicable national and local electrical codes.
  • Page 7: Connect Ductwork

    CONNECT DUCTWORK FLUE MOUNTING BRACKET Ducted Configuration MOUNTING SCREWS 1. Adjust the width of the flue mounting bracket to equal the inside width of decorative flue. Insert and tighten mounting screws to hold bracket width. 2. Use mounting screws and wall anchors to secure flue mounting bracket to the ceiling as shown.
  • Page 8 Non-ducted recirculation Configuration FLUE MOUNTING 1. Adjust the width of the flue mounting BRACKET bracket to equal the inside width of decorative flue. Insert and tighten MOUNTING SCREWS mounting screws to hold bracket width. 2. Use mounting screws and wall anchors to secure flue mounting bracket to the ceiling as shown.
  • Page 9: Maintenance

    NON-DUCTED RECIRCULATION FILTER INSTALLATION 1. Purchase a charcoal filter (B03300488) from your dealer. 2. Install the filter by pressing the 2 tabs on the filter down into the special housing and rotating upward. CHARCOAL FILTER MAINTENANCE Proper maintenance of the Range Hood will assure proper performance of the unit.
  • Page 10: Operation

    OPERATION LIGHT BLOWER SWITCH Controls SWITCH The hood is operated using the slide controls PILOT under the bottom of the hood. LAMP The light switch turns the lamps on and off. The blower switch :makes it possible to select the motor operating speed. Position 0: motor off.
  • Page 11: Warranty

    WARRANTY BROAN-NUTONE LLC ONE YEAR LIMITED WARRANTY Broan-NuTone LLC warrants to the original consumer purchaser of its products that such products will be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WAR- RANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANT ABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
