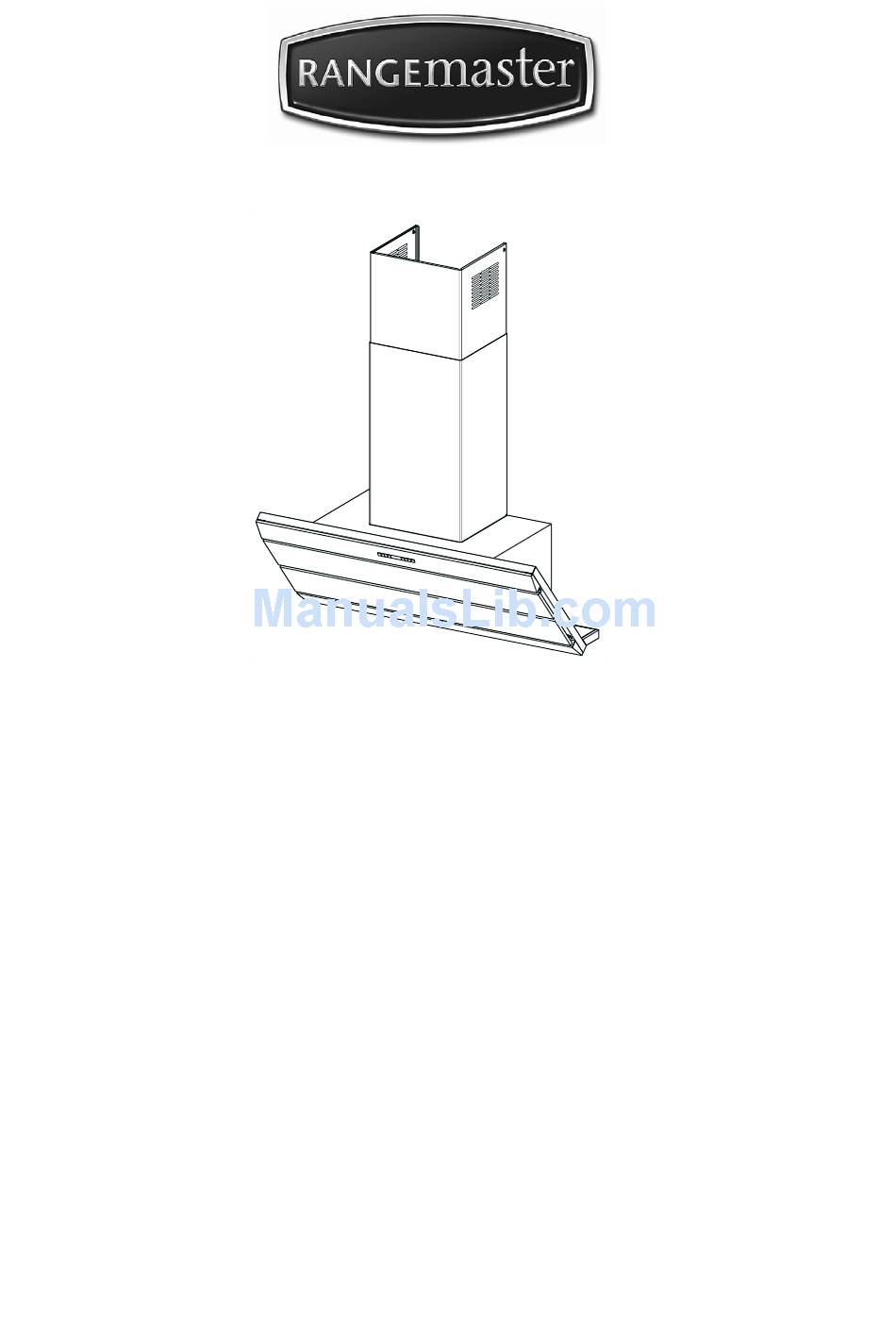

- Page 1 RMG1H60SG RMG1H90SG Instructions Manual www.rangemaster.co.uk...
-
Page 2: Table Of Contents
Instructions Manual INDEX RECOMMENDATIONS AND SUGGESTIONS ...3 CHARACTERISTICS...4 INSTALLATION ...6 USE...9 MAINTENANCE...10... -
Page 3: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accord- ingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from in- correct or improper installation. -
Page 4: Characteristics
CHARACTERISTICS Dimensions... - Page 5 Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Telescopic Chimney comprising: Upper Section Lower Section Reducer Flange ø 150-120 mm Adapting ring ø 120-125 mm 14.1 Air Outlet Connection Extension Air Outlet Connection Ref. Q.ty Installation Components 7.2.1 Upper Chimney Section Fixing Brackets Air Outlet Connection Support...
-
Page 6: Installation
INSTALLATION Wall marking: • Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed. • Draw a horizontal line at 1040 mm above the hob. •... -
Page 7: Ducted Version Air Exhaust System
Mounting the hood body • Before attaching the hood body, tighten the two screws Vr lo- cated on the hood body mounting points. • Hook the hood body onto the screws 12a. • Fully tighten support screws 12a. • Adjust screws Vr to level the hood body. Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the... -
Page 8: Electrical Connection
ELECTRICAL CONNECTION • Connect the hood to the mains through a two-pole switch hav- ing a contact gap of at least 3 mm. • Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan. -
Page 9: Use
Key Function Switches the extractor motor on and off at the latest selected speed Decreases the suction speed. Increases the suction speed. By pressing this key it is possible to start the inten- sive speed from any previously selected speed ex- cept the Delay-function and 24H-function. -
Page 10: Maintenance
MAINTENANCE REMOTE CONTROL (OPTIONAL) The appliance can be controlled using a remote control powered by a 1.5 V carbon-zinc alkaline batteries of the standard LR03- AAA type. • Do not place the remote control near to heat sources. • Used batteries must be disposed of in the proper manner. Cleaning the Comfort Panels •... - Page 11 Metal grease filters Metal filters can be washed also in a dish machine. They need to be washed every time a drop-symbol ap- pears in the display or at least every two months. In ca- se of very frequent use these have to be washed even more often.
-
Page 12: Light Replacement
This filter cannot be washed or regenerated. It must be replaced when the C appears on the display or at least once every 4 months. The filter saturation alarm has to be activated already before. Activation of the alarm signal •... - Page 16 AGA RANGEMASTER LTD. 436004190_ver1...
