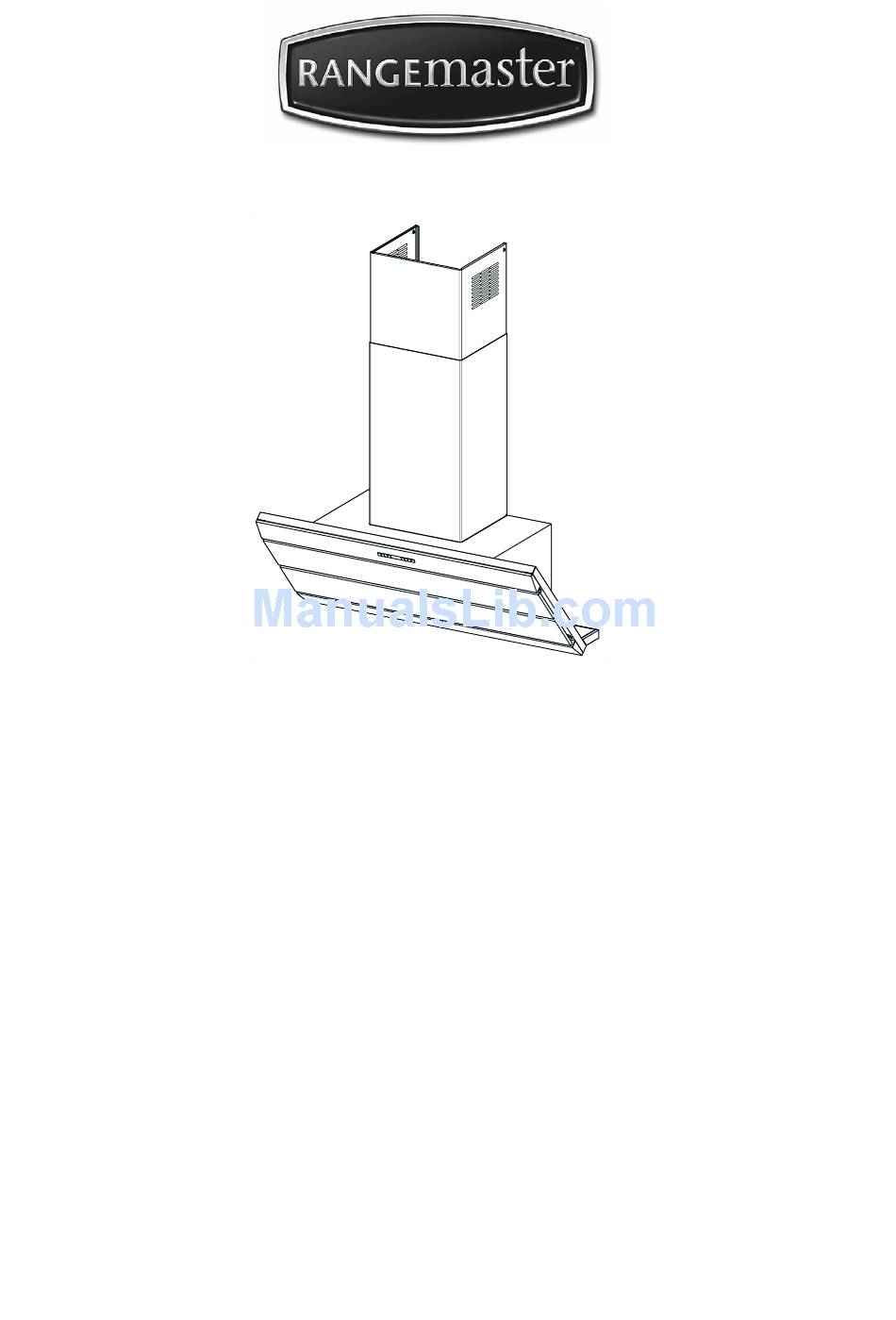

- Page 1 RMG2H60SS RMG2H90SS Instructions Manual www.rangemaster.co.uk...
-
Page 2: Table Of Contents
Instructions Manual INDEX RECOMMENDATIONS AND SUGGESTIONS ...3 CHARACTERISTICS...4 INSTALLATION ...6 USE...9 MAINTENANCE...10... -
Page 3: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accord- ingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from in- correct or improper installation. -
Page 4: Characteristics
CHARACTERISTICS Dimensions... - Page 5 Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Telescopic Chimney comprising: Upper Section Lower Section Reducer Flange ø 150-120 mm Adapting ring ø 120-125 mm 14.1 Air Outlet Connection Extension Air Outlet Connection Ref. Q.ty Installation Components 7.2.1 Upper Chimney Section Fixing Brackets Air Outlet Connection Support...
-
Page 6: Installation
INSTALLATION Wall marking: • Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed. • Draw a horizontal line at 1040 mm above the hob. •... -
Page 7: Ducted Version Air Exhaust System
Mounting the hood body • Before attaching the hood body, tighten the two screws Vr lo- cated on the hood body mounting points. • Hook the hood body onto the screws 12a. • Fully tighten support screws 12a. • Adjust screws Vr to level the hood body. Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the... -
Page 8: Electrical Connection
ELECTRICAL CONNECTION • Connect the hood to the mains through a two-pole switch hav- ing a contact gap of at least 3 mm. • Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan. -
Page 9: Use
The hood can be switched on pushing directly onto the requested speed without firstly having to select 0/1 button. Light Motor on Speed Speed Speed Fixed Flashing Fixed Flashing Control Panel FUNCTIONS Turns lighting on and off. First speed. When pressed for about 1 seconds the motor is switched off. Second speed. -
Page 10: Maintenance
MAINTENANCE REMOTE CONTROL (OPTIONAL) The appliance can be controlled using a remote control powered by a 1.5 V carbon-zinc alkaline batteries of the standard LR03- AAA type. • Do not place the remote control near to heat sources. • Used batteries must be disposed of in the proper manner. Cleaning the Comfort Panels •... - Page 11 Grease filters CLEANING METAL SELF- SUPPORTING GREASE FIL- TERS Alarm signal reset • Switch off the lights and extractor motor. • Press button T3 for at least 3 seconds, until the leds start to flash. Cleaning the filters • The filters are washable and must be cleaned at least every 2 months of operation, or more frequently for particularly heavy usage.
-
Page 12: Replacing The Activated Charcoal Filter
Activated charcoal filter (Recirculation version) The filter is not washable and cannot be regenerated. It must be replaced when led S1 flashes or at least every 4 months. The alarm signal will only light up when the extractor motor is swi- tched on. - Page 16 AGA RANGEMASTER LTD. 436004188_ver1...
