EVAL-AD7124-4SDZ User Guide
Tutorial Button
Clicking TUTORIAL (Label 4) opens a tutorial on using the
software, which provides additional information on using the
AD7124-4 EVAL+ Software.
Functional Block Diagram
The functional block diagram of the ADC (Label 5) shows each
of the functional blocks within the ADC. Clicking a configuration
button on this graph opens the configuration popup window for
that block.
Configuration Pop-Up Button
Each configuration pop-up button (Label 6) opens a different
window allowing configuration of the relevant functional block.
1
2
4
7
8
9
3
6

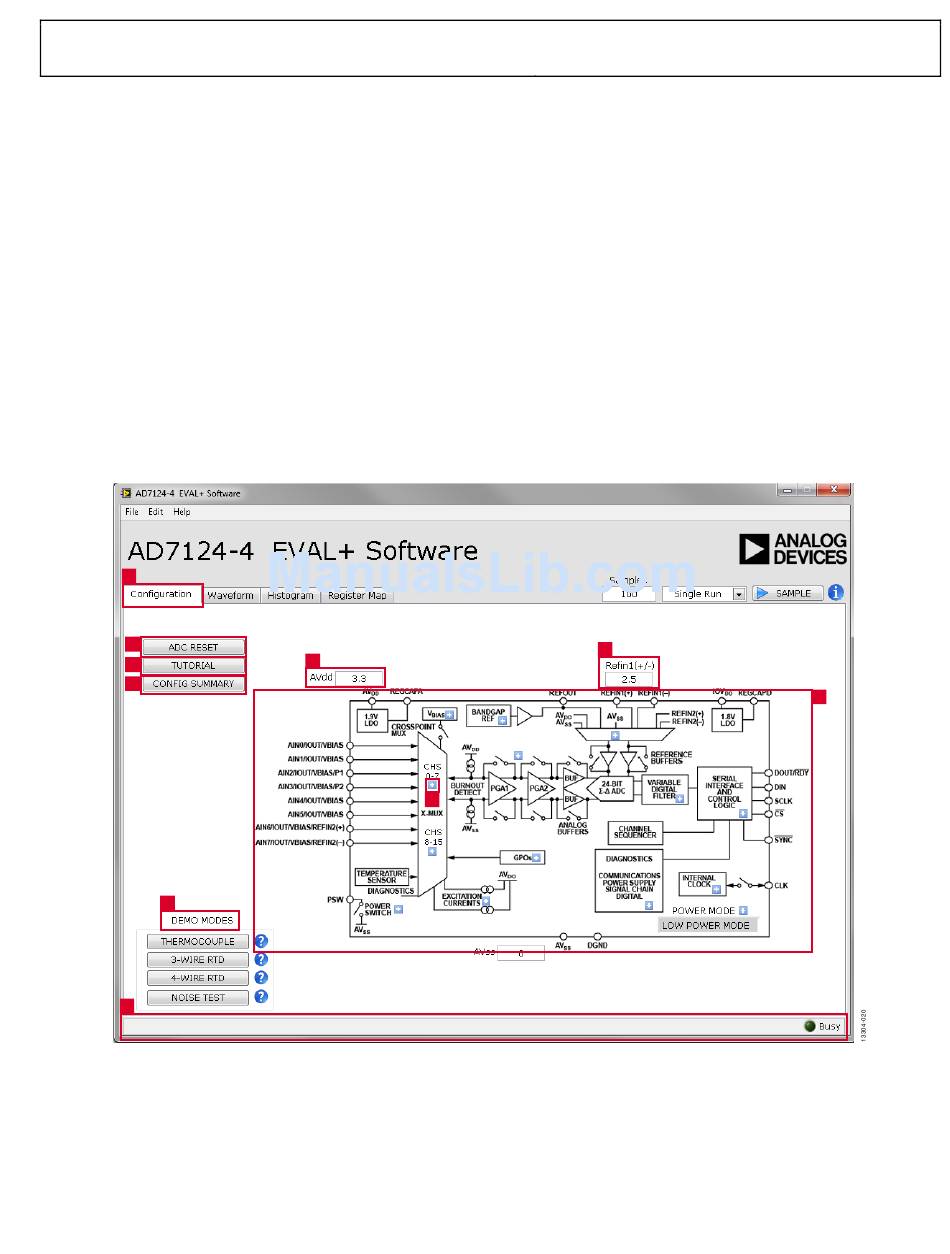

Figure 20. Configuration Tab of the
Rev. 0 | Page 13 of 29
CONFIG SUMMARY
Clicking CONFIG SUMMARY (Label 7) displays the channel
configuration, information on the individual setups, as well as
information on any error present. These tabs can be used to
quickly check how the ADC channels are configured, as well as
any errors that are present.
Demo Modes
The AD7124-4 EVAL+ Software
modes (Label 8); these demo modes configure the
each of the modes shown. A help file is available for each demo
mode; to access this help file, click the question mark button.
Status Bar
The status bar (Label 9) displays status updates such as Analysis
Completed, Reset Completed, and Configuring Demo Mode
during software use, as well as the software version and the
Busy indicator.
3
AD7124-4 EVAL+ Software
UG-855
supports a number of demo
AD7124-4 for
5
