UG-855
6.

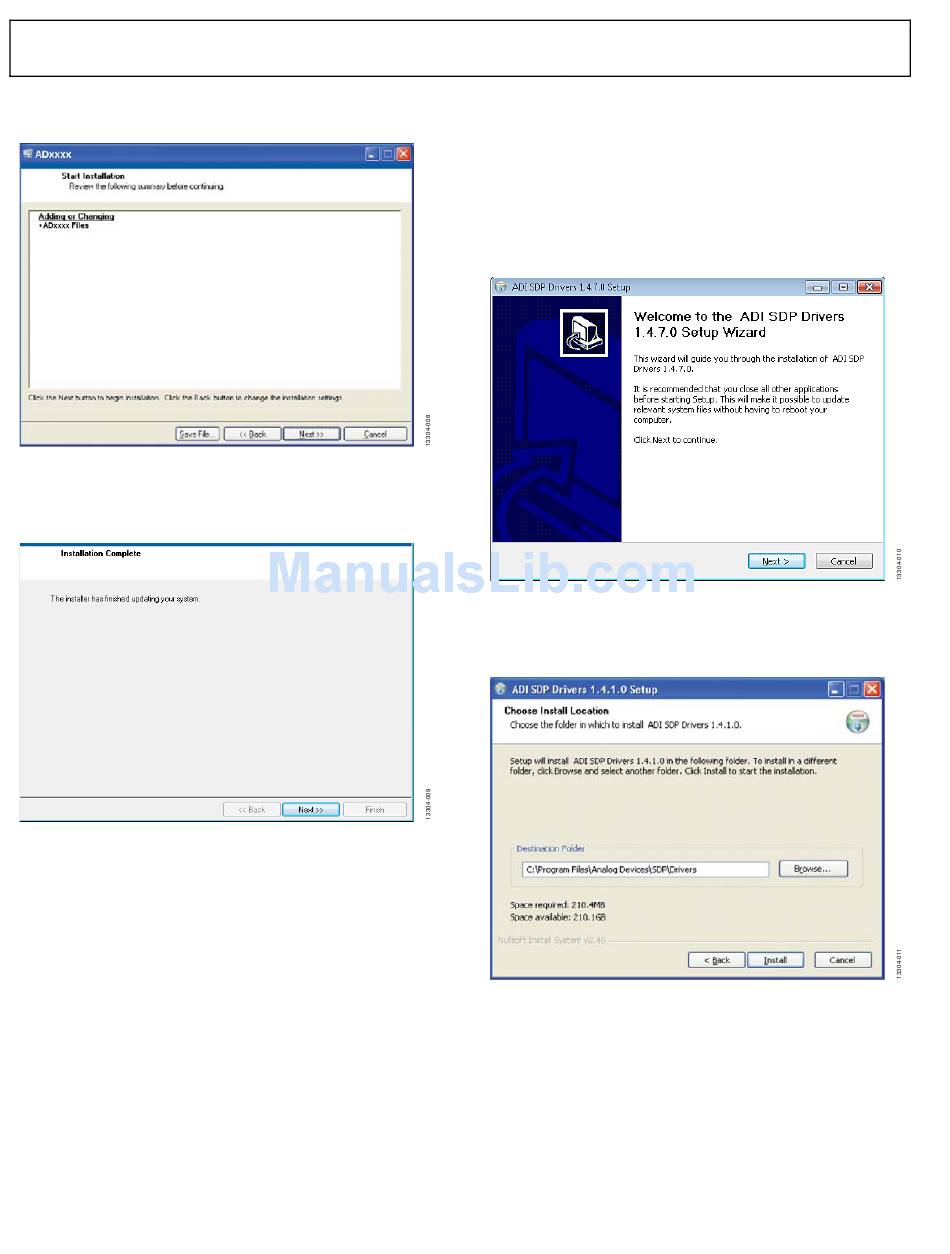

A summary of the installation displays. Click Next to
continue.
Figure 8.
AD7124-4 EVAL+ Software
Reviewing a Summary of the Installation
7.
The message in Figure 9 appears when the installation is
complete. Click Next.
Figure 9.
AD7124-4 EVAL+ Software
Indicating When the Installation Is Complete
Installation:
Installation:
Rev. 0 | Page 10 of 29
EVAL-AD7124-4SDZ User Guide
Installing the
EVAL-SDP-CB1Z
Platform Board Drivers
After the installation of the evaluation software is complete, a
welcome window displays for the installation of the SDP board
drivers.
1.
With the
EVAL-SDP-CB1Z
the USB port of the PC, make sure that all other
applications are closed, and then click Next.
Figure 10.
EVAL-SDP-CB1Z
Beginning the Drivers Installation
2.
Select the location to install the drivers, and then click
Next.
Figure 11.
EVAL-SDP-CB1Z
Selecting the Location for Drivers Installation
System Demonstration
board still disconnected from
Drivers Setup:
Drivers Setup:
