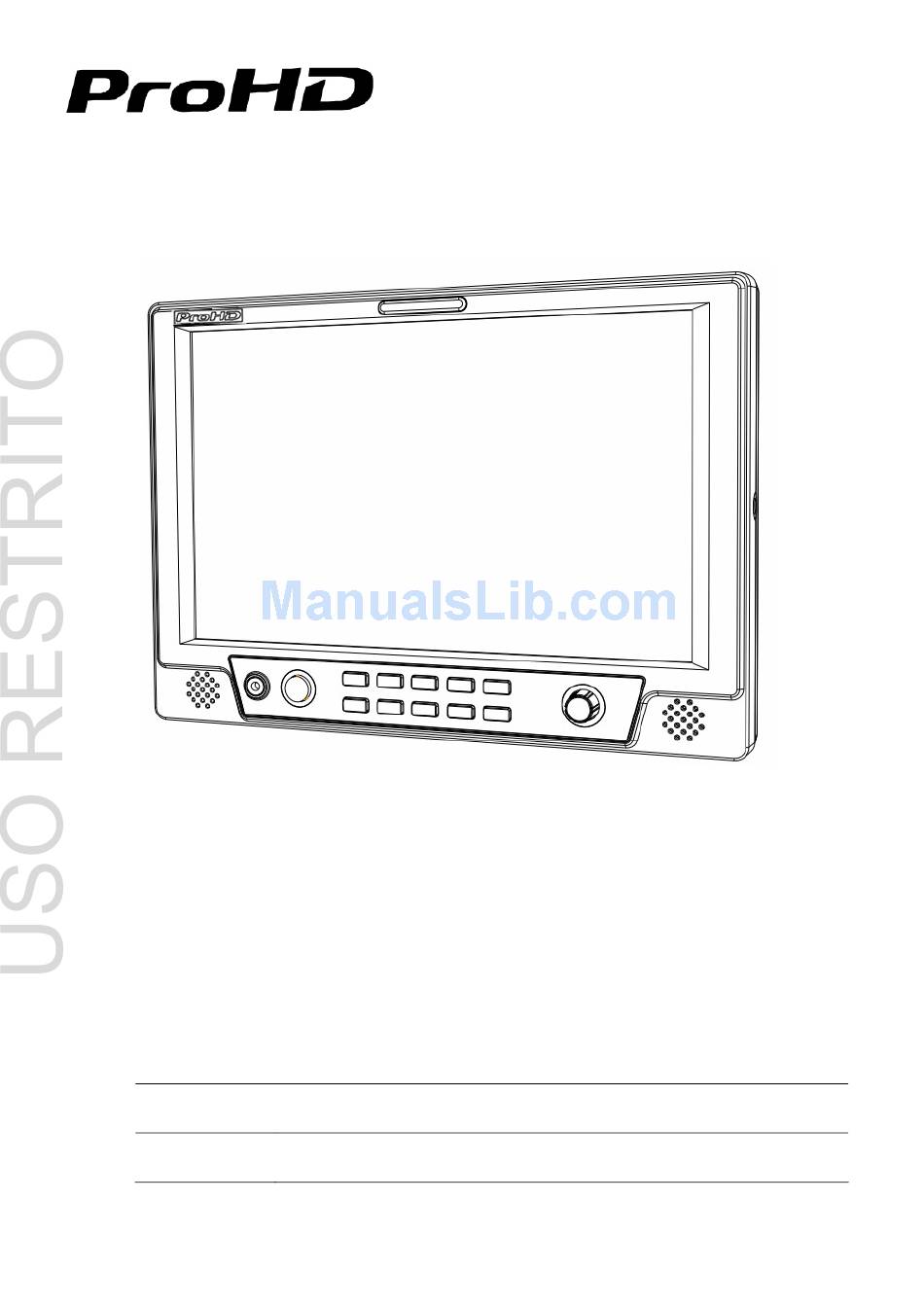

Page 1: User Manual
9" Portable On-camera LCD Monitor User Manual DT-X91F Model: HDSDI&HDMI, Waveform, Audio meter, Focus assist DT-X91H 3GSDI&HDMI DT-X91C HDMI... - Page 2 ． properties of their respective owners. ． Due to constant effort of product development, SWIT Electronics reserves the right to make changes and improvements to the product described in this manual without prior notice. ． The warranty period of this product is 2 years, and does not cover the following: (1) Physical damage to the surface of the products, including scratches, cracks or other damage to the LCD screen or other externally exposed parts;...
-
Page 3: Maintenance
Maintenance Monitor 1. Please keep the signal terminals and the cooling vent away from knife-edge, metal or liquid in order to avoid short-circuit and damage. 2. Please don't try to disassemble any parts of the monitor by yourself, which would probably damage the monitor and do harm to human body, and it will cause the invalidation of product warranty. - Page 4 1. Features DT-X91F ◆ ◆ ◆ ◆ High resolution 9” LCD Panel ◆ ◆ ◆ ◆ Peaking focus assist (red/blue switch) 16:9, 1280×800, 16.77 million colors The Peaking focus assist function is to mark the ◆ ◆ ◆ ◆ Multiple inputs sharpest edges of the image with red or blue color, 2 HD/SD-SDI, 1 HDMI and 1 Composite input.
- Page 5 DT-X91H ◆ ◆ ◆ ◆ High resolution 9” LCD Panel ◆ ◆ ◆ ◆ DSLR scale zoom in 16:9, 1280×800, 16.77 million colors The Canon DSLR outputs the CMOS sensor ratio 3Gbps SDI support HDMI and this zoom in mode can make the ◆...

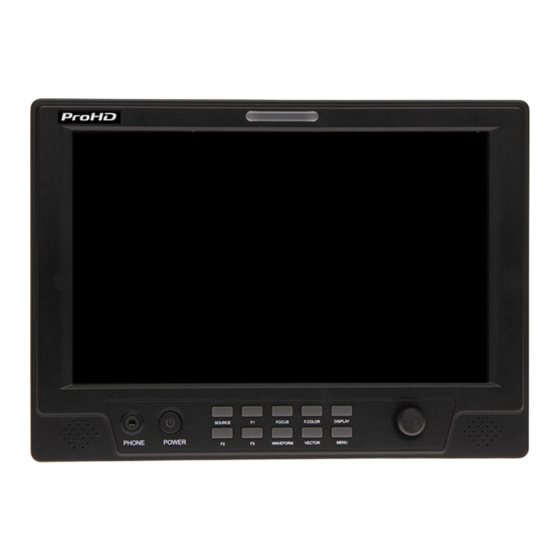

- Page 6 2. Panel Instruction DT-X91F Front view ⑴ PHONE: Earphone jack, for SDI embedded audio, HDMI embedded audio monitoring ⑵ POWER: Power on/off Connect with power cable, press the “POWER” and the power indicator is turned on and the monitor will be switched on and get into normal working status. Press the “POWER” again, the indicator is turned off and monitor is switched off.
- Page 7 Rear view ⑴ DC 12V IN: Connect with DC12V 4-pin XLR power adapter. ⑵ TALLY Light: Red, Green and Yellow 3-color TALLY indicator ⑶ Battery mount: Connect with SSL-JVC50 battery (optional) to power the monitor. ⑷ SDI-OUT: HDMI converted to SDI output (BNC connector) ⑸...
- Page 8 DT-X91H Front view ⑴ PHONE: Earphone jack, for SDI embedded audio, HDMI embedded audio and analog audio monitoring ⑵ POWER: Power on/off Connect with power cable, press the “POWER” and the power indicator is turned on and after 10 seconds, the monitor will be switched on and get into normal working status. Press the “POWER” again, the indicator is turned off and monitor is switched off.
- Page 9 Rear view ⑴ DC 12V IN: Connect with DC12V 4-pin XLR power adapter. ⑵ Battery mount: Connect with SSL-JVC50 battery (optional) to power the monitor. ⑶ CVBS IN: Composite video input (BNC connector) ⑷ SDI-LOOP: 3G/HD/SD-SDI loop through output (BNC connector) ⑸...
- Page 10 DT-X91C Front view ⑴ PHONE: Earphone jack, for HDMI embedded audio and analog audio monitoring ⑵ POWER: Power on/off Connect with power cable, press the “POWER” and the power indicator is turned on and after 10 seconds, the monitor will be switched on and get into normal working status. Press the “POWER” again, the indicator is turned off and monitor is switched off.
- Page 11 Rear view ⑴ DC 12V IN: Connect with DC12V 4-pin XLR power adapter. ⑵ Battery mount: Connect with SSL-JVC50 battery (optional) to power the monitor. ⑶ CVBS IN: Composite video input (BNC connector) ⑷ HDMI-LOOP: HDMI loop through output ⑸ HDMI-IN: HDMI input ⑹...
- Page 12 3. Menu Operation Press “MENU” and it will display menu system Revolve “OK” to select an item. The selected item will be highlighted display. Press “OK” to enter the selected item. Under menu system, press “MENU” to back to previous menu. The menu will automatically save and quit if it remains idle.
- Page 13 6. OSD Settings Submenu The OSD Settings Submenu includes: ⑴ LANGUAGE: Menu language English / Chinese selection ⑵ H-POSITION: Menu horizontal position (0-100) adjustment, real-time preview, default value: 50, center. ⑶ V-POSITION: Menu vertical position (0-100) adjustment, real-time preview, default value: 50, center. ⑷...
- Page 14 9. FUNCTION KEY Settings Submenu The F KEY Settings Submenu is to define Function Keys on the front keyboard. The DT-X91F has 3 function keys: F1, F2 and F3; The DT-X91H and DT-X91C has 2 function keys: F1 and F2. The available function items of each model are: -------------------DT-X91F------------------- -------------------DT-X91H-------------------...
- Page 15 10. Specifications LCD Performance Size 9.0 inches Resolution 1280 × R GB × 8 00 Aspect ratio 16:9/4:3 Color system NTSC/PAL Brightness 250cd/m Contrast 700:1 Color 16.77 million colors Viewing angle H/V:140/120 Video Format 1080p (60 / 59.94 / 50) SMPTE-425M ** 1080i (60 / 59.94 / 50) SMPTE-274M...
- Page 16 This model is manufactured, warranted and supported by SWIT Electronics Co., Ltd. / SWIT Electronics USA, LLC, and distributed in North America by JVC Professional Video Products. To obtain service or for further information, please contact: SWIT Electronics USA, LLC.
