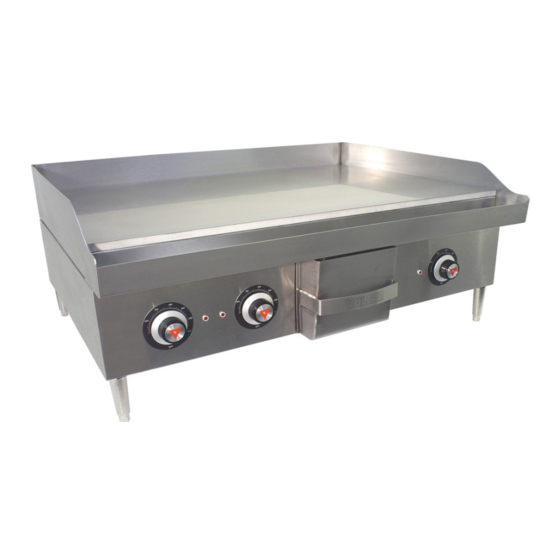

ELECTRIC GRIDDLES
MODEL
RRE24D
RRE36D
RRE48D
RRE60D
RRE72D
For additional information on Vulcan-Hart or to locate an authorized
parts and service provider in your area, visit our website at www.vulcanhart.com
VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.VULCANHART.COM
REPLACEMENT PARTS
P.O. BOX 696, LOUISVILLE, KY 40201-0696
CATALOG OF
RRE36 Model
TEL. (800) 814-2028
FORM 37134 (12-08)
Advertisement
Related Manuals for Vulcan-Hart RRE24D
Summary of Contents for Vulcan-Hart RRE24D
-
Page 1: Replacement Parts
MODEL RRE24D RRE36D RRE48D RRE60D RRE72D For additional information on Vulcan-Hart or to locate an authorized parts and service provider in your area, visit our website at www.vulcanhart.com VULCAN-HART DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC WWW.VULCANHART.COM CATALOG OF REPLACEMENT PARTS RRE36 Model P.O. - Page 2 REPLACEMENT PARTS RRE MODEL ELECTRIC GRIDDLES 23-24-25 9-10 11-12 20-21 16 THRU19 Figure 1 – 2 –...
-
Page 3: Replacement Parts List
ILLUS. PART Figure 1 00-351360-00001 Heating Unit (208V) (RRE24D/36D/48D/60D/72D) (2 Per Foot) ... AR 00-351360-00002 Heating Unit (240V) (RRE24D/36D/48D/60D/72D) (2 Per Foot) ... AR 00-351360-00003 Heating Unit (480V) (RRE24D/36D/48D/60D/72D) (2 Per Foot) ... AR 00-342027-00008 Thermostat -Control ... AR SC-113-80... - Page 4 REPLACEMENT PARTS RRE MODEL ELECTRIC GRIDDLES PART 00-351360-00001 Heating Element (208V) ( D Units) ... 2 00-351360-00002 Heating Element (240V) ( D Units) ... 2 00-351360-00003 Heating Element (480V) ( D Units) ... 2 00-342027-00008 Thermostat ... 2 00-824277 Thermostat Knob ... 2 00-342575-00001 Indicator Light (208/ 240V) ...
