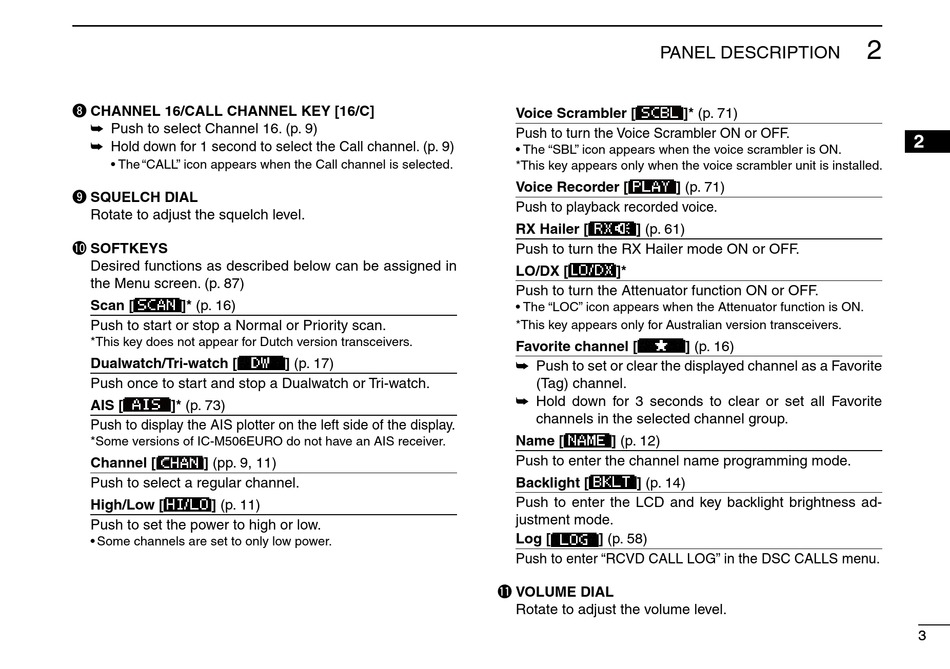

Icom IC-M506EURO Instruction Manual page 9

i CHANNEL 16/CALL CHANNEL KEY [16/C]
➥ Push to select Channel 16. (p. 9)
➥ Hold down for 1 second to select the Call channel. (p. 9)
• The "CALL" icon appears when the Call channel is selected.
o SQUELCH DIAL
Rotate to adjust the squelch level.
!0 SOFTKEYS
Desired functions as described below can be assigned in
the Menu screen. (p. 87)
Scan [ ]* (p. 16)
Push to start or stop a Normal or Priority scan.
*This key does not appear for Dutch version transceivers.
Dualwatch/Tri-watch [
Push once to start and stop a Dualwatch or Tri-watch.
AIS [ ]* (p. 73)
Push to display the AIS plotter on the left side of the display.
*Some versions of IC-M506EURO do not have an AIS receiver.
Channel [ ] (pp. 9, 11)
Push to select a regular channel.
High/Low [ ] (p. 11)
Push to set the power to high or low.
• Some channels are set to only low power.
] (p. 17)
PANEL DESCRIPTION
Voice Scrambler [
Push to turn the Voice Scrambler ON or OFF.
• The "SBL" icon appears when the voice scrambler is ON.
*This key appears only when the voice scrambler unit is installed.
Voice Recorder [ ] (p. 71)
Push to playback recorded voice.
RX Hailer [ ] (p. 61)
Push to turn the RX Hailer mode ON or OFF.
LO/DX [ ]*
Push to turn the Attenuator function ON or OFF.
• The "LOC" icon appears when the Attenuator function is ON.
*This key appears only for Australian version transceivers.
Favorite channel [
Push to set or clear the displayed channel as a Favorite
➥
(Tag) channel.
➥ Hold down for 3 seconds to clear or set all Favorite
channels in the selected channel group.
Name [ ] (p. 12)
Push to enter the channel name programming mode.
Backlight [ ] (p. 14)
Push to enter the LCD and key backlight brightness ad-
justment mode.
Log [ ] (p. 58)
Push to enter "RCVD CALL LOG" in the DSC CALLS menu.
!1 VOLUME DIAL
Rotate to adjust the volume level.
]* (p. 71)
] (p. 16)
