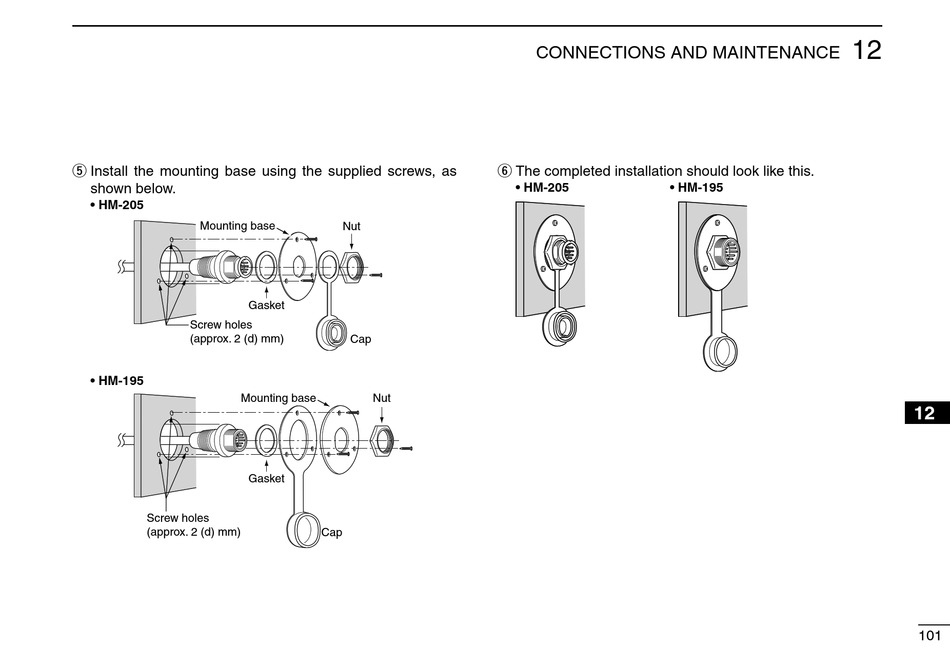

Install the mounting base using the supplied screws, as
t
shown below.
• HM-205
Mounting base
Gasket
Screw holes
(approx. 2 (d) mm)
• HM-195
Mounting base
Gasket
Screw holes
(approx. 2 (d) mm)
y
Nut
Cap
Nut
Cap
CONNECTIONS AND MAINTENANCE
The completed installation should look like this.
• HM-205
• HM-195
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
101
