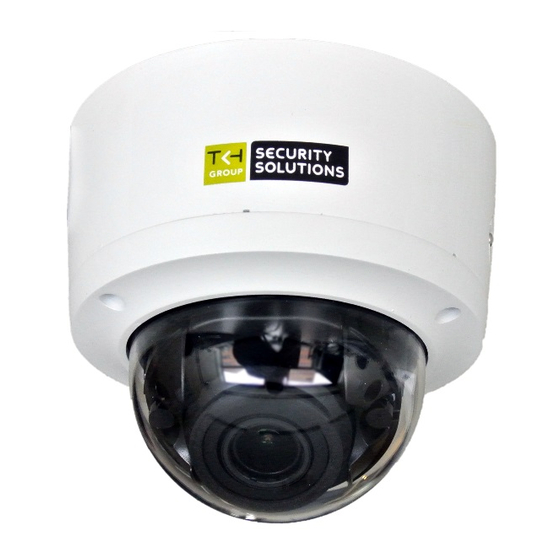

Siqura FD2005M1-EI Quick Start Manual

FD2005M1-EI
5MP Fixed Dome Camera
Quick Start Guide
Unpack
Mounting Plate
CAT-6 RJ45 conduit
Camera Unit
Pin Pusher
Security Torx
Note 1: Subject to modification. Actual product and accessories may differ in appearance.
Reset & Micro SD
Figure 2 Reset button & Micro SD
Note 2: Press and hold the reset button for 10 seconds to power on or reboot. It will restore
the factory default setting including IP address, user name and password.
© Siqura B.V. 2020
Vision 1.1 (28052020)
FD2005M1-EI QSG
Find additional manuals, the datasheet,
the EU Declaration of Conformity, and
the latest firmware for this product at:
Siqura.com/downloads/software
CAUTION:
INSTALLATION SHALL BE PERFORMED BY QUALIFIED PERSONNEL ONLY.
INSTALLATION SHALL BE IN ACCCORDANCE WITH LOCAL PROCEDURES.
INSTALLATION WITH POE SHALL BE IN UNEXPOSED NETWORKS.
BATTERY REPLACEMENT SHALL NOT BE APPLIED IN VIEW OF THE RISK OF
EXPLOSION.
Duster
IF YOU USE AN EXTERNAL POWER SUPPLY, CONTACT SIQURA TO MAKE SURE
THAT THE POWER SUPPLY HAS THE PROPER POWER SPECIFICATIONS.
MAKE SURE THAT THE POWER SUPPLY COMPLIES WITH LPS REQUIREMENTS.
WHEN INSTALLING THE CAMERA, HOOK UP THE CAMERA WITH THE ANTI-DROP
CHAIN OF THE PENDANT TO THE ANTI-DROP RING (SEE FIGURE 1). FOR MORE
Screws(4x) & Plastic INFORATION, CONTACT SIQURA.
Screw Anchors (4x)
NOTE:
IT IS NOT RECOMMENDED TO CONTINUOUSLY (24/7) RECORD WITH THE MICRO
SD CARD, AS THE CAMERA MAY NOT SUPPORT LONG-TERM CONTINOUS DATA
Quick Start Guide
READ/WRITE. CONTACT THE MANUFACTURER OF THE MICRO SD CARD FOR
INFORMATION REGARDING THE RELIABILITY AND THE LIFE EXPECTANCY.
Installation Notices
Adjust to Good View
Connectors
Alarm I/O Audio I/O 12 Vdc
RJ-45
802.3af PoE
Accessing the camera - DHCP Server
DHCP
Network Switch
IP = 10.x.y.z
IP = 10.x.y.z
DHCP Server
IP = 10.x.y.z
