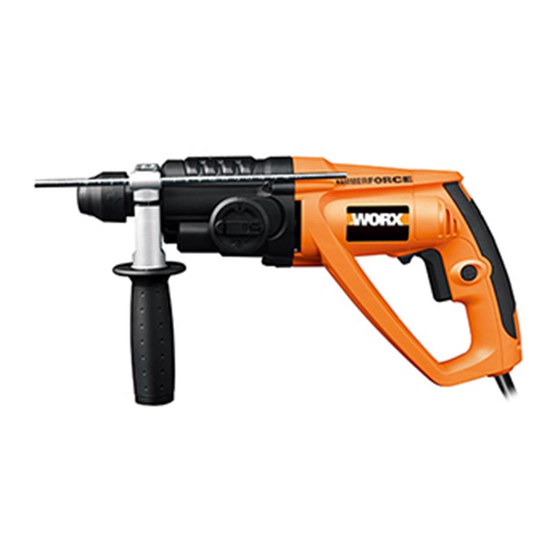

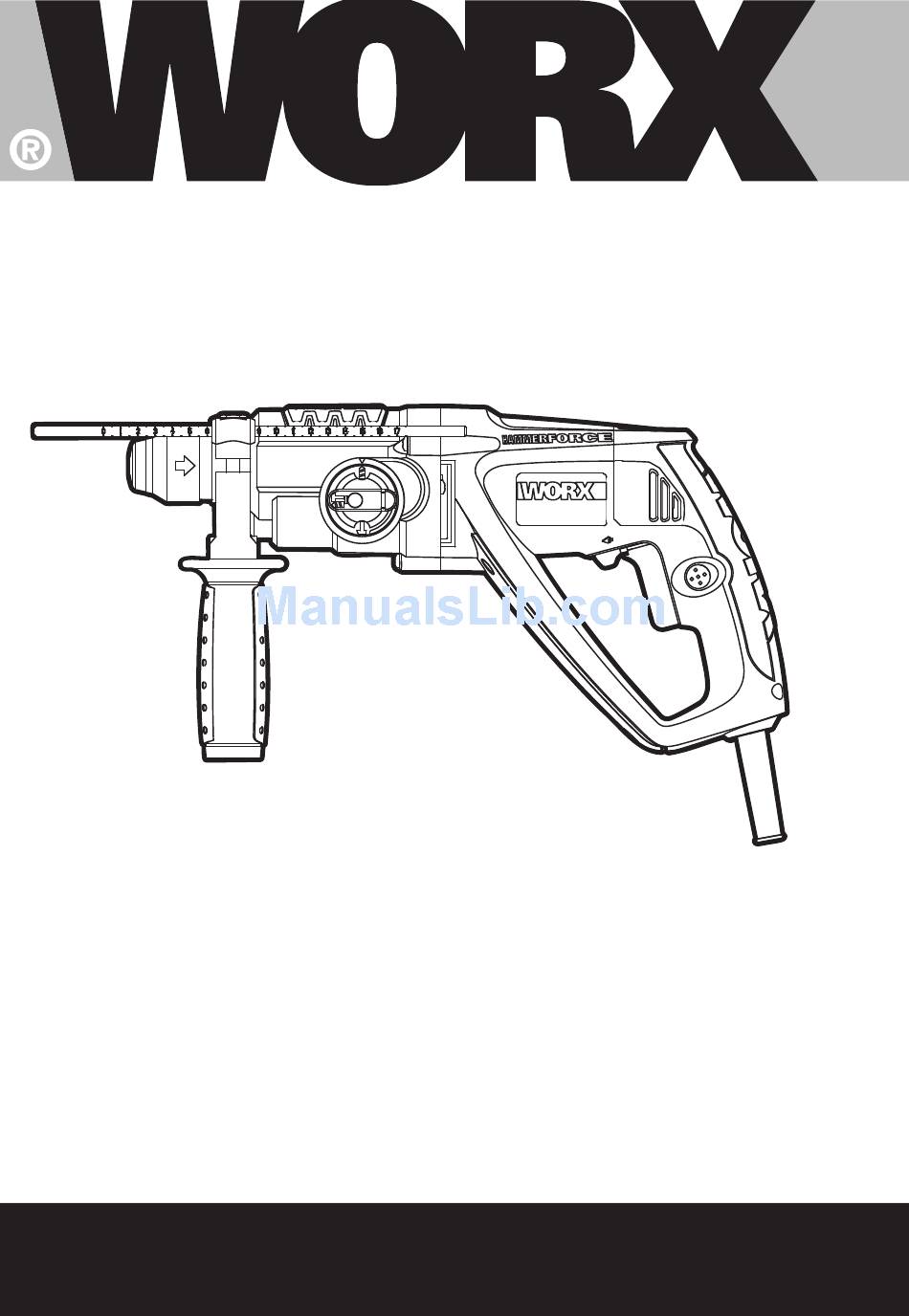

- Page 1 SAFETY AND OPERATING MANUAL ORIGINAL INSTRUcTIONS Rotary hammer WX338...
-
Page 2: General Power Tool Safety Warnings
When operating a power tool connected and properly used. Use of outdoors, use an extension cord dust collection can reduce dust-related suitable for outdoor use. Use of a cord hazards. Rotary hammer WX338... - Page 3 Always use the auxiliary a qualified repair person using only handles supplied with the tool. Loss of identical replacement parts. This will control can cause personal injury. ensure that the safety of the power tool is maintained. Rotary hammer WX338...
- Page 4 Double insulation Wear eye protection Wear ear protection Wear dust mask Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. Rotary hammer WX338...
- Page 5 4. SWITCH LOCK-ON BUTTON 5. ON/OFF SWITCH 6. FORWARD AND REVERSE ROTATION LEVER 7. FUNCTION MODE SELECTION SWITCH 8. AUXILIARY HANDLE 9. SDS-PLUS TYPE CHUCK * Not all the accessories illustrated or described are included in standard delivery. Rotary hammer WX338...
-
Page 6: Technical Data
TEcHNIcAL DATA Type WX338 (330~359-designation of machinery, representative of rotary hammer drill) Voltage 230-240V~50/60Hz Power input 650W No-load speed 0-1050/min Impact rate 0-4600bpm Impact energy 2.0J Masonry 20mm Drilling capacity max Wood 13mm Steel 30mm Protection class Machine weight 2.3kg NOISE AND VIBRATION DATA When tested at hammer &... - Page 7 Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice. Rotary hammer WX338...
-
Page 8: Operation
· REMOVING (See Fig. B) Retract back the Bit Holder Locking Sleeve (3) and pull out the bit. WARNING: Your new WORX Rotary Hammer Drill generates powerful forces to get your job done quickly and effectively. These forces may cause inferior quality SDS bits to break and jam in the chuck. - Page 9 For screw driving, drilling into steel, wood and plastics choose the Rotary drilling position. For impacting only - for light chipping, chiseling and demolition applications choose the Hammer position. WARNING: The operating mode selection switch may be actuated only at a standstill. Rotary hammer WX338...
-
Page 10: Maintenance
Brown L (live) (neutral) ENVIRONMENTAL PROTEcTION Outer sleeve Cable grip Waste electrical products should not firmly clamped be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. Rotary hammer WX338... -
Page 11: Declaration Of Conformity
Positec Power Tools (Europe) Ltd, PO Box 152, Leeds, LS10 9DS, UK Declare that the product, Description WORX Rotary hammer Type WX338 (330~359-designation of machinery, representative of rotary hammer drill) Function Hammering various materials Complies with the following Directives,... - Page 12 Copyright © 2013, Positec. All Rights Reserved. 2PDH19APK11001A2...
