CODELOCKS CL1000 Installation Instructions page 2

FITTING INSTRUCTIONS
The Cabinet Lock can be fitted to:
A) C upboards, cabinets and lockers etc as a direct replacement for
existing cam locks.
B) I t can also be easily fitted to cupboards and cabinets that do not
have an existing locking device.
2

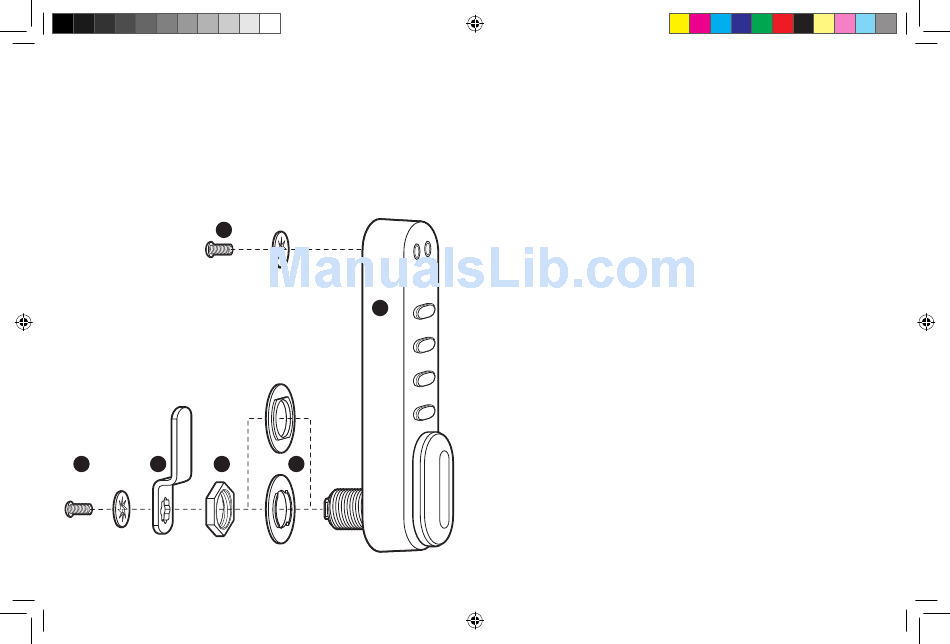

1 Cabinet Lock
2 Upper fixing bolt x 2
3 Packer pieces x 2
4 Locking nut
5 Cams x 2
6 Cam fixing bolt
• Batteries – 2 x 1.5V AAA
• Template x 1
6 5 4
tp2CLInstallInstructionsRIGHTH.i3-4 3-4
1
3
SPECIAL NOTES
• B efore installing the lock, load the batteries and familiarise yourself
with the operation and programming.
• T he handle will not turn until you enter the factory default
Master Code 55 44 33 22 OR the User Code 00 99.
• P lease see programming guide to set your own codes.
INSTALLATION GUIDE
A) Replacing existing cam lock with
the Cabinet Lock
Step 1 Remove existing cam lock.
Step 2 P lace template over hole left by cam lock and mark
upper fixing hole.
Step 3 D rill the 6mm ( 1 / ") upper fixing hole.
4
Step 4 F it the Cabinet Lock to the door by passing the spindle
through the 16mm (
Step 5 I f required, from the inside of the door, pass either of the
packing pieces over the spindle to centralise the lock.
Step 6 N ow secure the lock by threading the large nut onto
the spindle.
Step 7 F it one of the upper fixing bolts to suit your
door thickness.
Step 8 T ighten the lower fixing nut and upper bolt.
/ ") hole.
5
8
