11 SERVICE WORK ON THE CHASSIS
11.14

Adjusting the chain tension

Warning
Danger of accidents Danger caused by incorrect chain tension.
–
If the chain is too taut, the components of the secondary power transmission (chain, engine sprocket, rear sprocket, bearings in
the transmission and in the rear wheel) will be under additional load. In addition to premature wear, this can cause the chain
or the countershaft of the transmission to break in extreme cases. If the chain is too loose, however, it may fall off the engine
sprocket or rear sprocket and block the rear wheel or damage the engine. Ensure that the chain tension is correct and adjust it
if necessary.
–
Lean the motorcycle on the side stand.
–
Shift into neutral.
–

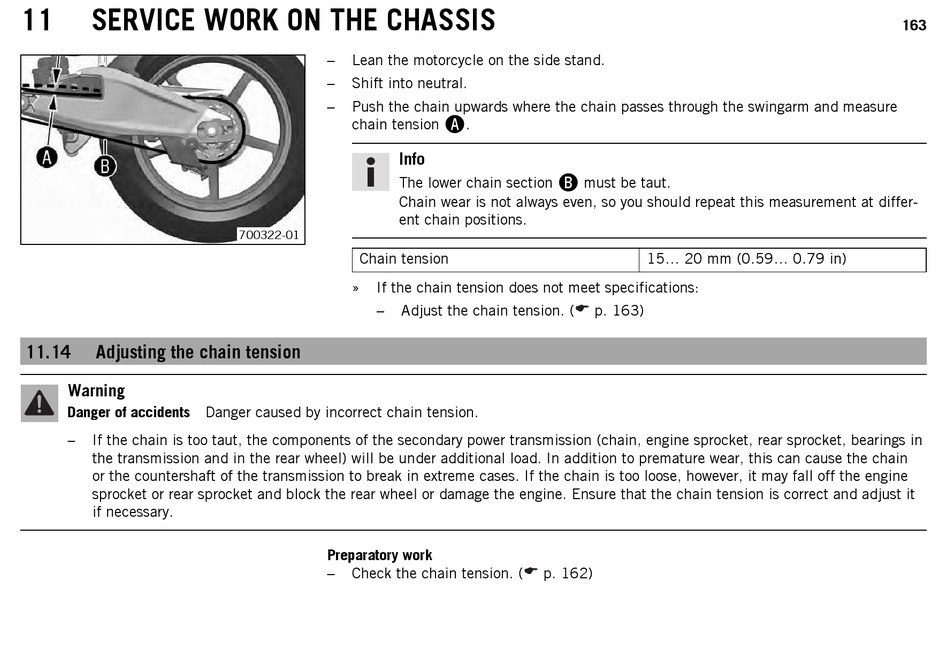

Push the chain upwards where the chain passes through the swingarm and measure
chain tension
Info
The lower chain section
Chain wear is not always even, so you should repeat this measurement at differ-
ent chain positions.
700322-01
Chain tension
» If the chain tension does not meet specifications:
–
Adjust the chain tension. (
Preparatory work
–
Check the chain tension. (

.

must be taut.
p. 163)
p. 162)
15... 20 mm (0.59... 0.79 in)
163
