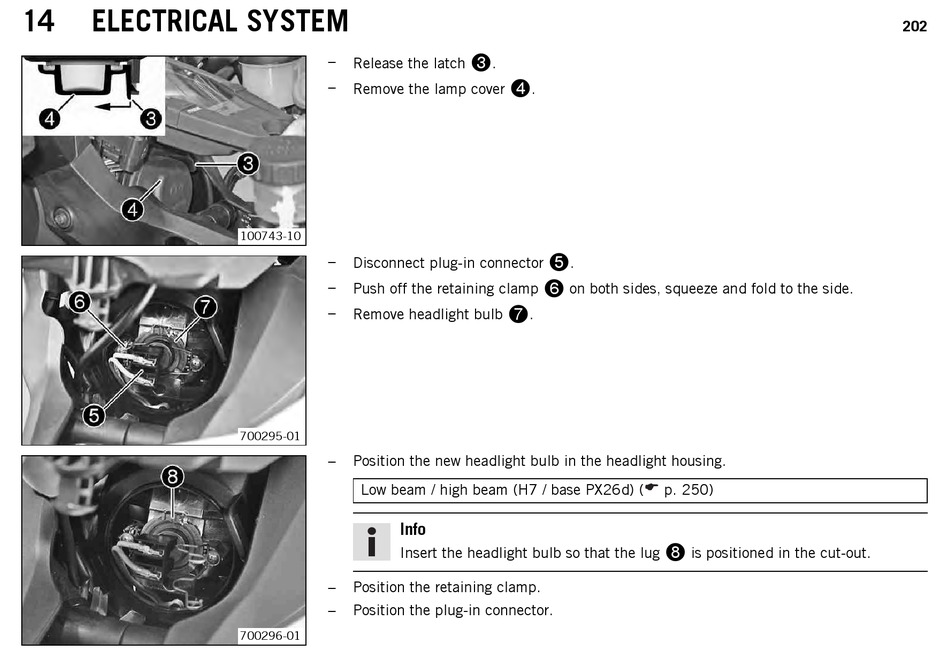

14 ELECTRICAL SYSTEM
–
Release the latch
–
Remove the lamp cover
100743-10
–
Disconnect plug-in connector
–
Push off the retaining clamp
–
Remove headlight bulb
700295-01
–
Position the new headlight bulb in the headlight housing.
Low beam / high beam (H7 / base PX26d) (
Info
Insert the headlight bulb so that the lug
–
Position the retaining clamp.
–
Position the plug-in connector.
700296-01
 .

.

.

on both sides, squeeze and fold to the side.
 .
p. 250)
 is positioned in the cut-out.
