10

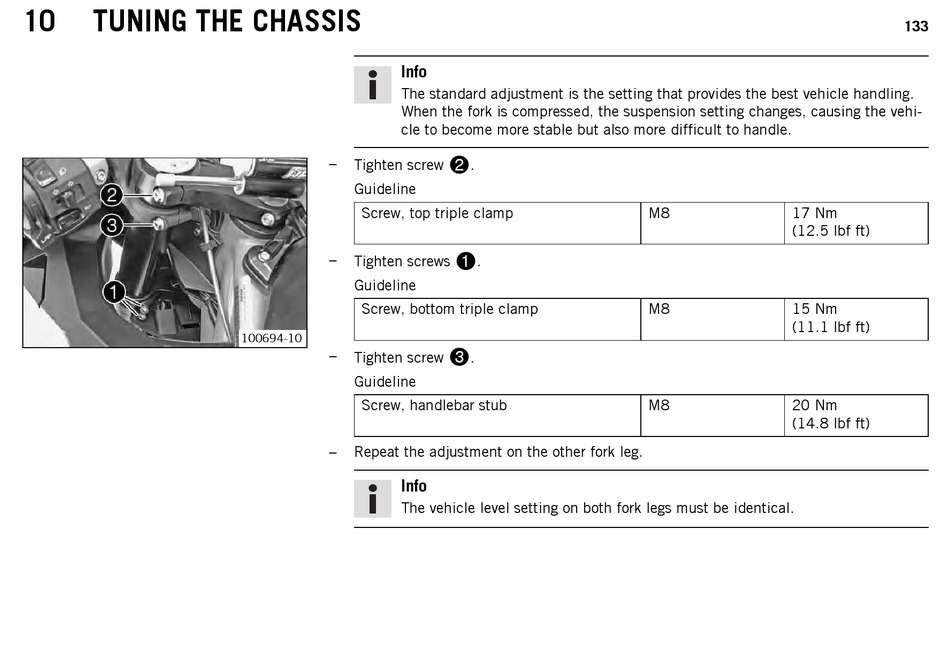

TUNING THE CHASSIS
Info
The standard adjustment is the setting that provides the best vehicle handling.
When the fork is compressed, the suspension setting changes, causing the vehi-
cle to become more stable but also more difficult to handle.
–
Tighten screw
Guideline
Screw, top triple clamp
–
Tighten screws
Guideline
Screw, bottom triple clamp
100694-10
–
Tighten screw
Guideline
Screw, handlebar stub
–
Repeat the adjustment on the other fork leg.
Info
The vehicle level setting on both fork legs must be identical.
.
.
.
M8
17 Nm
(12.5 lbf ft)
M8
15 Nm
(11.1 lbf ft)
M8
20 Nm
(14.8 lbf ft)
133
